LA260A-GBGF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

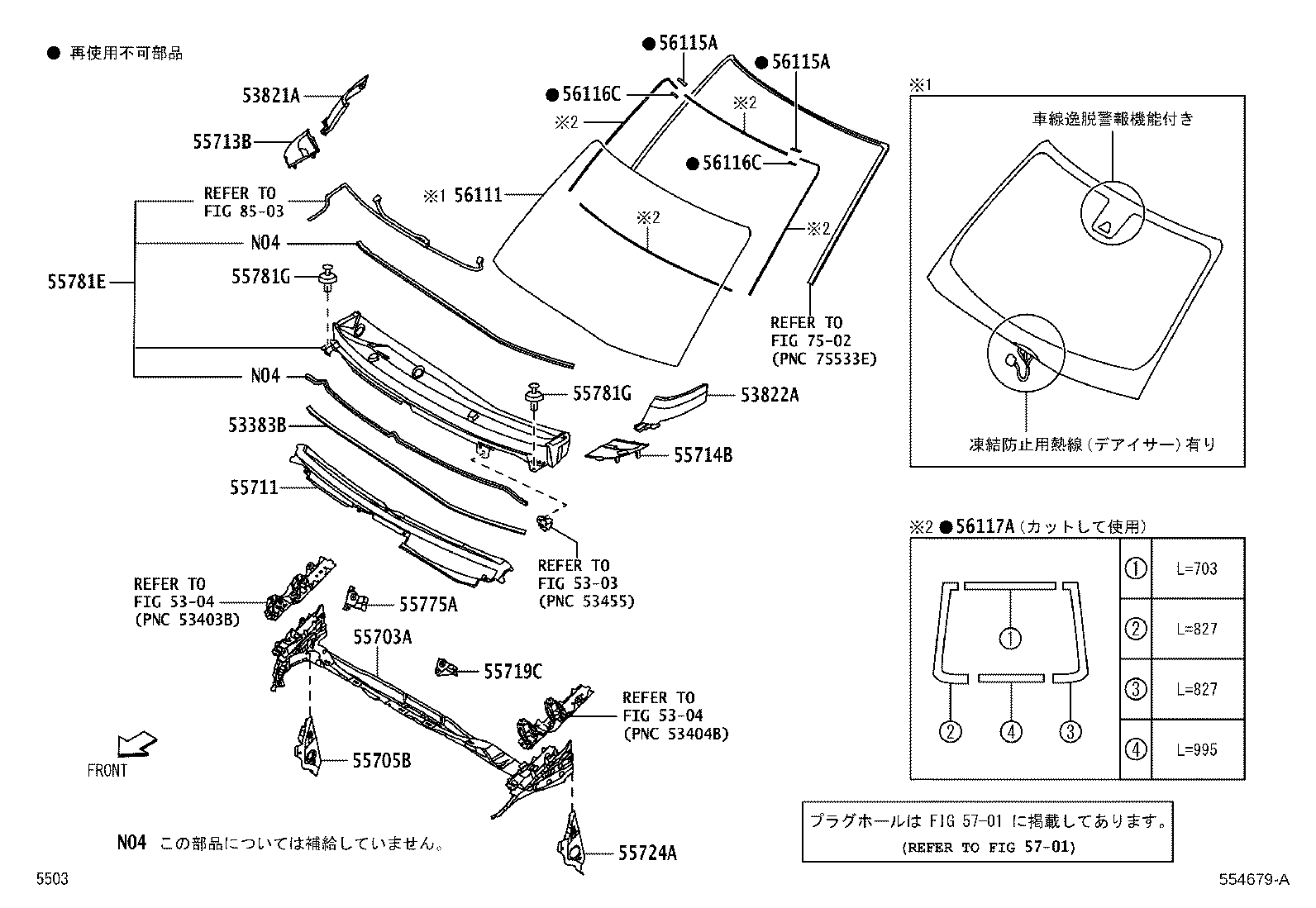

Click highlighted areas on diagram

diagram 5303 5304 5304 53383B 53821A 53822A 55703A 55705B 55711 55713B 55714B 55719C 55724A 55775A 55781E 55781G 55781G 56111 56115A 56115A 56116C 56116C 56117A 5701 7502 8503
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-B2160

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
61991-B2030

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ｸﾘｯﾌﾟ付き

 1
53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
61992-B2030

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ｸﾘｯﾌﾟ付き

 1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-B2480

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55706-B2170

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55711 - PANEL, COWL TOP, OUTER
55701-B2290

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
53445-B2260

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
53446-B2260

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55719C - BRACKET, WINDSHIELD WIPER MOTOR
55747-B2200

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55724A - REINFORCEMENT, COWL TOP SIDE, LH
55724-B2170

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55775A - RETAINER, WINDSHIELD WIPER SHAFT
55774-B2260

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-B2280

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67569

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67569

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
56111 - GLASS, WINDSHIELD
56101-B2200

LA250,260

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ−UV+ﾃﾞｱｲｻ,ｽﾏｰﾄ ｱｼｽﾄ ﾌﾞﾗｹｯﾄ 付き

 1
56101-B2150

LA250,260

ｽﾏｰﾄ ｱｼｽﾄ ﾌﾞﾗｹｯﾄ 付き

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-B2211

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

長さ=3352

 1
