LA260A-GBGF (2016)
Toyota Pixis Joy

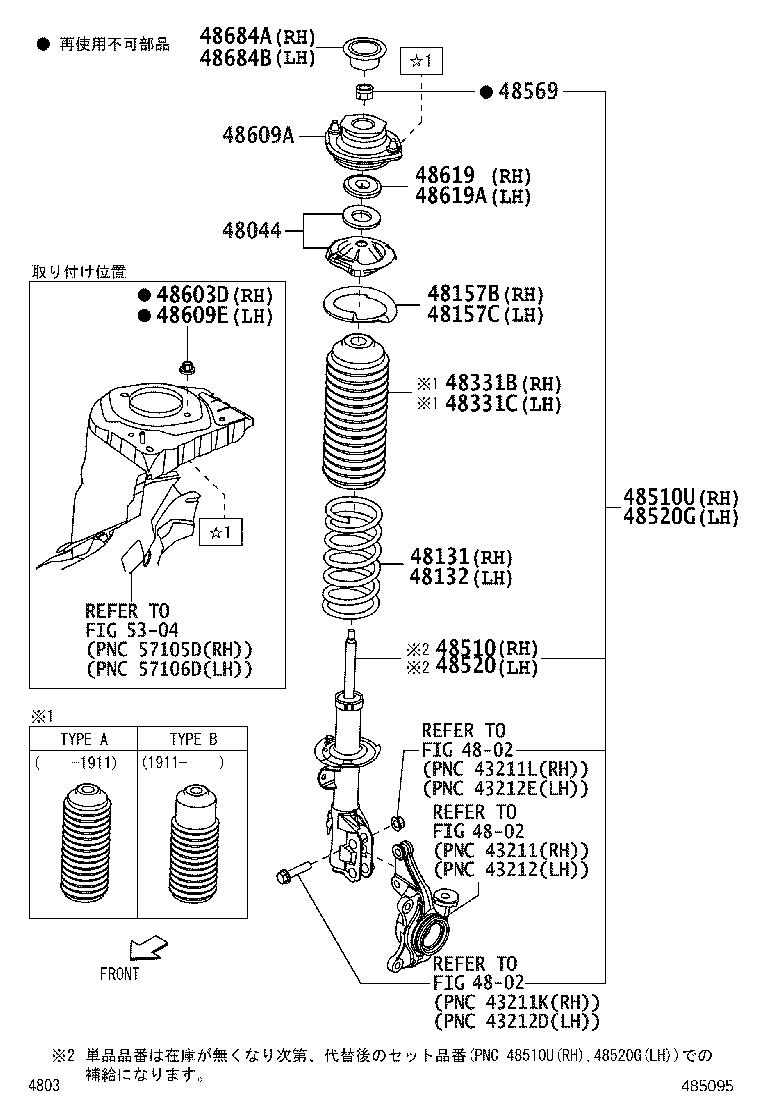

ILLUST NO. 1 OF 2(1609- )
ILLUST NO.1 OF 2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-B2010 |
LA250,260 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-B2F10 |
LA260..CG,CGT,CX |
1 | ||
| 48131-B2D80 |
LA260..FG,FGT,FX,S |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-B2D80 |
LA260..FG,FGT,FX,S |
1 | ||
| 48131-B2F10 |
LA260..CG,CGT,CX |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-B2010 |
LA250,260 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-B2010 |
LA250,260 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-B2060 |
LA250,260 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-B2060 |
LA250,260 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-B2E50 |
LA260..FG,FGT,FX,S ﾏｰｸ 48510−B2E50 |
1 | ||
| 48510-B2E40 |
LA260..CG,CGT,CX ﾏｰｸ 48510−B2E40 |
1 | ||
| 48510U - ABSORBER SET, SHOCK, FRONT RH | ||||
| 48510-B9055 |
LA260..FG,FGT,FX,S ﾏｰｸ 48510−B2E50 |
1 | ||
| 48510-B9050 |
LA260..CG,CGT,CX ﾏｰｸ 48510−B2E40 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-B2E40 |
LA260..CG,CGT,CX ﾏｰｸ 48520−B2E40 |
1 | ||
| 48520-B2E50 |
LA260..FG,FGT,FX,S ﾏｰｸ 48520−B2E50 |
1 | ||
| 48520G - ABSORBER SET, SHOCK, FRONT LH | ||||
| 48520-B9050 |
LA260..CG,CGT,CX MARK 48520−B2E40 |
1 | ||
| 48520-B9055 |
LA260..FG,FGT,FX,S MARK 48520−B2E50 |
1 | ||
| 48569 - NUT, SHOCK ABSORBER PISTON | ||||
| 90041-77005 |
LA250,260 |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90041-79347 |
LA250,260 |
2 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-B2060 |
LA250,260 |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90041-79347 |
LA250,260 |
2 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-B2010 |
LA250,260 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-B2010 |
LA250,260 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-B2010 |
LA250,260 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-B2010 |
LA250,260 |
1 | ||
| Linked diagrams | ||||
| 4802 | ||||
| 5304 | ||||

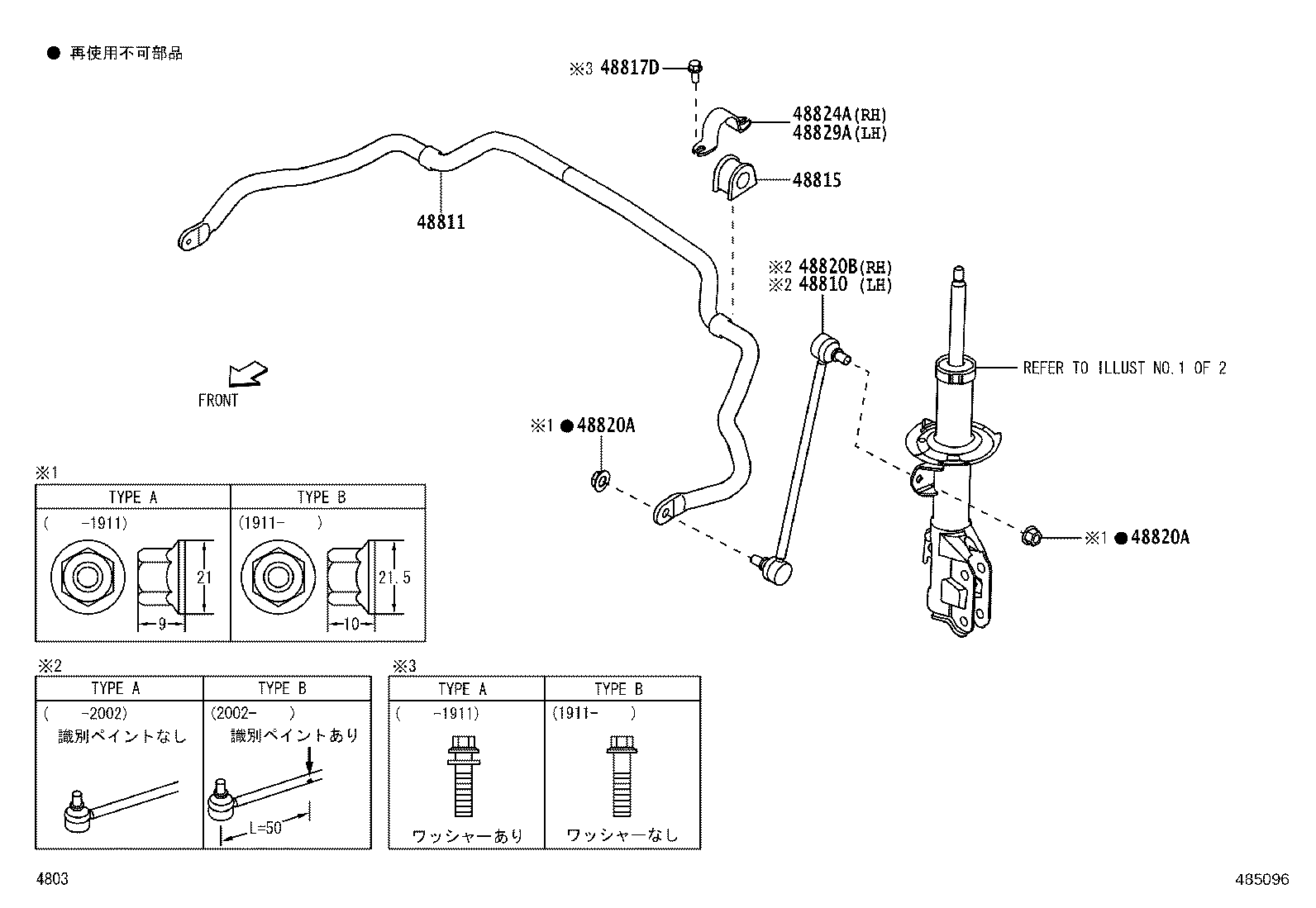

ILLUST NO. 2 OF 2(1609- )
ILLUST NO.2 OF 2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-B2011 |
LA250,260 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-B2070 |
LA260 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-B2140 |
LA250,260 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 91671-80820 |
LA250,260 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90041-70397 |
LA250,260 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90041-70397 |
LA250,260 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-B2011 |
LA250,260 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-B2020 |
LA250,260 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-B2020 |
LA250,260 |
1 | ||
