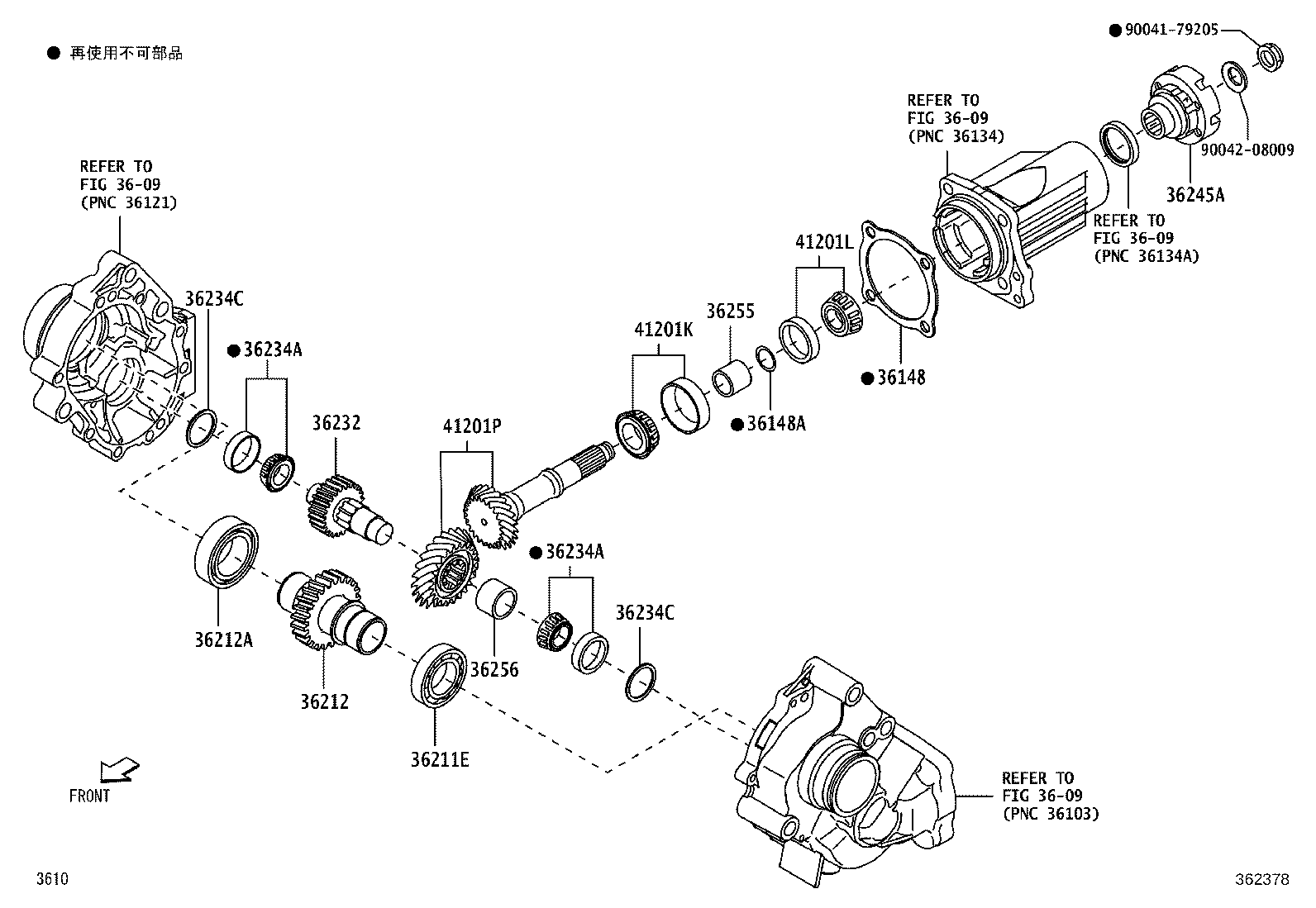

LA260A-GBGF (2016)
Toyota Pixis Joy
(1609- )LA260
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36148 - SHIM, PINION BEARING CAGE | ||||
| 90045-65125 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=0.35 |
1 | ||
| 90045-65126 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=0.40 |
1 | ||
| 90045-65123 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=0.25 |
1 | ||
| 90045-65127 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=0.45 |
1 | ||
| 90045-65122 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=0.20 |
1 | ||
| 90045-65124 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=0.30 |
1 | ||
| 36148A - SHIM, TRANSFER PINION BEARING CAGE | ||||
| 90045-64633 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.58 |
1 | ||
| 90045-64638 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.73 |
1 | ||
| 90045-64635 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.64 |
1 | ||
| 90045-64632 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.55 |
1 | ||
| 90045-64639 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.76 |
1 | ||
| 90045-64634 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.61 |
1 | ||
| 90045-64641 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.82 |
1 | ||
| 90045-64636 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.67 |
1 | ||
| 90045-64644 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.91 |
1 | ||
| 90045-64643 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.88 |
1 | ||
| 90045-64645 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.94 |
1 | ||
| 90045-64637 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.70 |
1 | ||
| 90045-64648 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.03 |
1 | ||
| 90045-64647 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.00 |
1 | ||
| 90045-64649 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.06 |
1 | ||
| 90045-64640 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.79 |
1 | ||
| 90045-64642 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.85 |
1 | ||
| 90045-64651 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.12 |
1 | ||
| 90045-64652 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.15 |
1 | ||
| 90045-64650 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.09 |
1 | ||
| 90045-64646 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.97 |
1 | ||
| 36211E - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT) | ||||
| 90043-63255 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-B1020 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90043-63268 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 36232 - GEAR, TRANSFER FRONT DRIVE | ||||
| 36233-B1010 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90043-68030 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
2 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90043-68030 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
2 | ||
| 36234C - SPACER (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90045-65091 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.72 |
1 | ||
| 90045-65092 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.75 |
1 | ||
| 90045-65093 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.78 |
1 | ||
| 90045-65097 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.90 |
1 | ||
| 90045-65102 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.05 |
1 | ||
| 90045-65096 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.86 |
1 | ||
| 90045-65095 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.84 |
1 | ||
| 90045-65105 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.14 |
1 | ||
| 90045-65106 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.17 |
1 | ||
| 90045-65108 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.23 |
1 | ||
| 90045-65098 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.93 |
1 | ||
| 90045-65107 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.20 |
1 | ||
| 90045-65099 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.96 |
1 | ||
| 90045-65112 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.35 |
1 | ||
| 90045-65104 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.11 |
1 | ||
| 90045-65109 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.26 |
1 | ||
| 90045-65113 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.38 |
1 | ||
| 90045-65103 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.08 |
1 | ||
| 90045-65100 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.99 |
1 | ||
| 90045-65101 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.02 |
1 | ||
| 90045-65111 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.32 |
1 | ||
| 90045-65110 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.29 |
1 | ||
| 90045-65094 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.81 |
1 | ||
| 36234C - SPACER (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90045-65091 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.72 |
1 | ||
| 90045-65092 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.75 |
1 | ||
| 90045-65093 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.78 |
1 | ||
| 90045-65097 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.90 |
1 | ||
| 90045-65102 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.05 |
1 | ||
| 90045-65096 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.86 |
1 | ||
| 90045-65095 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.84 |
1 | ||
| 90045-65105 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.14 |
1 | ||
| 90045-65106 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.17 |
1 | ||
| 90045-65108 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.23 |
1 | ||
| 90045-65098 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.93 |
1 | ||
| 90045-65107 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.20 |
1 | ||
| 90045-65099 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.96 |
1 | ||
| 90045-65112 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.35 |
1 | ||
| 90045-65104 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.11 |
1 | ||
| 90045-65109 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.26 |
1 | ||
| 90045-65113 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.38 |
1 | ||
| 90045-65103 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.08 |
1 | ||
| 90045-65100 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.99 |
1 | ||
| 90045-65101 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.02 |
1 | ||
| 90045-65111 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.32 |
1 | ||
| 90045-65110 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=2.29 |
1 | ||
| 90045-65094 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 厚さ=1.81 |
1 | ||
| 36245A - FLANGE, TRANSFER OUTPUT SHAFT | ||||
| 36228-B1020 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-B2010 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 36256 - SPACER, TRANSFER OUTPUT SHAFT, NO.2 | ||||
| 36256-97201 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 41201K - BEARING (FOR TRANSFER DRIVEN PINION FRONT) | ||||
| 90043-68035 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 41201L - BEARING (FOR TRANSFER DRIVEN PINION REAR) | ||||
| 90043-68037 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| 41201P - GEAR KIT, TRANSFER | ||||
| 36203-B2040 |
LA260..FG,FGT,FX;LA260..(CG,CGT,CX,S)..PS1 |
1 | ||
| Common parts | ||||
| 90041-79205 | ||||
| 90042-08009 | ||||
| Linked diagrams | ||||
| 3609 | ||||
