LA260A-GBGF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

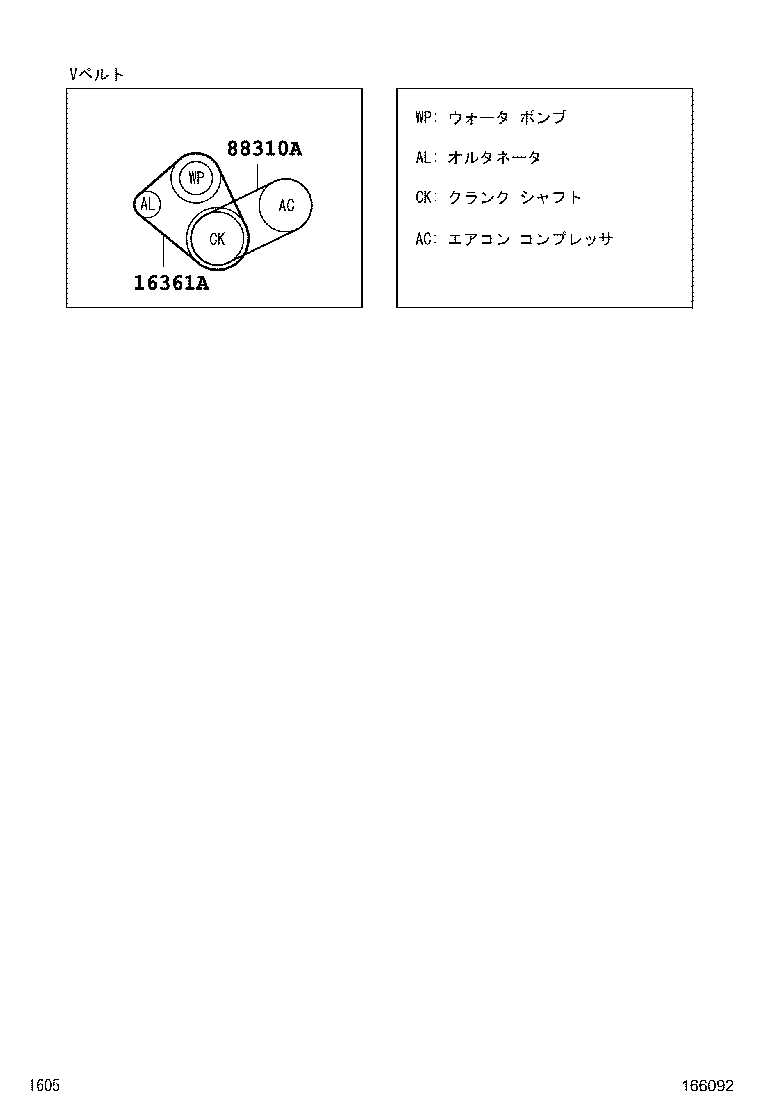

Click highlighted areas on diagram

diagram 16361A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90048-31093

KFV#..LA250,260..CG,CGT,CX,S

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90048-31095

LA250,260

BANDO 3PK672/3PK680

 1
