LA260A-GBDF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

Click highlighted areas on diagram

INNER MIRROR

diagram 87810 87834 9004148009
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-B1020C0

LA250,260..S

BLACK,TRIM1#

 1
87810-B1020C0

LA250,260..CG,CGT,CX

BLACK,TRIM1#,2#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-B2200B0

LA250,260..S

LT.GRAY,TRIM1#

 1
87834-B2200B0

LA250,260..CG,CGT,CX

LT.GRAY,TRIM1#,2#

 1
Common parts
90041-48009

(1609- )

Click highlighted areas on diagram

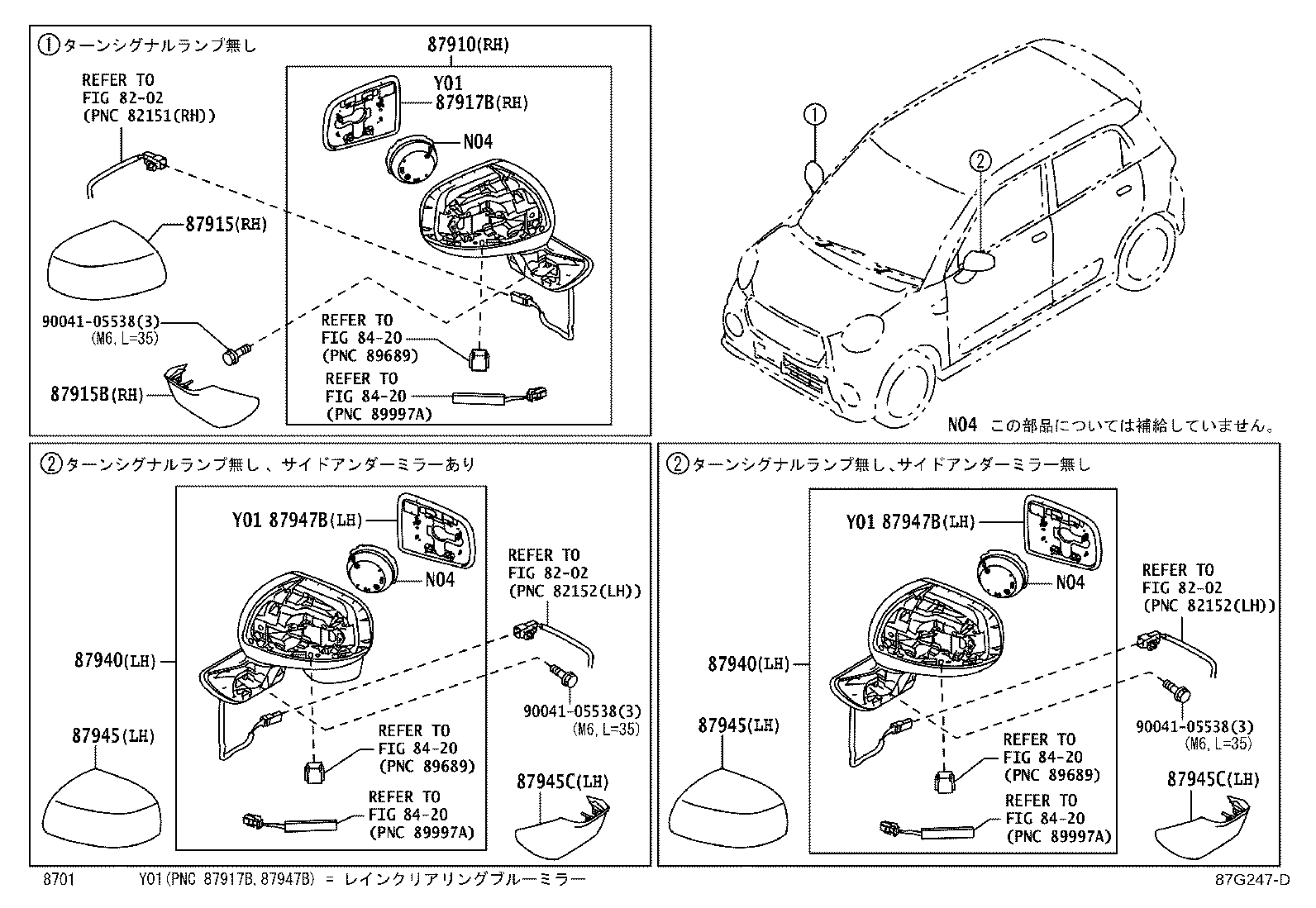

OUTER MIRROR

diagram 8202 8202 8202 8420 8420 8420 8420 8420 8420 87910 87915 87915B 87917B 87940 87940 87945 87945 87945C 87945C 87947B 87947B 9004105538 9004105538 9004105538
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-B2K40

LA260

電動,電格,ｷｰｱﾝﾃﾅ,ﾋｰﾀｰ

 1
87915 - COVER, OUTER MIRROR, RH
87915-B2300A0

LA250,260..CG,CGT,CX

WHITE,B79 ,B80 ,G57 ,R67 ,R71 ,X07

 1
87915-B2300C0

LA250,260..S

BLACK M.M.,X07

 1
87915-B2300C0

LA250,260..CG,CGT,CX

BLACK M.M.,X07

 1
87915-B2300D3

LA250,260..S

RED,R40

 1
87915-B2300B0

LA250,260..S..PS2;LA250,260..(CG,CGT,CX,FG,FGT,FX)..PS1

SILVER ME.,S28

 1
87915-B2300D3

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｱﾘ(ｷﾎﾝ),RED,B79 ,R40 ,W24

 1
87915-B2300J6

LA250,260..CG,CGT,CX

BLUE,B80

 1
87915-B2300D2

LA250,260..CG,CGT,CX

ORANGE ME.,R71

 1
87915-B2300A0

LA250,260..CG,CGT,CX

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ),WHITE

 1
87915-B2300D3

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｱﾘ(ｷﾎﾝ),RED,X07

 1
87915-B2300C0

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｽﾎﾟｰﾂ(ﾌﾞﾗｯｸ),BLACK M.M.,B79 ,R40 ,S28 ,W24 ,X07

 1
87915-B2300J5

LA250,260..S..PS1;LA250,260..CG,CGT,CX,FG,FGT,FX

DARK BLUE SE.,B79

 1
87915-B2300A0

LA250,260..CG,CGT,CX

ﾎﾜｲﾄ(Tｼｬ ﾕｳｼｮｳｼｮｸ ﾖｳ),WHITE

 1
87915-B2300C0

LA250,260..CG,CGT,CX

ﾌﾞﾗｯｸ(Tｼｬ ﾕｳｼｮｳｼｮｸ ﾖｳ),BLACK M.M.

 1
87915-B2300A1

LA250,260

WHITE PEARL MC.CS,W24

 1
87915-B2300C0

LA250,260..CG,CGT,CX

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ),BLACK M.M.

 1
87915-B2300C0

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｽﾎﾟｰﾂ(ﾌﾞﾗｯｸ),BLACK M.M.,S28 ,W24 ,X07

 1
87915-B2300D1

LA250,260..CG,CGT,CX,FG,FGT,FX

RED ME.,R67

 1
87915B - COVER, OUTER MIRROR, LOWER RH
87915-B2400

LA250,260

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87917-B2260

LA260

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-B2M70

LA260..CG,CGT,CX

電動,電格,ｱﾝﾃﾅ,補助ﾐﾗｰ,ﾋ−ﾀ

 1
87940-B2M90

LA260..FG,FGT,FX,S

電動,電格,ｷｰｱﾝﾃﾅ,ﾋｰﾀｰ

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-B2M70

LA260..CG,CGT,CX

電動,電格,ｱﾝﾃﾅ,補助ﾐﾗｰ,ﾋ−ﾀ

 1
87940-B2M90

LA260..FG,FGT,FX,S

電動,電格,ｷｰｱﾝﾃﾅ,ﾋｰﾀｰ

 1
87945 - COVER, OUTER MIRROR, LH
87945-B2300A0

LA250,260..CG,CGT,CX

WHITE,B79 ,B80 ,G57 ,R67 ,R71 ,X07

 1
87945-B2300C0

LA250,260..CG,CGT,CX

BLACK M.M.,X07

 1
87945-B2300C0

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｽﾎﾟｰﾂ(ﾌﾞﾗｯｸ),BLACK M.M.,S28 ,W24 ,X07

 1
87945-B2300C0

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｽﾎﾟｰﾂ(ﾌﾞﾗｯｸ),BLACK M.M.,B79 ,R40 ,S28 ,W24 ,X07

 1
87945-B2300C0

LA250,260..S

BLACK M.M.,X07

 1
87945-B2300D3

LA250,260..S

RED,R40

 1
87945-B2300D3

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｱﾘ(ｷﾎﾝ),RED,B79 ,R40 ,W24

 1
87945-B2300B0

LA250,260..S..PS2;LA250,260..(CG,CGT,CX,FG,FGT,FX)..PS1

SILVER ME.,S28

 1
87945-B2300D3

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｱﾘ(ｷﾎﾝ),RED,X07

 1
87945-B2300D2

LA250,260..CG,CGT,CX

ORANGE ME.,R71

 1
87945-B2300J5

LA250,260..S..PS1;LA250,260..CG,CGT,CX,FG,FGT,FX

DARK BLUE SE.,B79

 1
87945-B2300J6

LA250,260..CG,CGT,CX

BLUE,B80

 1
87945-B2300C0

LA250,260..CG,CGT,CX

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ),BLACK M.M.

 1
87945-B2300A1

LA250,260

WHITE PEARL MC.CS,W24

 1
87945-B2300A0

LA250,260..CG,CGT,CX

ﾎﾜｲﾄ(Tｼｬ ﾕｳｼｮｳｼｮｸ ﾖｳ),WHITE

 1
87945-B2300D1

LA250,260..CG,CGT,CX,FG,FGT,FX

RED ME.,R67

 1
87945-B2300C0

LA250,260..CG,CGT,CX

ﾌﾞﾗｯｸ(Tｼｬ ﾕｳｼｮｳｼｮｸ ﾖｳ),BLACK M.M.

 1
87945-B2300A0

LA250,260..CG,CGT,CX

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ),WHITE

 1
87945 - COVER, OUTER MIRROR, LH
87945-B2300A0

LA250,260..CG,CGT,CX

WHITE,B79 ,B80 ,G57 ,R67 ,R71 ,X07

 1
87945-B2300C0

LA250,260..CG,CGT,CX

BLACK M.M.,X07

 1
87945-B2300C0

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｽﾎﾟｰﾂ(ﾌﾞﾗｯｸ),BLACK M.M.,S28 ,W24 ,X07

 1
87945-B2300C0

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｽﾎﾟｰﾂ(ﾌﾞﾗｯｸ),BLACK M.M.,B79 ,R40 ,S28 ,W24 ,X07

 1
87945-B2300C0

LA250,260..S

BLACK M.M.,X07

 1
87945-B2300D3

LA250,260..S

RED,R40

 1
87945-B2300D3

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｱﾘ(ｷﾎﾝ),RED,B79 ,R40 ,W24

 1
87945-B2300B0

LA250,260..S..PS2;LA250,260..(CG,CGT,CX,FG,FGT,FX)..PS1

SILVER ME.,S28

 1
87945-B2300D3

LA250,260..S

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ)&ｸｫｰﾀｰ ｳｨﾝﾄﾞｳ ﾓｰﾙﾃﾞｨﾝｸﾞ−ｱﾘ(ｷﾎﾝ),RED,X07

 1
87945-B2300D2

LA250,260..CG,CGT,CX

ORANGE ME.,R71

 1
87945-B2300J5

LA250,260..S..PS1;LA250,260..CG,CGT,CX,FG,FGT,FX

DARK BLUE SE.,B79

 1
87945-B2300J6

LA250,260..CG,CGT,CX

BLUE,B80

 1
87945-B2300C0

LA250,260..CG,CGT,CX

ﾃﾞｻﾞｲﾝ ﾌｲﾙﾑﾄｯﾌﾟ(ｶｰﾎﾞﾝ調/ﾌﾞﾗｯｸ),BLACK M.M.

 1
87945-B2300A1

LA250,260

WHITE PEARL MC.CS,W24

 1
87945-B2300A0

LA250,260..CG,CGT,CX

ﾎﾜｲﾄ(Tｼｬ ﾕｳｼｮｳｼｮｸ ﾖｳ),WHITE

 1
87945-B2300D1

LA250,260..CG,CGT,CX,FG,FGT,FX

RED ME.,R67

 1
87945-B2300C0

LA250,260..CG,CGT,CX

ﾌﾞﾗｯｸ(Tｼｬ ﾕｳｼｮｳｼｮｸ ﾖｳ),BLACK M.M.

 1
87945-B2300A0

LA250,260..CG,CGT,CX

ﾃﾞｻﾞｲﾝ ﾌｨﾙﾑﾄｯﾌﾟ(ｸﾘｽﾀﾙ調/ﾎﾜｲﾄ),WHITE

 1
87945C - COVER, OUTER MIRROR, LOWER LH
87945-B2400

LA250,260

 1
87945C - COVER, OUTER MIRROR, LOWER LH
87945-B2400

LA250,260

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-B2310

LA260

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-B2310

LA260

 1
Common parts
90041-05538
Linked diagrams
8202
8420
