LA260A-GBDF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(1609- )

Click highlighted areas on diagram

RH RR

diagram 5701 61233A 61237E 61238E 61503B 61611 61623A 61627A 61631A 61633A 61645K 61661A 61731B 61735A 61766D 61768B 61771B 61773A 63468C 65637 9004467530 9004467530 9004467555
Part # Description Qty Price
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61233-B2210

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61237E - BRACKET, ASSIST GRIP, NO.1
61235-B2080

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61238E - BRACKET, ASSIST GRIP, NO.2
61237-B2070

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61503-B2100

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61611 - PANEL, QUARTER, RH
61611-B2530

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ﾙｰﾌ ﾚｰﾙ−ｱﾘ

 1
61611-B2510

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61623A - EXTENSION, QUARTER PANEL, OUTER RH
61031-B2270

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61627A - EXTENSION, QUARTER PANEL, LOWER RH
61621-B2140

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-B2150

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61633-B2040

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61645K - GUSSET, QUARTER WHEEL HOUSE INNER, RH
61645-B2070

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61661A - EXTENSION, QUARTER PANEL TO UPPER BACK, RH
61661-B2190

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-B2230

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-B2180

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61766D - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 RH
58272-B2010

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61768-B2250

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH
61771-B2150

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61773A - PATCH, BACK DOOR OPENING, LOWER RH
61773-B2010

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
63468C - BRACKET, ROOF RACK, REAR RH
63467-B2020

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ﾙｰﾌ ﾚｰﾙ−ｱﾘ

 1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-B2270

LA250,260

 1
Common parts
90044-67530
90044-67555
Linked diagrams
5701

ILLUST NO. 4 OF 5(1609- )

Click highlighted areas on diagram

LH RR

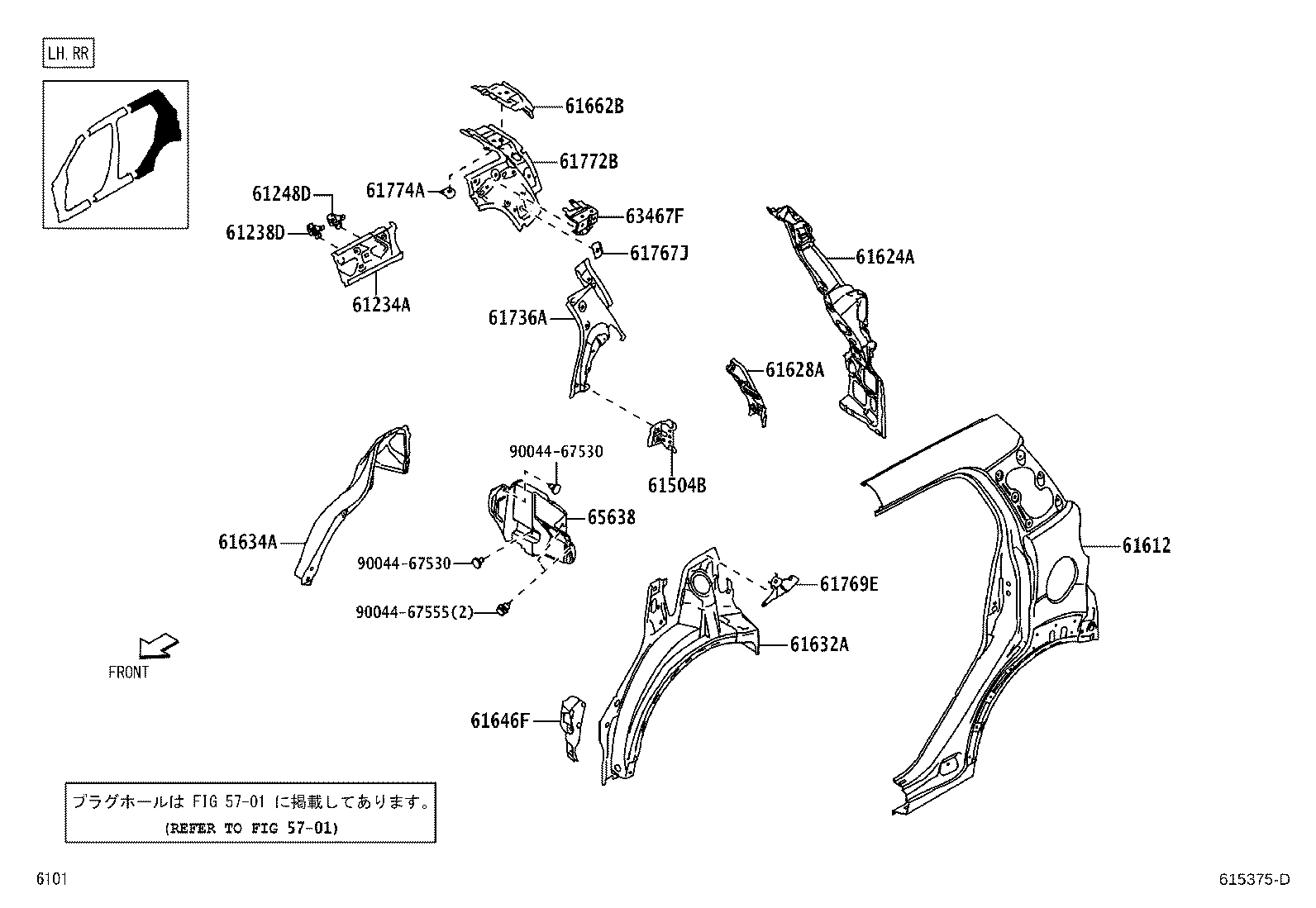

diagram 5701 61234A 61238D 61248D 61504B 61612 61624A 61628A 61632A 61634A 61646F 61662B 61736A 61767J 61769E 61772B 61774A 63467F 65638 9004467530 9004467530 9004467555
Part # Description Qty Price
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61234-B2210

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61238D - BRACKET, ASSIST GRIP, NO.2 LH
61237-B2070

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61248D - BRACKET, ASSIST GRIP, LH
61235-B2080

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61504-B2110

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61612 - PANEL, QUARTER, LH
61612-B2470

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61612-B2490

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ﾙｰﾌ ﾚｰﾙ−ｱﾘ

 1
61624A - EXTENSION, QUARTER PANEL, OUTER LH
61032-B2260

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61628A - EXTENSION, QUARTER PANEL, LOWER LH
61622-B2110

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-B2150

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61634-B2040

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61646F - GUSSET, QUARTER WHEEL HOUSE INNER, LH
61646-B2080

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH
61662-B2190

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-B2170

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61767J - REINFORCE, BELT ANCHOR TO QUARTER, INNER NO.1 LH
58272-B2010

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61769E - REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH
61769-B2240

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH
61772-B2150

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61774A - PATCH, BACK DOOR OPENING, LOWER LH
61774-B2020

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
63467F - BRACKET, ROOF RACK, REAR RH
63468-B2020

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ﾙｰﾌ ﾚｰﾙ−ｱﾘ,左側

 1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-B2270

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
Common parts
90044-67530
90044-67555
Linked diagrams
5701

ILLUST NO. 5 OF 5(1609- )

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ

diagram
Part # Description Qty Price

ILLUST NO. 1 OF 5(1609- )

Click highlighted areas on diagram

RH FR

diagram 5701 61021C 61023B 61037A 61106A 61131 61157 61203 61311B 61341C 61343A 61367A 61388A 61411 75921G
Part # Description Qty Price
61021C - PILLAR SUB-ASSY, FRONT BODY, RH
61021-B2050

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-B2280

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-B2420

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61106-B2100

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-B2120

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61157 - BRACKET, NO.2 SIDE PANEL
61158-B2160

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

左側

 1
61157-B2180

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

右側

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-B2900

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61203-B2901

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ﾙｰﾌ ﾚｰﾙ−ｱﾘ

 1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-B2380

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61311-B2400

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ﾙｰﾌ ﾚｰﾙ−ｱﾘ

 1
61341C - PILLAR, CENTER BODY, INNER UPPER RH
61341-B2080

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-B2260

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61367A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61367-B2150

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61388A - PLATE, CENTER BODY PILLAR END, RH
61388-B2040

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61411 - PANEL, ROCKER, OUTER RH
61411-B2520

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
75921G - TAPE, BLACK OUT, NO.1 RH
75921-B2190C0

LA250,260..S

TUYAKESI BLACK DUMMYCOLOR,B79 ,R40 ,W24

 1
75921-B2190C0

LA250,260..CG,CGT,CX

TUYAKESI BLACK DUMMYCOLOR,B79 ,B80 ,G57 ,R67 ,R71 ,S28 ,W24

 1
Linked diagrams
5701

ILLUST NO. 3 OF 5(1609- )

Click highlighted areas on diagram

LH FR

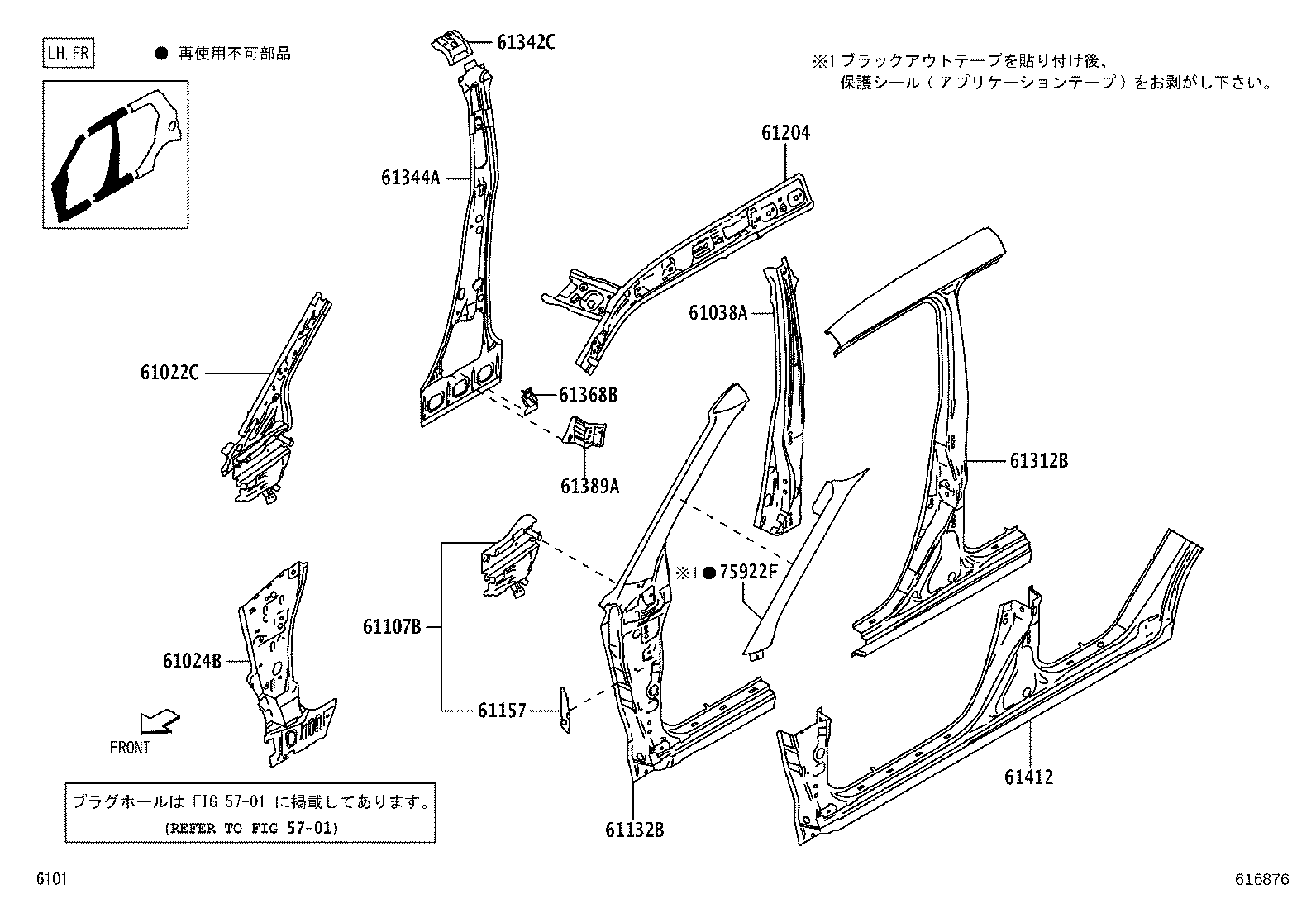

diagram 5701 61022C 61024B 61038A 61107B 61132B 61157 61204 61312B 61342C 61344A 61368B 61389A 61412 75922F
Part # Description Qty Price
61022C - PILLAR SUB-ASSY, FRONT BODY, LH
61022-B2140

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-B2230

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-B2380

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61107-B2110

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61132B - PILLAR, FRONT BODY, OUTER LH
61132-B2400

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61157 - BRACKET, NO.2 SIDE PANEL
61158-B2160

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

左側

 1
61157-B2180

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

右側

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-B2901

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ﾙｰﾌ ﾚｰﾙ−ｱﾘ

 1
61204-B2900

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-B2330

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

ﾙｰﾌ ﾚｰﾙ−ｱﾘ

 1
61312-B2310

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61342C - PILLAR, CENTER BODY, INNER UPPER LH
61342-B2120

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-B2250

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61368B - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH
61368-B2120

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61389A - PLATE, CENTER BODY PILLAR END, LH
61389-B2030

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
61412 - PANEL, ROCKER, OUTER LH
61412-B2510

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
75922F - TAPE, BLACK OUT, NO.1 LH
75922-B2180C0

LA250,260..S

TUYAKESI BLACK DUMMYCOLOR,B79 ,R40 ,W24

 1
75922-B2180C0

LA250,260..CG,CGT,CX

TUYAKESI BLACK DUMMYCOLOR,B79 ,B80 ,G57 ,R67 ,R71 ,S28 ,W24

 1
