LA260A-GBDF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

Click highlighted areas on diagram

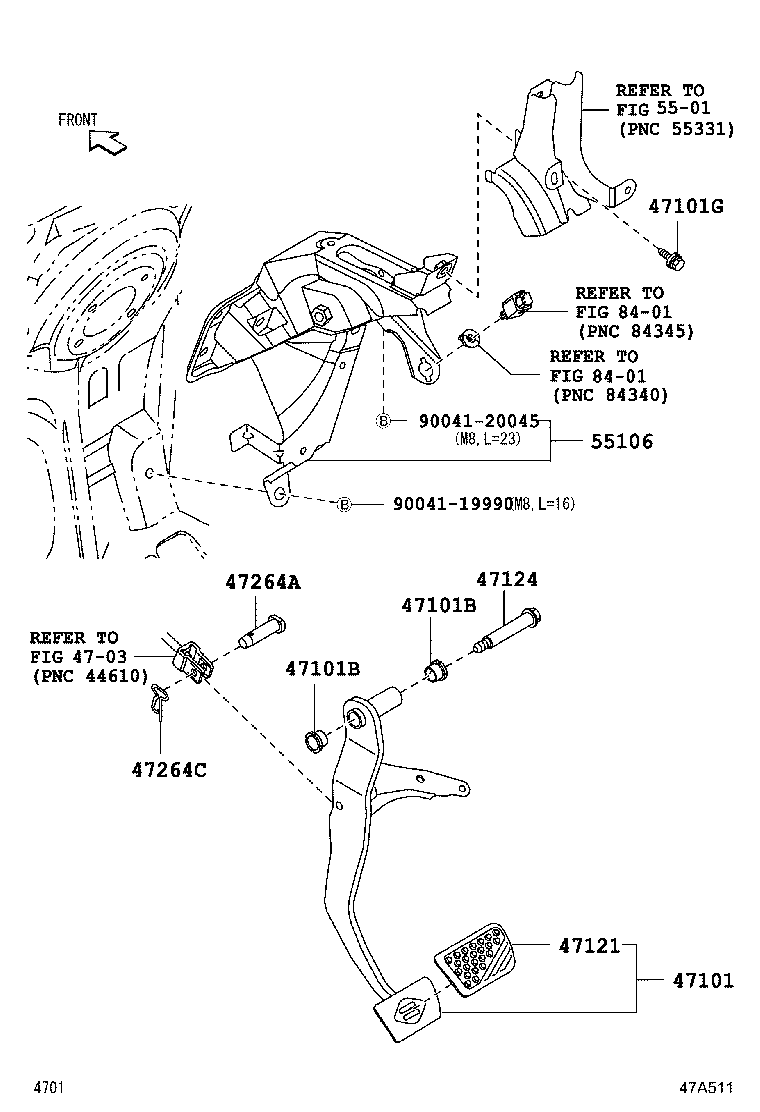

diagram 4703 47101 47101B 47101B 47101G 47121 47124 47264A 47264C 5501 55106 8401 8401 9004119990 9004120045
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47110-B2340

LA250,260..CG,CGT,CX,S

 1
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

LA250,260..CG,CGT,CX,S

 2
47101B - BUSH(FOR BRAKE PEDAL)
90043-86121

LA250,260..CG,CGT,CX,S

 2
47101G - BOLT, BRAKE PEDAL STOP, NO.1
45898-B2010

LA250,260

 1
47121 - PAD, BRAKE PEDAL
47121-B2010

LA250,260..CG,CGT,CX,S

 1
47124 - SHAFT, BRAKE PEDAL
31324-B2010

LA250,260..CG,CGT,CX,S

 1
47264A - PIN(FOR PUSH ROD)
90042-40151

LA250,260..CG,CGT,CX,S

 1
47264C - CLIP(FOR PUSH ROD CLEVIS PIN)
90044-68076

LA250,260..CG,CGT,CX,S

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-B2430

LA250,260..CG,CGT,CX,S

 1
Common parts
90041-19990
90041-20045
Linked diagrams
4703
5501
8401
