LA260A-GBDF (2016)
Toyota Pixis Joy
Production
Sep 2016
-
Oct 2017
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1609- )LA260

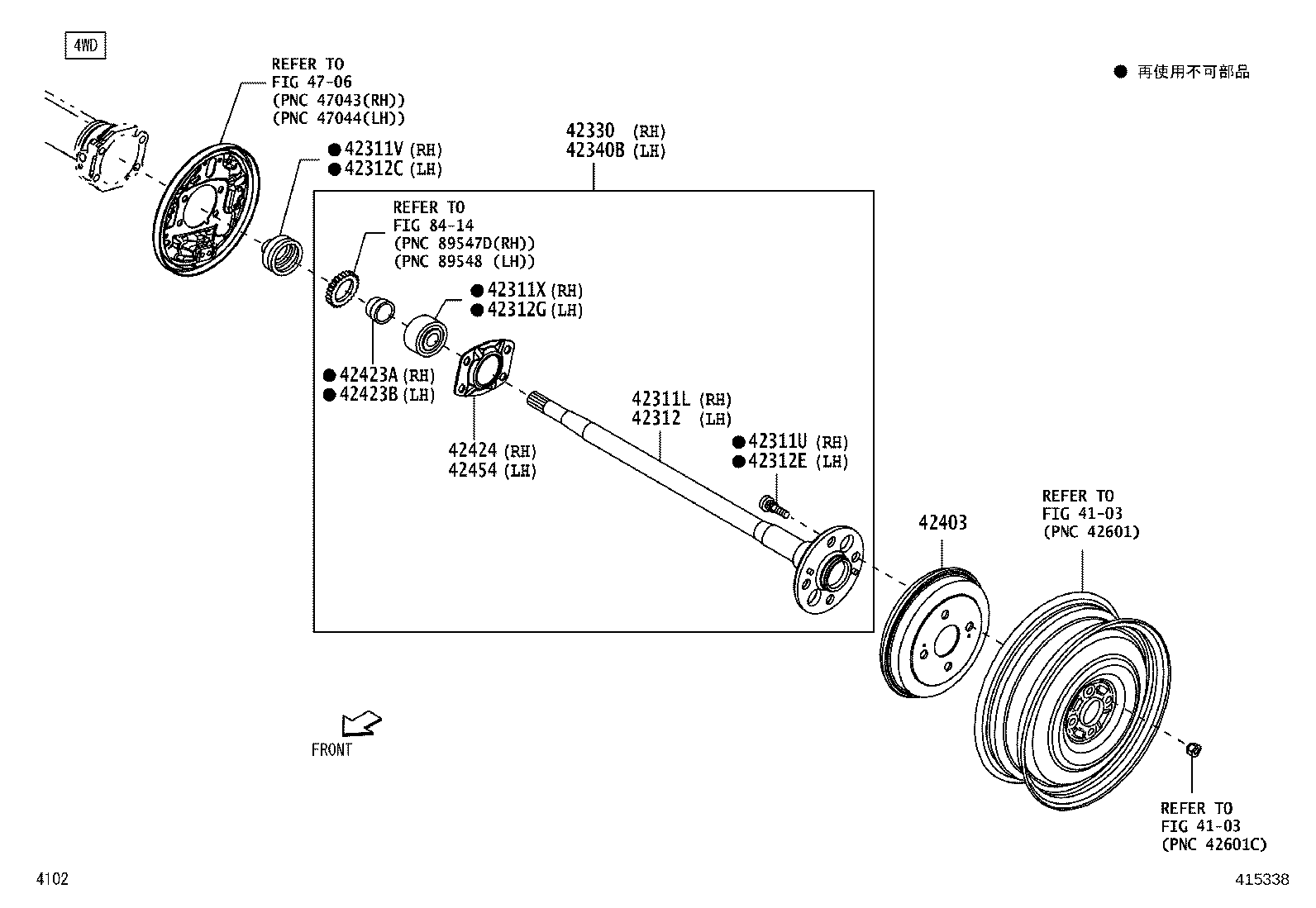

Click highlighted areas on diagram
4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-B2050 |
LA260 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90049-12055 |
LA260 |
4 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90043-11291 |
LA260 |
1 | ||
| 42311X - BEARING (FOR REAR AXLE SHAFT INNER RH) | ||||
| 90043-63402 |
LA260 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-B5010 |
LA260 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90043-11291 |
LA260 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90049-12055 |
LA260 |
4 | ||
| 42312G - BEARING (FOR REAR AXLE SHAFT INNER LH) | ||||
| 90043-63402 |
LA260 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42301-B2040 |
LA260 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42302-B2060 |
LA260 |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-B2080 |
LA260 |
2 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-B2010 |
LA260 |
1 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-B2010 |
LA260 |
1 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-97501 |
LA260 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42424-97501 |
LA260 |
1 | ||
| Linked diagrams | ||||
| 4103 | ||||
| 4706 | ||||
| 8414 | ||||
