LA260A-GBDF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609-1804)

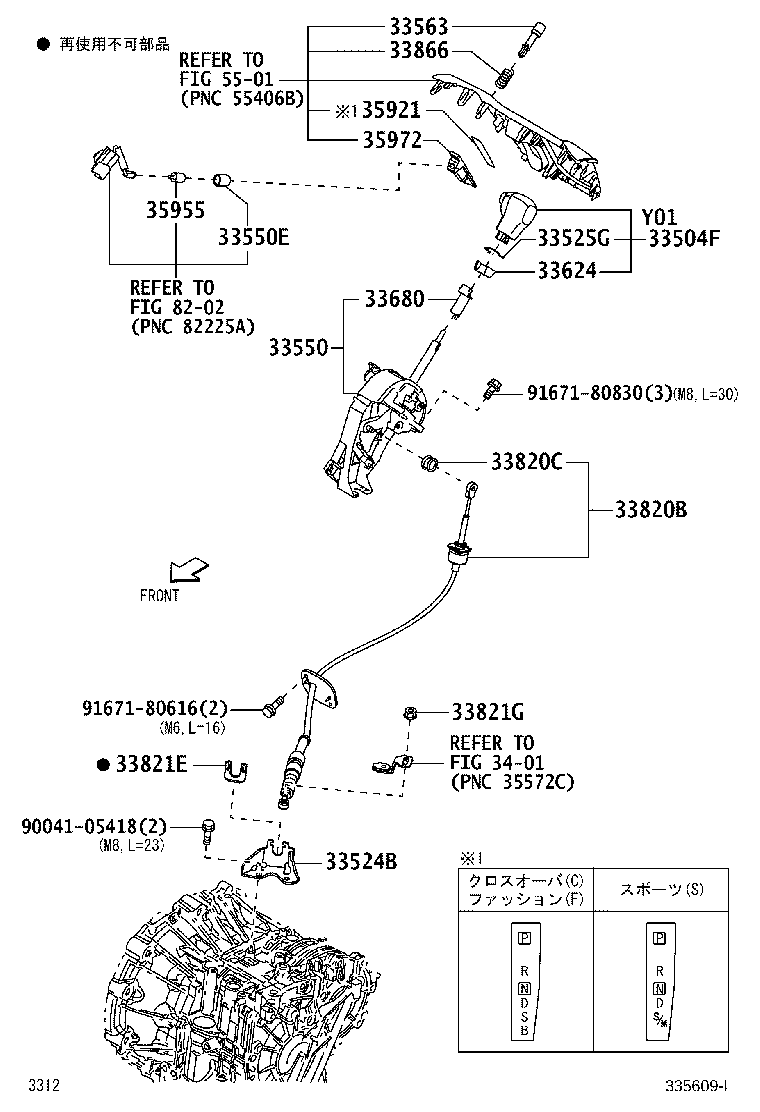

Click highlighted areas on diagram

diagram 33504F 33524B 33525G 33550 33550E 33563 33624 33680 33820B 33820C 33821E 33821G 33866 3401 35921 35955 35972 5501 8202 9004105418 9167180616 9167180830
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-B2180B1

LA250,260..CG,CX

DK.GRAY,TRIM1#,2#

 1
33504-B2190C0

LA250,260..S

BLACK,TRIM1#

 1
33504-B2190C0

LA250,260..CG,CX

ｼﾌﾄ ﾚﾊﾞｰ & ﾉﾌﾞ−ｲﾝﾊﾟﾈCVT 6ﾎﾟｼﾞｼｮﾝ 革,BLACK,TRIM1#,2#

 1
33524B - BRACKET, CONTROL CABLE
33524-B2050

LA250,260..CG,CGT,CX,S

 1
33525G - RING, SHIFT LEVER
33525-B2010

LA250,260

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-B2720C0

LA250,260..CG,CGT,CX

BLACK,TRIM1#,2#

 1
33550-B2710C1

LA250,260..S

BLACK,TRIM1#

 1
33550-B2720C1

LA250,260..CG,CGT,CX

BLACK,TRIM1#,2#

 1
33550-B2710C0

LA250,260..S

BLACK,TRIM1#

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-B2060

LA250,260..CG,CGT,CX,S

ｵﾚﾝｼﾞｷｬｯﾌﾟ

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-B2010

LA250,260..CG,CGT,CX,S

 1
33624 - HOLDER, KNOB COVER
33551-B2011

LA250,260

 1
33680 - COVER SUB-ASSY, SHIFT LEVER
33522-B2010

LA250,260..CG,CGT,CX,S

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-B2410

LA250,260

 1
33820C - BUSH (FOR TRANSMISSION CONTROL CABLE)
33835-B1010

LA250,260

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33567-B1010

LA250,260..CG,CGT,CX,S

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-06274

LA250,260..CG,CGT,CX,S

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-B2010

LA250,260..CG,CGT,CX,S

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-B2020

LA250,260..CG,CGT,CX

 1
35921-B2040

LA250,260..S

 1
35955 - BULB, POSITION INDICATOR LAMP
35955-B2040

LA250,260..CG,CGT,CX,S

 1
35972 - COVER, POSITION INDICATOR HOUSING
55534-B2020

LA250,260..CG,CGT,CX,S

 1
Common parts
90041-05418
91671-80616
91671-80830
Linked diagrams
3401
5501
8202
