LA260A-GBDF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

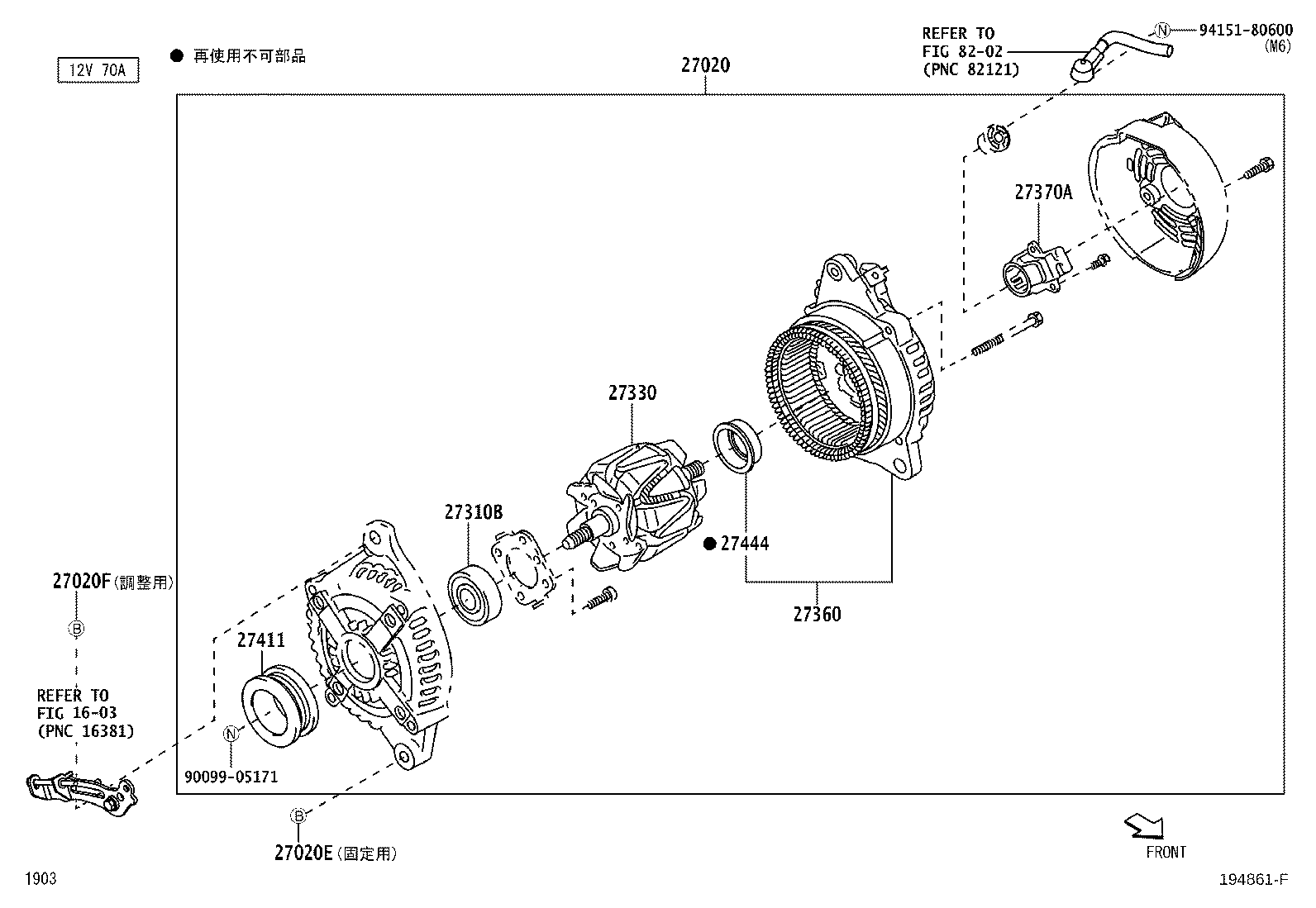

Click highlighted areas on diagram

diagram 1603 27020 27020E 27020F 27310B 27330 27360 27370A 27411 27444 8202 9009905171 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-B2150

KFV#..LA250,260..CG,CGT,CX,S

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
91552-81075

KFV#..LA250,260..CG,CGT,CX,S

M10,L=75

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90041-20195

KFV#..LA250,260

M8,L=30

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004C-37002

KFV#..LA250,260..CG,CGT,CX,S

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-B5010

KFV#..LA250,260..CG,CGT,CX,S

 1
27360 - COIL ASSY, ALTERNATOR
27360-B2010

KFV#..LA250,260..CG,CGT,CX,S

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-B2020

KFV#..LA250,260..CG,CGT,CX,S

 1
27411 - PULLEY, ALTERNATOR
27411-B2010

KFV#..LA250,260..CG,CGT,CX,S

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-B1010

KFV#..LA250,260..CG,CGT,CX,S

 1
Common parts
90099-05171
94151-80600
Linked diagrams
1603
8202
