LA260A-GBDF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )KFVE

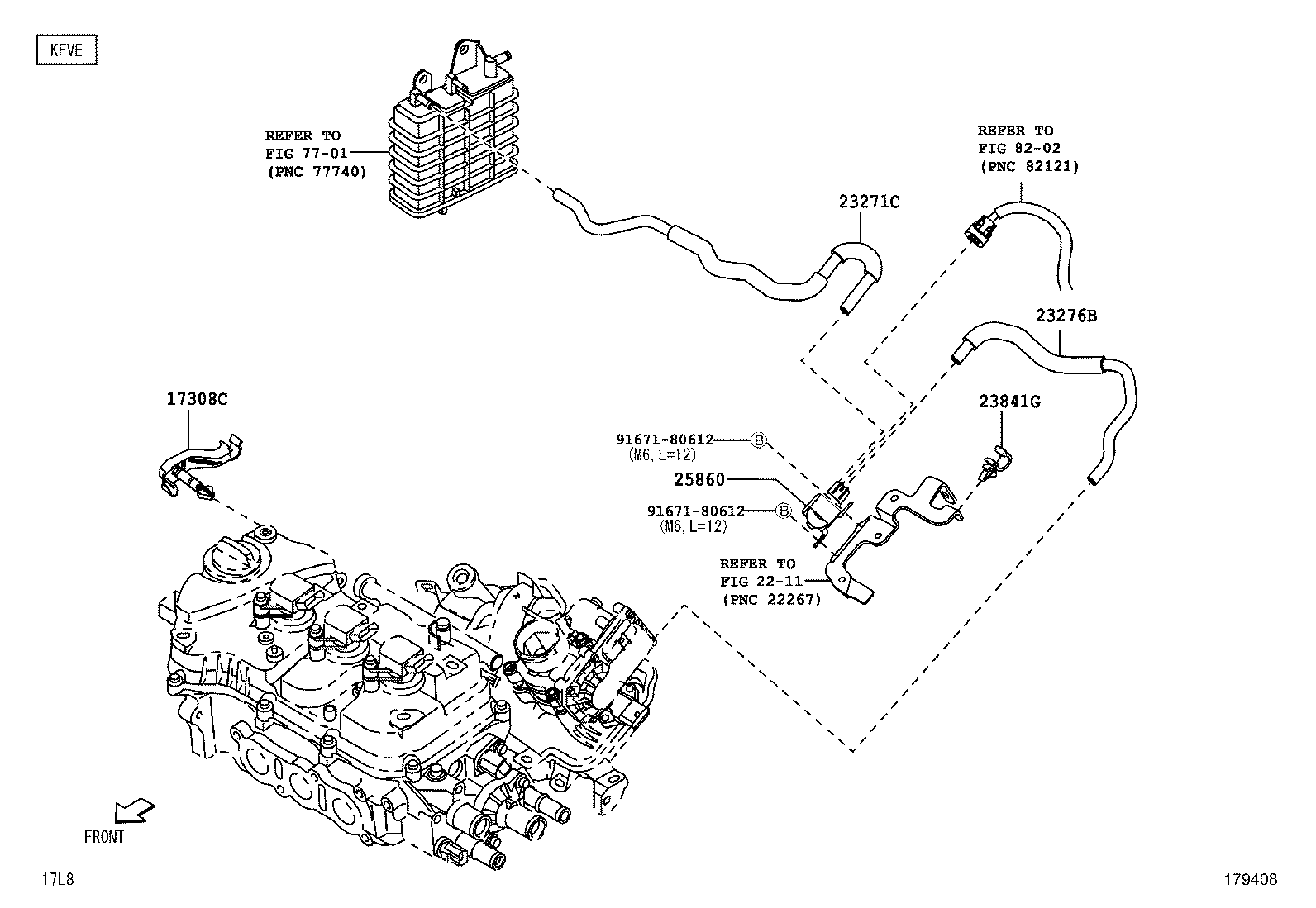

Click highlighted areas on diagram

diagram 17308C 2211 23271C 23276B 23841G 25860 7701 8202 9167180612 9167180612
Part # Description Qty Price
17308C - CLAMP(FOR VACUUM HOSE)
23115-B2010

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
23271C - HOSE, FUEL
77795-B2110

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
23276B - HOSE(FOR VACUUM CONTROL VALVE)
77754-B2140

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
23841G - CLAMP, FUEL HOSE
90044-64899

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
89470-B1020

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
Common parts
91671-80612
Linked diagrams
2211
7701
8202
