LA260A-GBDF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

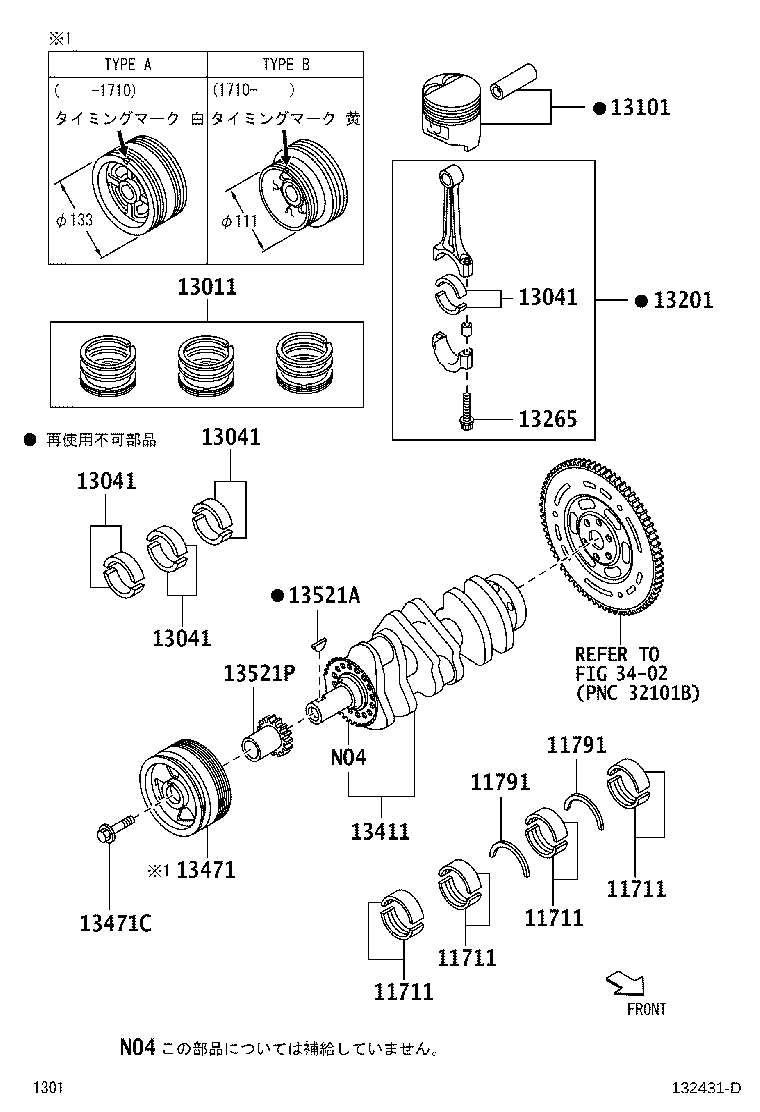

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13201 13265 13411 13471 13471C 13521A 13521P 3402
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-B201103

KFV#..LA250,260

MARK3 BROWN,DAIDO METAL

 4
11701-B201102

KFV#..LA250,260

MARK2 GREEN,DAIDO METAL

 4
11701-B201105

KFV#..LA250,260

MARK5 BLUE,DAIDO METAL

 4
11701-B201104

KFV#..LA250,260

MARK4 BLACK,DAIDO METAL

 4
11711 - BEARING, CRANKSHAFT
11701-B201103

KFV#..LA250,260

MARK3 BROWN,DAIDO METAL

 4
11701-B201102

KFV#..LA250,260

MARK2 GREEN,DAIDO METAL

 4
11701-B201105

KFV#..LA250,260

MARK5 BLUE,DAIDO METAL

 4
11701-B201104

KFV#..LA250,260

MARK4 BLACK,DAIDO METAL

 4
11711 - BEARING, CRANKSHAFT
11701-B201103

KFV#..LA250,260

MARK3 BROWN,DAIDO METAL

 4
11701-B201102

KFV#..LA250,260

MARK2 GREEN,DAIDO METAL

 4
11701-B201105

KFV#..LA250,260

MARK5 BLUE,DAIDO METAL

 4
11701-B201104

KFV#..LA250,260

MARK4 BLACK,DAIDO METAL

 4
11711 - BEARING, CRANKSHAFT
11701-B201103

KFV#..LA250,260

MARK3 BROWN,DAIDO METAL

 4
11701-B201102

KFV#..LA250,260

MARK2 GREEN,DAIDO METAL

 4
11701-B201105

KFV#..LA250,260

MARK5 BLUE,DAIDO METAL

 4
11701-B201104

KFV#..LA250,260

MARK4 BLACK,DAIDO METAL

 4
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B2010

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

STD,大豊

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B2010

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

STD,大豊

 2
13011 - RING SET, PISTON
13011-B2043

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

NIPPISU,日本ﾋﾟｽﾄﾝﾘﾝｸﾞ

 1
13041 - BEARING, CONNECTING ROD
13041-B201002

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK2 GREEN

 3
13041-B201001

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK1 PURPLE

 3
13041-B201003

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK3 BROWN

 3
13041 - BEARING, CONNECTING ROD
13041-B201002

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK2 GREEN

 3
13041-B201001

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK1 PURPLE

 3
13041-B201003

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK3 BROWN

 3
13041 - BEARING, CONNECTING ROD
13041-B201002

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK2 GREEN

 3
13041-B201001

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK1 PURPLE

 3
13041-B201003

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK3 BROWN

 3
13041 - BEARING, CONNECTING ROD
13041-B201002

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK2 GREEN

 3
13041-B201001

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK1 PURPLE

 3
13041-B201003

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

MARK3 BROWN

 3
13101 - PISTON SUB-ASSY, W/PIN
13101-B2232

KFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1

STD ART

 3
13201 - ROD SUB-ASSY, CONNECTING
13201-B9060

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 3
13265 - BOLT, CONNECTING ROD
13265-B9020

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 6
13411 - CRANKSHAFT
13401-B2010

KFV#..LA250,260

ｾﾝｻｰﾌﾟﾚｰﾄ有り

 1
13471 - PULLEY, CRANKSHAFT
13470-B2011

KFV#..LA250,260

TYPE A:ｲﾗｽﾄ参照

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90041-05369

KFV#..LA250,260

M12,L=46.5

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90042-80034

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-B2020

KFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1

 1
