LA260A-GBDF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

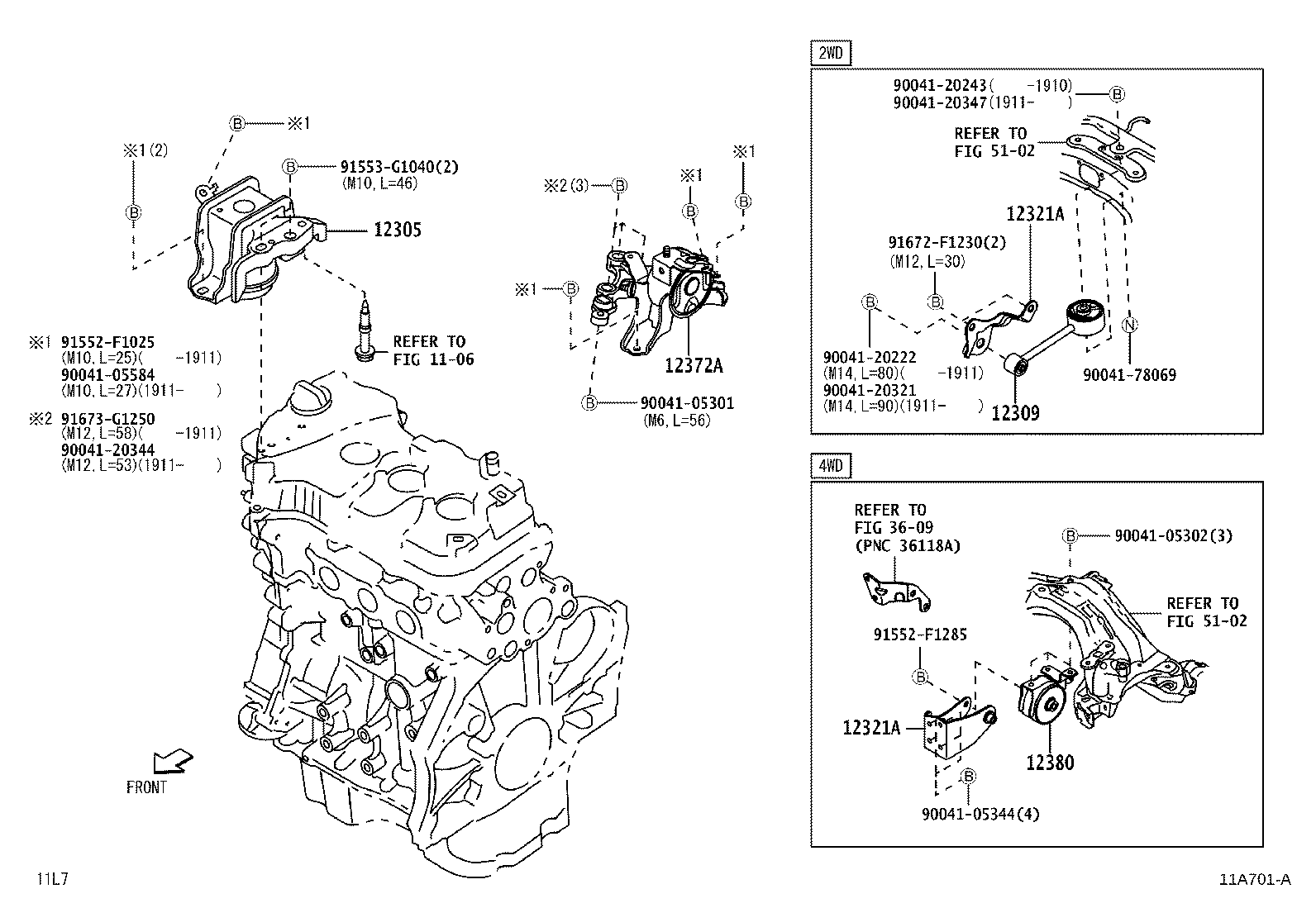

Click highlighted areas on diagram

diagram 1106 12305 12309 12321A 12321A 12372A 12380 3609 5102 5102 9004105301 9004105302 9004105344 9004105584 9004120222 9004120243 9004120321 9004120344 9004120347 9004178069 91552F1025 91552F1285 91553G1040 91672F1230 91673G1250
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-B2210

KFV#..LA250,260..CG,CGT,CX,S

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-B2090

KFV#..LA260..CG,CGT,CX,S

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-B2090

KFV#..LA260..CG,CGT,CX,S

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-B2120

KFV#..LA250,260..CG,CGT,CX,S

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-B2072

KFV#..LA260..CG,CGT,CX

 1
Common parts
90041-05301
90041-05302
90041-05344
90041-05584
90041-20222
90041-20243
90041-20321
90041-20344
90041-20347
90041-78069
91552-F1025
91552-F1285
91553-G1040
91672-F1230
91673-G1250
Linked diagrams
1106
3609
5102
