LA250A-GBVF2 (2017)
Toyota Pixis Joy
Production
Oct 2017
-
Sep 9999
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

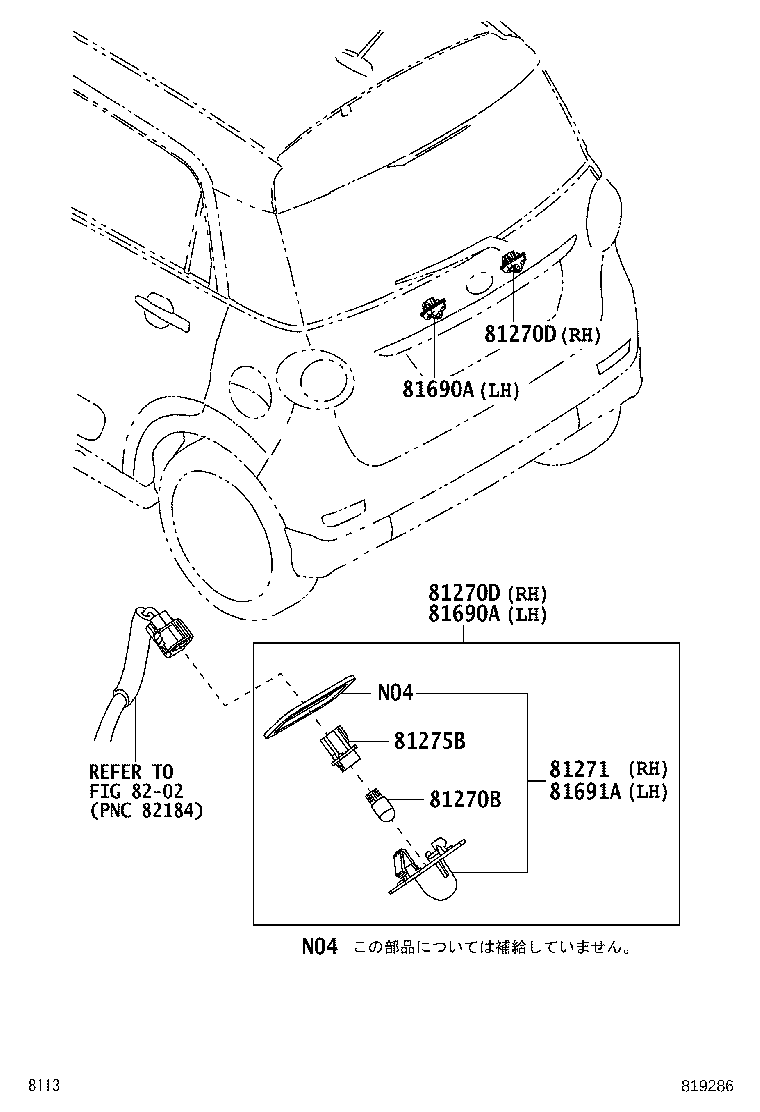

(2003- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90049-51184 |
LA250,260 12V 5W |
1 | ||
| 90049-51184 |
LA250,260 12V 5W |
2 | ||
| 81270D - LAMP ASSY, LICENSE PLATE, RH | ||||
| 81270-B2060 |
LA250,260 |
1 | ||
| 81270-B1030 |
LA250,260 |
1 | ||
| 81270D - LAMP ASSY, LICENSE PLATE, RH | ||||
| 81270-B2060 |
LA250,260 |
1 | ||
| 81270-B1030 |
LA250,260 |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-B2010 |
LA250,260 右側 |
1 | ||
| 81271-B1010 |
LA250,260 右側 |
1 | ||
| 81275B - SOCKET PLUG, LICENSE PLATE LAMP | ||||
| 81278-B1010 |
LA250,260 |
2 | ||
| 81690A - LAMP ASSY, LICENSE PLATE, LH | ||||
| 81270-B1030 |
LA250,260 |
1 | ||
| 81270-B2060 |
LA250,260 |
1 | ||
| 81690A - LAMP ASSY, LICENSE PLATE, LH | ||||
| 81270-B1030 |
LA250,260 |
1 | ||
| 81270-B2060 |
LA250,260 |
1 | ||
| 81691A - LENS, LICENSE PLATE, LH | ||||
| 81271-B2010 |
LA250,260 左側 |
1 | ||
| 81271-B1010 |
LA250,260 左側 |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||

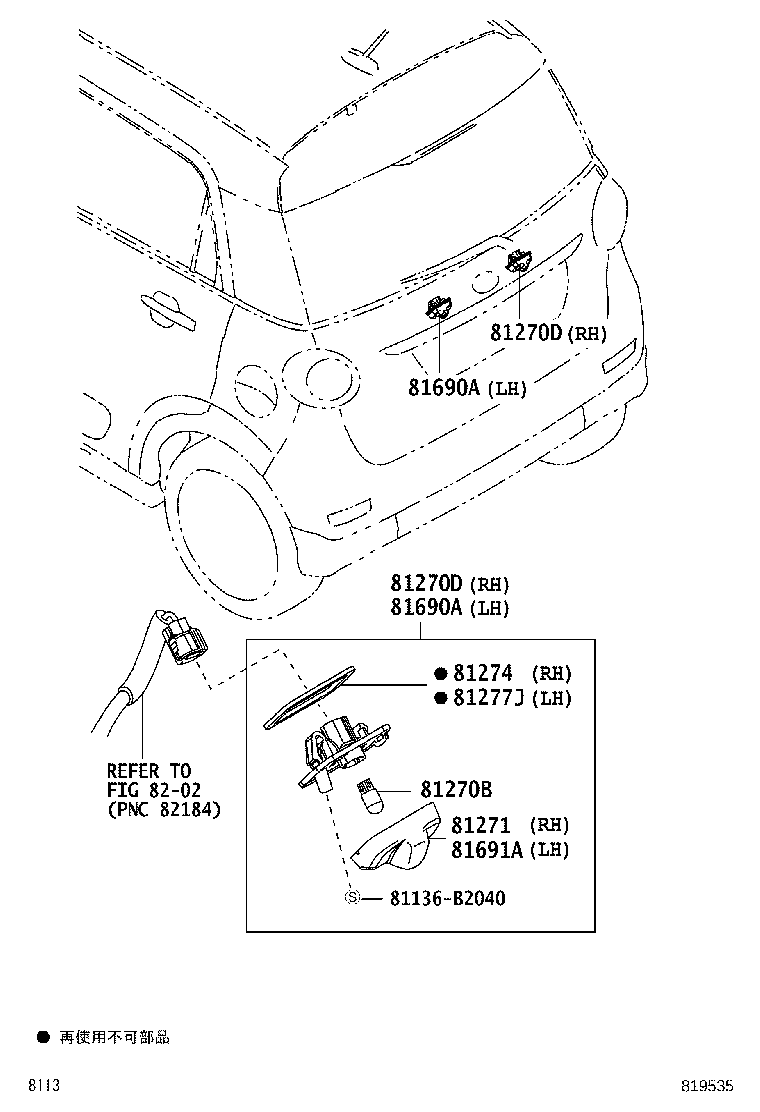

(1609-2003)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90049-51184 |
LA250,260 12V 5W |
1 | ||
| 90049-51184 |
LA250,260 12V 5W |
2 | ||
| 81270D - LAMP ASSY, LICENSE PLATE, RH | ||||
| 81270-B2060 |
LA250,260 |
1 | ||
| 81270-B1030 |
LA250,260 |
1 | ||
| 81270D - LAMP ASSY, LICENSE PLATE, RH | ||||
| 81270-B2060 |
LA250,260 |
1 | ||
| 81270-B1030 |
LA250,260 |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-B2010 |
LA250,260 右側 |
1 | ||
| 81271-B1010 |
LA250,260 右側 |
1 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81694-B2010 |
LA250,260 右側 |
1 | ||
| 81277J - GASKET, LICENSE PLATE LAMP BODY, NO.2 | ||||
| 81694-B2010 |
LA250,260 左側 |
1 | ||
| 81690A - LAMP ASSY, LICENSE PLATE, LH | ||||
| 81270-B1030 |
LA250,260 |
1 | ||
| 81270-B2060 |
LA250,260 |
1 | ||
| 81690A - LAMP ASSY, LICENSE PLATE, LH | ||||
| 81270-B1030 |
LA250,260 |
1 | ||
| 81270-B2060 |
LA250,260 |
1 | ||
| 81691A - LENS, LICENSE PLATE, LH | ||||
| 81271-B2010 |
LA250,260 左側 |
1 | ||
| 81271-B1010 |
LA250,260 左側 |
1 | ||
| Common parts | ||||
| 81136-B2040 | ||||
| Linked diagrams | ||||
| 8202 | ||||
