LA250A-GBVF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

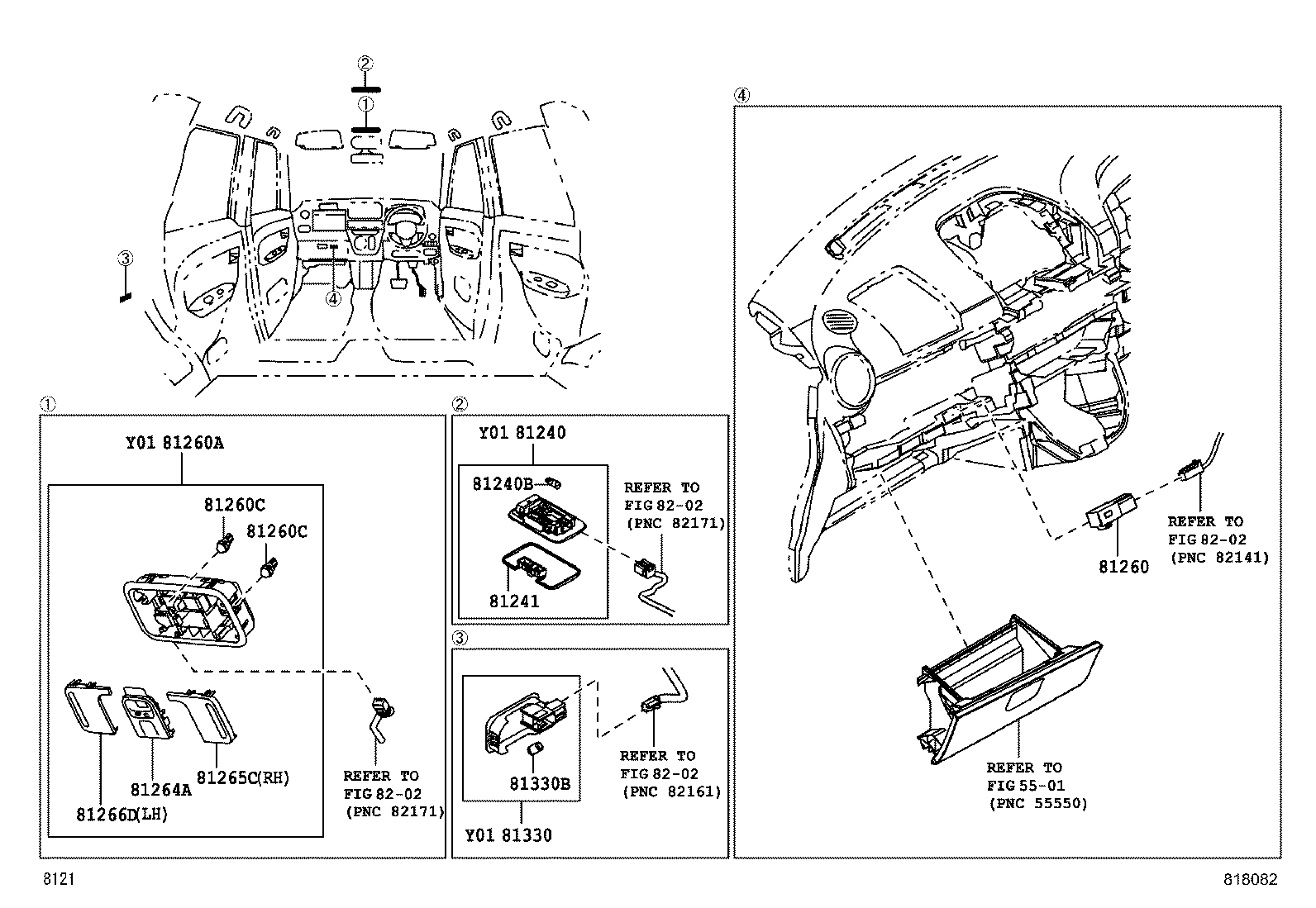

Click highlighted areas on diagram

diagram 5501 81240 81240B 81241 81260 81260A 81260C 81260C 81264A 81265C 81266D 81330 81330B 8202 8202 8202 8202
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-B2140B0

LA250,260..FG,FGT

LT.GRAY,TRIM1#,4#

 1
81240-B2140B0

LA250,260..S

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
84999-B2080

LA250,260..CG,CGT,FG,FGT,S

13.5V 0.9W,LEDﾀｲﾌﾟ

 1
81241 - LENS, ROOM LAMP, NO.1
81241-B2100

LA250,260..FG,FGT,FX

 1
81241-B2100

LA250,260..CG,CGT,CX,S

 1
81260 - LAMP ASSY, GLOVE BOX
81080-48010

LA250,260

ｲｴﾛｰ ｱﾝﾊﾞｰ

 1
81260A - LAMP ASSY, MAP
81260-B2060B0

LA250,260..S

LT.GRAY,TRIM1#,LEDﾀｲﾌﾟ

 1
81260-B2060B0

LA250,260..FG,FGT

LT.GRAY,TRIM1#,4#,LEDﾀｲﾌﾟ

 1
81260C - BULB(FOR MAP LAMP)
84999-B2020

LA250,260..CG,CGT,FG,FGT,S

13.5V 0.6W,LEDﾀｲﾌﾟ

 2
81260C - BULB(FOR MAP LAMP)
84999-B2020

LA250,260..CG,CGT,FG,FGT,S

13.5V 0.6W,LEDﾀｲﾌﾟ

 2
81264A - COVER, MAP LAMP
81261-B2020

LA250,260..CG,CGT,FG,FGT,S

 1
81265C - LENS, MAP LAMP, NO.1
81265-B2040

LA250,260..FG,FGT;LA250,260..(CG,CGT,S)..PS1

 1
81266D - LENS, MAP LAMP, NO.2
81266-B2020

LA250,260..FG,FGT;LA250,260..(CG,CGT,S)..PS1

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81240-B1010

LA250,260..CG,CGT,CX,S

 1
81240-B1010

LA250,260..FG,FGT,FX

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11013

LA250,260..FG,FGT,FX

12V 5W T10,ﾊﾞﾙﾌﾞ ﾀｲﾌﾟ

 1
90981-11013

LA250,260..CG,CGT,CX,S

12V 5W T10,ﾊﾞﾙﾌﾞ ﾀｲﾌﾟ

 1
Linked diagrams
5501
8202
