Toyota Pixis joy LA250A CAUTION PLATE (EXTERIOR & INTERIOR)

LA250A-GBVF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

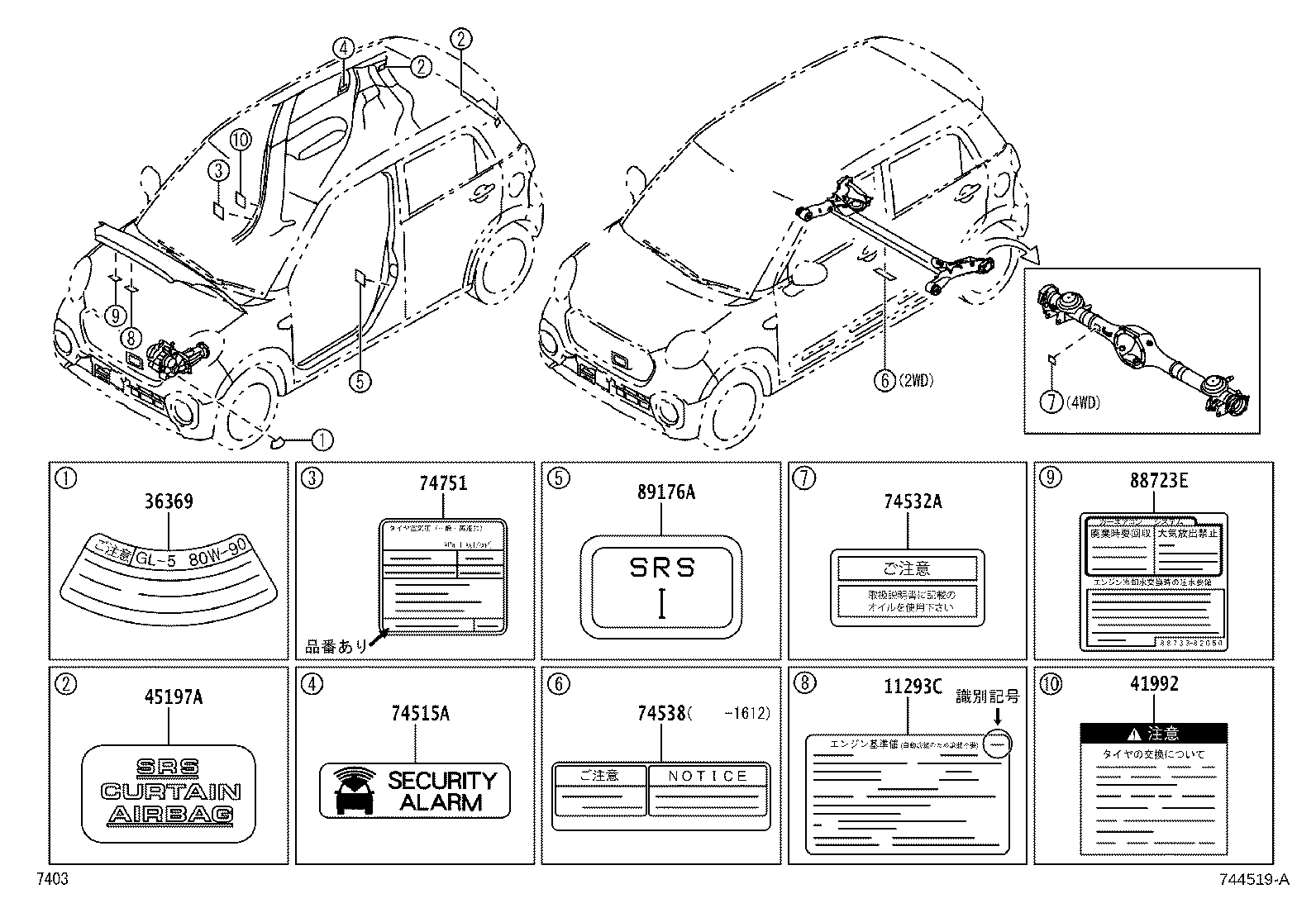

Click highlighted areas on diagram

ｺｰｼｮﾝﾗﾍﾞﾙｲﾝﾌｫﾒｰｼｮﾝﾗﾍﾞﾙ

Part #	Description	Period	Qty
11293C - LABEL, TUNE-UP SPECIFICATION INFORMATION
11293-B2231	KFVE..LA250,260 ﾗﾍﾞﾙ識別記号=231	09/2016 - 12/2999	1
45197A - LABEL, AIR BAG CAUTION
74597-B2010	LA250,260..CG,CGT,S #−SRSｴｱﾊﾞｯｸﾞ(運転席+助手席+ｻｲﾄﾞ+ｶｰﾃﾝ)	09/2016 - 01/2020	2
74515A - PLATE, THEFT WARNING
74515-B2040	LA250,260..CG,CGT,CX,S	09/2016 - 01/2020	1
74515-B2040	LA250,260..FG,FGT,FX	09/2016 - 12/2999	1
74538 - PLATE, JACK CARRIER CAUTION
74509-97202	LA250	09/2016 - 12/2016	1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-B2A60	LA250,260..FG,FGT,FX #−ﾃﾝﾊﾟｰﾀｲﾔ,品番有り	09/2016 - 01/2020	1
42661-B2A30	LA250..S 品番有り	09/2016 - 01/2020	1
42661-B2A30	LA250..S #−ﾃﾝﾊﾟｰﾀｲﾔ,品番有り	09/2016 - 09/2019	1
42661-B2A60	LA250,260..FG,FGT,FX 品番有り	09/2016 - 01/2020	1
88723E - LABEL, COOLER SERVICE CAUTION
88733-B2051	LA250,260..CG,CGT,CX,S	09/2016 - 01/2020	1
88733-B2051	LA250,260..FG,FGT,FX	09/2016 - 12/2999	1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-B2010	LA250,260	09/2016 - 02/2020	1

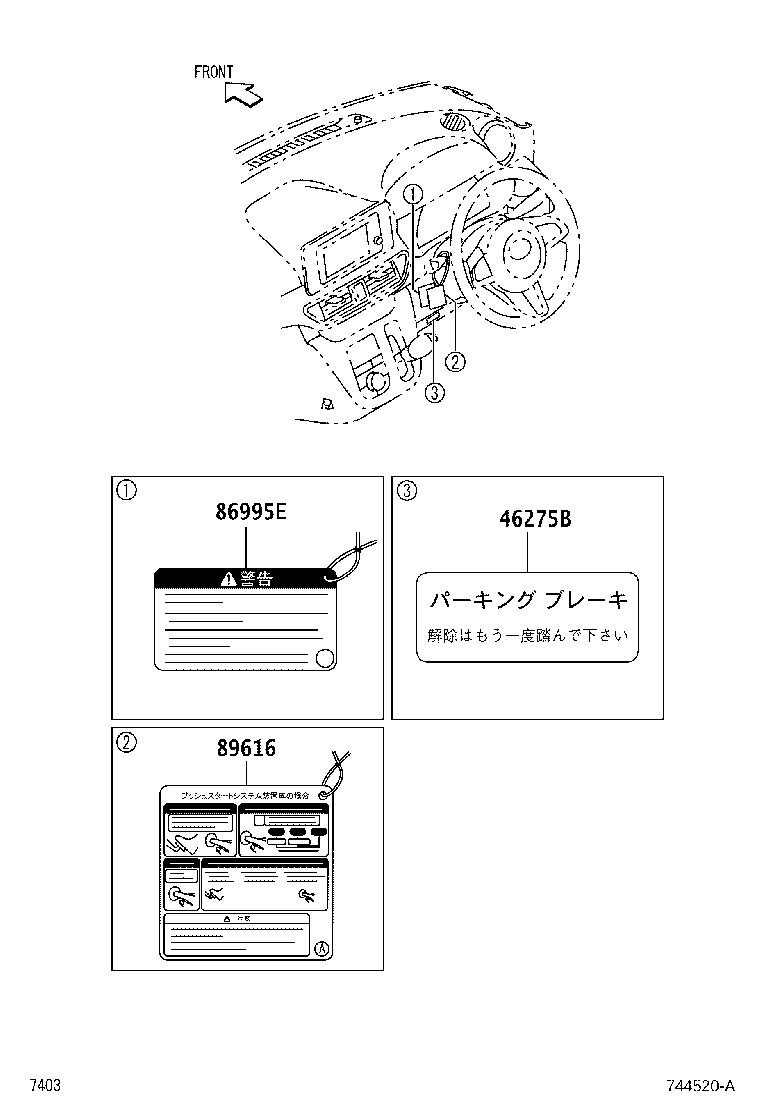

Click highlighted areas on diagram

ｺｰｼｮﾝﾗﾍﾞﾙｲﾝﾌｫﾒｰｼｮﾝﾗﾍﾞﾙ

Part #	Description	Period	Qty
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-B2010	LA250,260	09/2016 - 04/2018	1
86995E - LABEL, CAUTION
86995-B2100	LA250,260	09/2016 - 10/2017	1
89616 - LABEL, PUSH START INFORMATION
89616-B2020	LA250,260	09/2016 - 05/2018	1

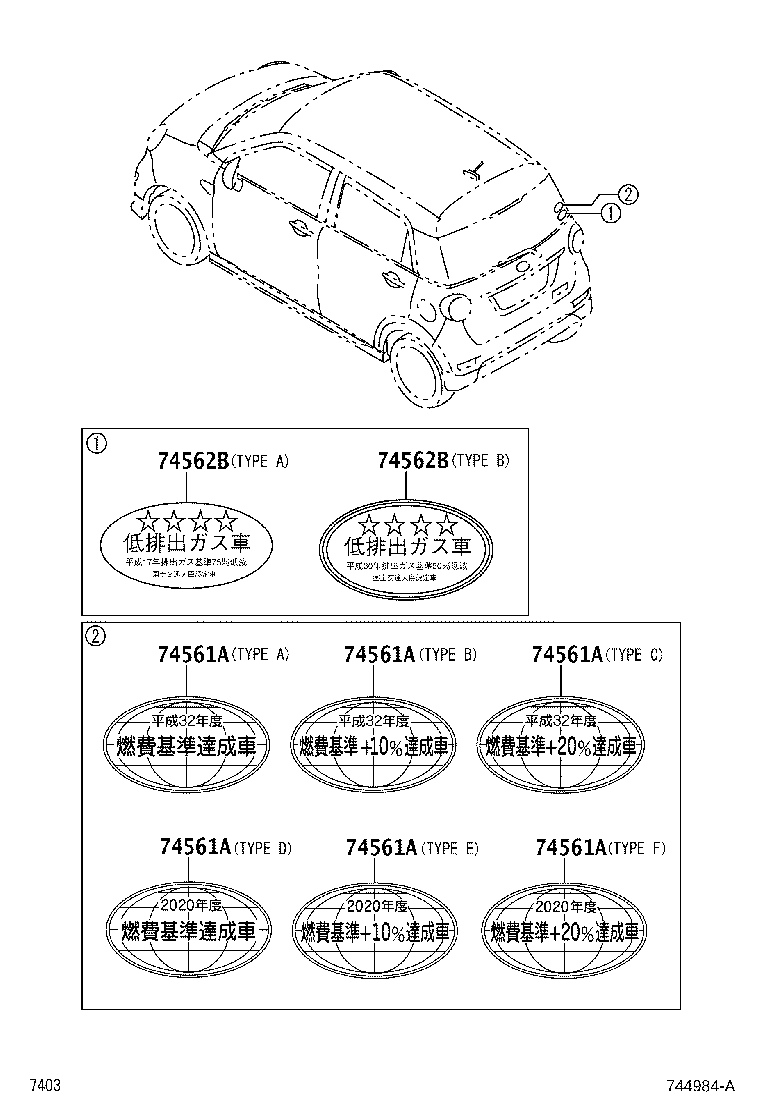

Click highlighted areas on diagram

ﾊｲｷｶﾞｽｷｾｲｼｰﾙ

Part #	Description	Period	Qty
74561A - LABEL, FUEL CONSUMPTION INFORMATION
75459-B2340	LA250..CG,CX,FG,FX ﾀｲﾌﾟ C	09/2016 - 04/2019	1
75459-B2330	LA250..S;LA260..CGT,FGT,S ﾀｲﾌﾟ A	09/2016 - 04/2019	1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
75459-B2340	LA250..CG,CX,FG,FX ﾀｲﾌﾟ C	09/2016 - 04/2019	1
75459-B2330	LA250..S;LA260..CGT,FGT,S ﾀｲﾌﾟ A	09/2016 - 04/2019	1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
75459-B2340	LA250..CG,CX,FG,FX ﾀｲﾌﾟ C	09/2016 - 04/2019	1
75459-B2330	LA250..S;LA260..CGT,FGT,S ﾀｲﾌﾟ A	09/2016 - 04/2019	1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
75459-B2340	LA250..CG,CX,FG,FX ﾀｲﾌﾟ C	09/2016 - 04/2019	1
75459-B2330	LA250..S;LA260..CGT,FGT,S ﾀｲﾌﾟ A	09/2016 - 04/2019	1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
75459-B2340	LA250..CG,CX,FG,FX ﾀｲﾌﾟ C	09/2016 - 04/2019	1
75459-B2330	LA250..S;LA260..CGT,FGT,S ﾀｲﾌﾟ A	09/2016 - 04/2019	1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
75459-B2340	LA250..CG,CX,FG,FX ﾀｲﾌﾟ C	09/2016 - 04/2019	1
75459-B2330	LA250..S;LA260..CGT,FGT,S ﾀｲﾌﾟ A	09/2016 - 04/2019	1
74562B - LABEL, EMISSION INFORMATION
75459-B2040	LA250,260	09/2016 - 04/2019	1
74562B - LABEL, EMISSION INFORMATION
75459-B2040	LA250,260	09/2016 - 04/2019	1

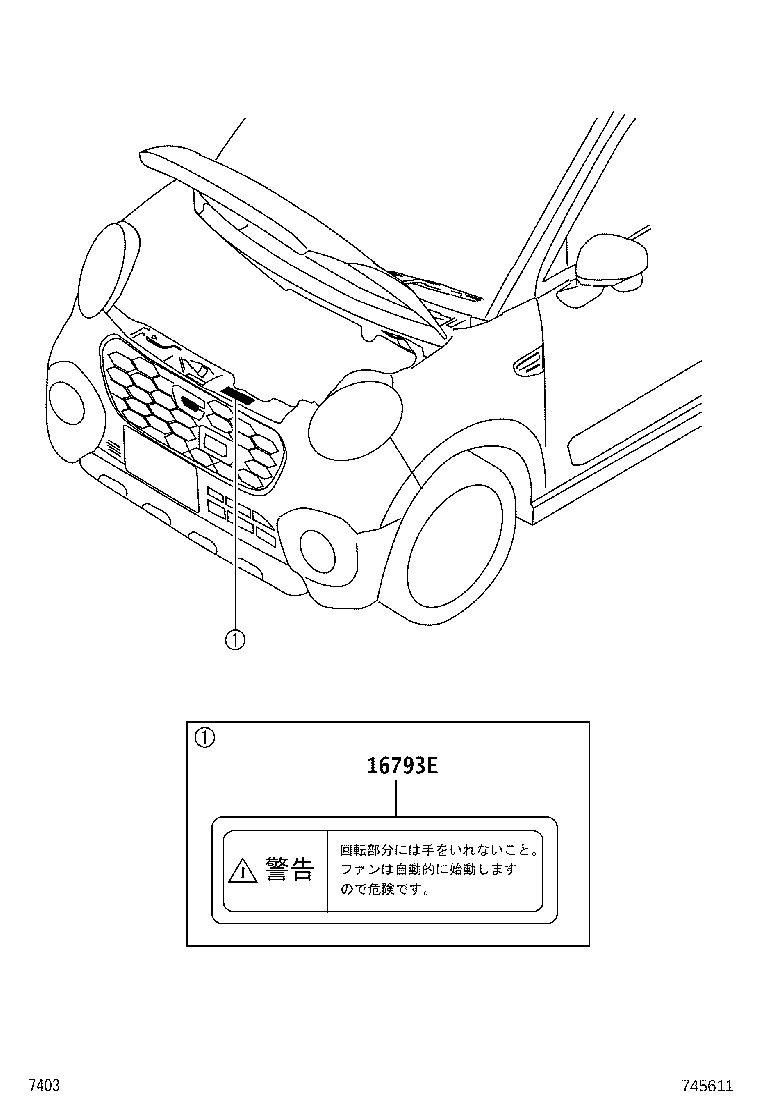

Click highlighted areas on diagram

ｺｰｼｮﾝﾗﾍﾞﾙｲﾝﾌｫﾒｰｼｮﾝﾗﾍﾞﾙ

Part #	Description	Period	Qty	Price
16793E - LABEL, COOLING FAN CAUTION
41991-B2040	KFV#..LA250,260	09/2016 - 12/2999	1

Part #

Description

Qty

Price

16793E - LABEL, COOLING FAN CAUTION

41991-B2040

KFV#..LA250,260
