LA250A-GBVF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )KFVE

Click highlighted areas on diagram

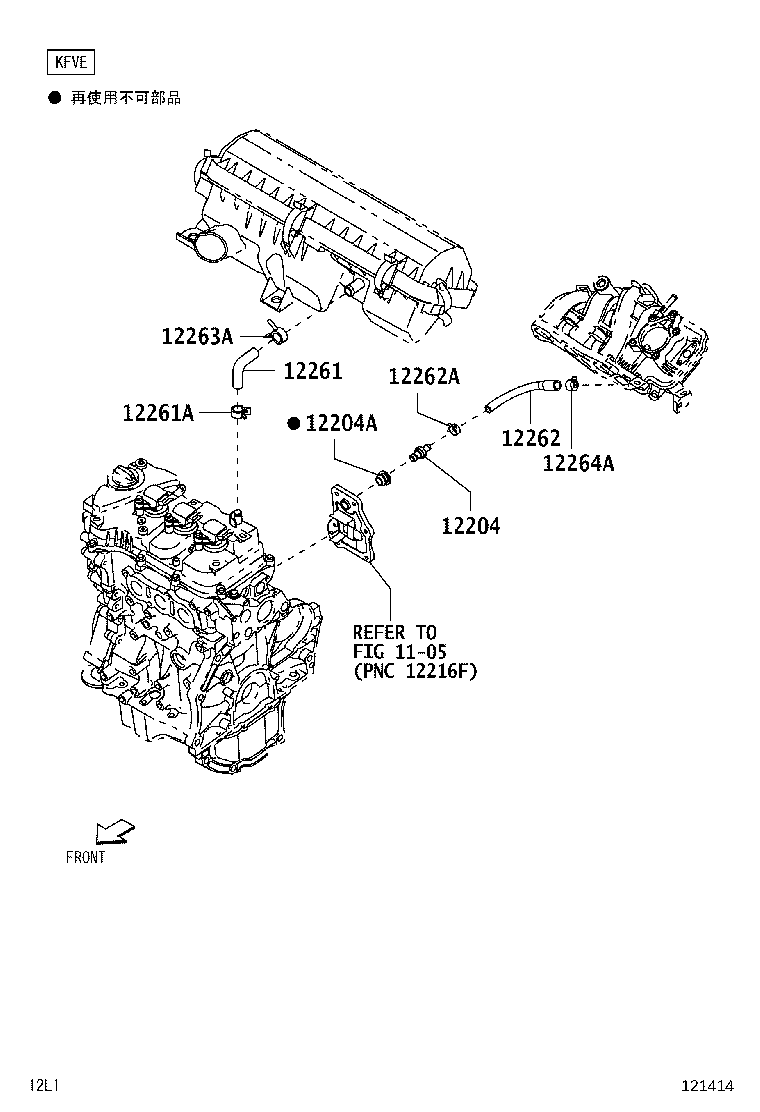

diagram 1105 12204 12204A 12261 12261A 12262 12262A 12263A 12264A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-B2010

KFV#..LA250,260..FG,FGT,FX

 1
12204-B2010

KFV#..LA250,260..CG,CGT,CX,S

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90044-80652

KFV#..LA250,260..CG,CGT,CX,S

 1
90044-80652

KFV#..LA250,260..FG,FGT,FX

 1
12261 - HOSE, VENTILATION
12261-B2040

KFVE..LA250,260

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
96136-41901

KFVE..LA250,260..FG,FX

 1
12262 - HOSE, VENTILATION, NO.2
12261-B2051

KFV#..LA250,260

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90044-67314

KFV#..LA250,260..FG,FGT,FX

 1
90044-67314

KFV#..LA250,260..CG,CGT,CX,S

 1
12263A - CLIP(FOR VENTILATION HOSE)
90044-66026

KFVE..LA250,260..FG,FX

 1
12264A - CLIP(FOR VENTILATION HOSE)
96137-41901

KFV#..LA250,260..FG,FGT,FX

 1
96137-41901

KFV#..LA250,260..CG,CGT,CX,S

 1
Linked diagrams
1105
