LA250A-GBVF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

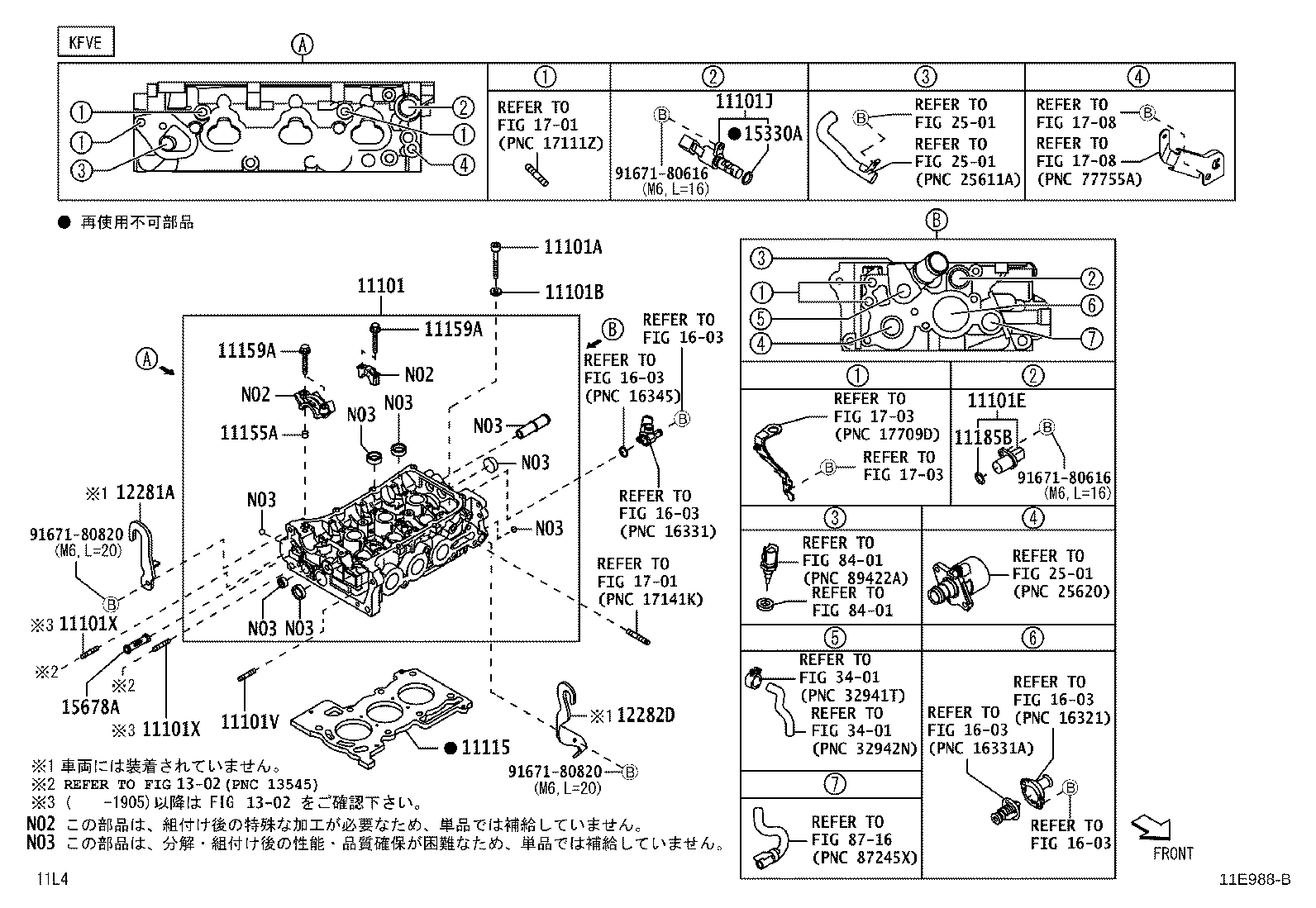

(1609- )KFVE

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101E 11101J 11101V 11101X 11101X 11115 11155A 11159A 11159A 11185B 12281A 12282D 1302 1302 15330A 15678A 1603 1603 1603 1603 1603 1603 1701 1701 1703 1703 1708 1708 2501 2501 2501 3401 3401 8401 8401 8716 9167180616 9167180616 9167180820 9167180820
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-B2211

KFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90041-09258

KFV#..LA250,260

 8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90042-01637

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 8
11101E - SENSOR, CAM POSITION
19311-B2011

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-B2020

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
92132-81040

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
11101X - BOLT(FOR CYLINDER HEAD SET SUB)
92122-80630

KFV#..LA250,260

 2
11101X - BOLT(FOR CYLINDER HEAD SET SUB)
92122-80630

KFV#..LA250,260

 2
11115 - GASKET, CYLINDER HEAD
11115-B2042

KFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1

 1
11155A - PIN, RING W/HEAD
90042-53010

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911

KFV#..LA250,260

 16
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911

KFV#..LA250,260

 16
11185B - RING, O
9004C-30008

KFV#..LA250,260

 1
12281A - HANGER, ENGINE, NO.1
12281-B2010

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
12282D - HANGER, ENGINE, NO.2
12282-B2070

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90043-01262

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
15678A - FILTER, OIL CONTROL VALVE
15678-B2020

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
Common parts
91671-80616
91671-80820
Linked diagrams
1302
1603
1701
1703
1708
2501
3401
8401
8716

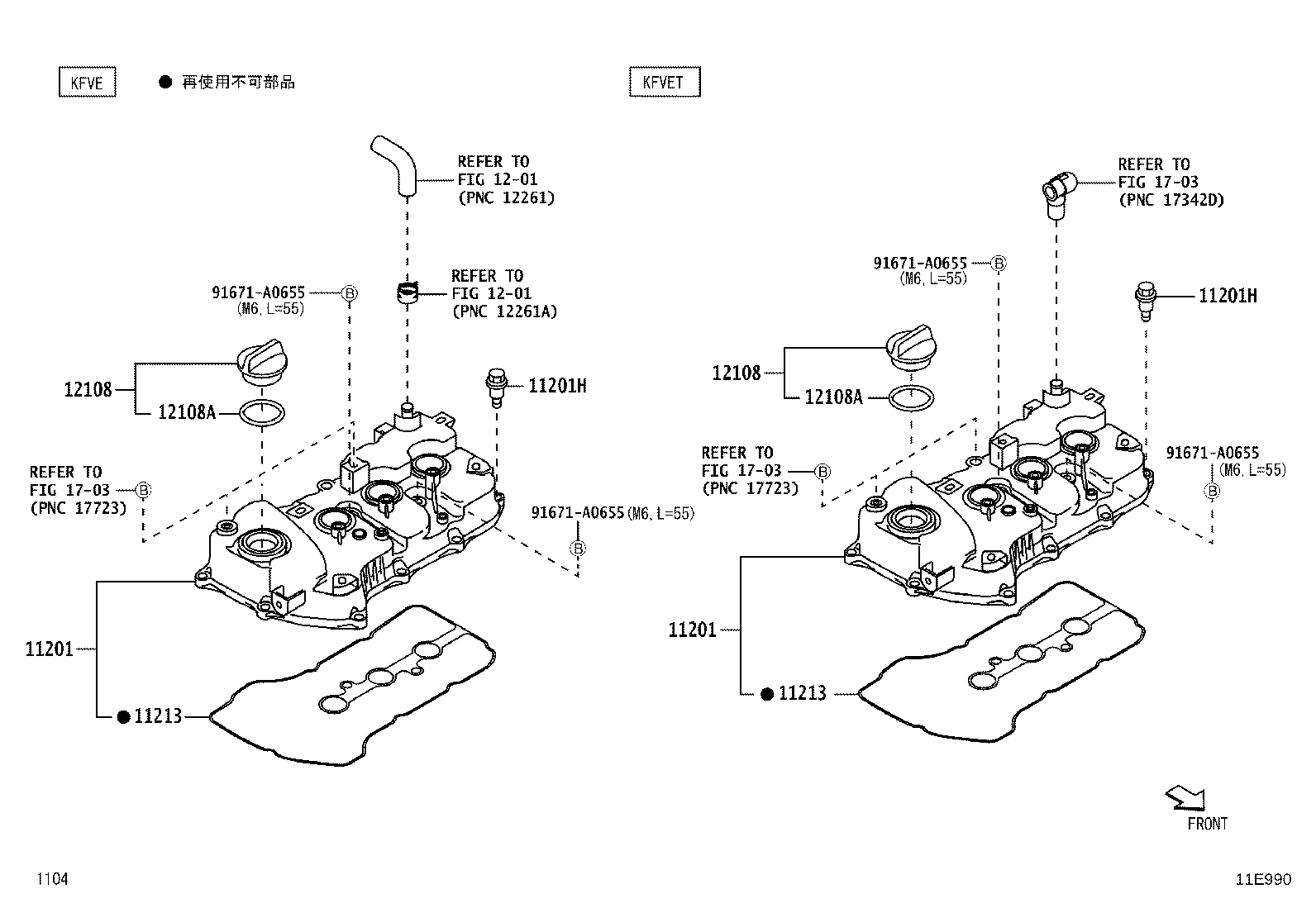

(1609- )

Click highlighted areas on diagram

diagram 11201 11201 11201H 11201H 11213 11213 1201 1201 12108 12108 12108A 12108A 1703 1703 1703 91671A0655 91671A0655 91671A0655 91671A0655
Part # Description Qty Price
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-B2014

KFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1

･

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-B2014

KFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1

･

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90041-09271

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 10
11201H - BOLT(FOR CYLINDER HEAD COVER)
90041-09271

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 10
11213 - GASKET, CYLINDER HEAD COVER
11213-B2011

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-B2011

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-97201

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-97201

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-87206

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-87206

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
Common parts
91671-A0655
Linked diagrams
1201
1703
