LA250A-GBPF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

Click highlighted areas on diagram

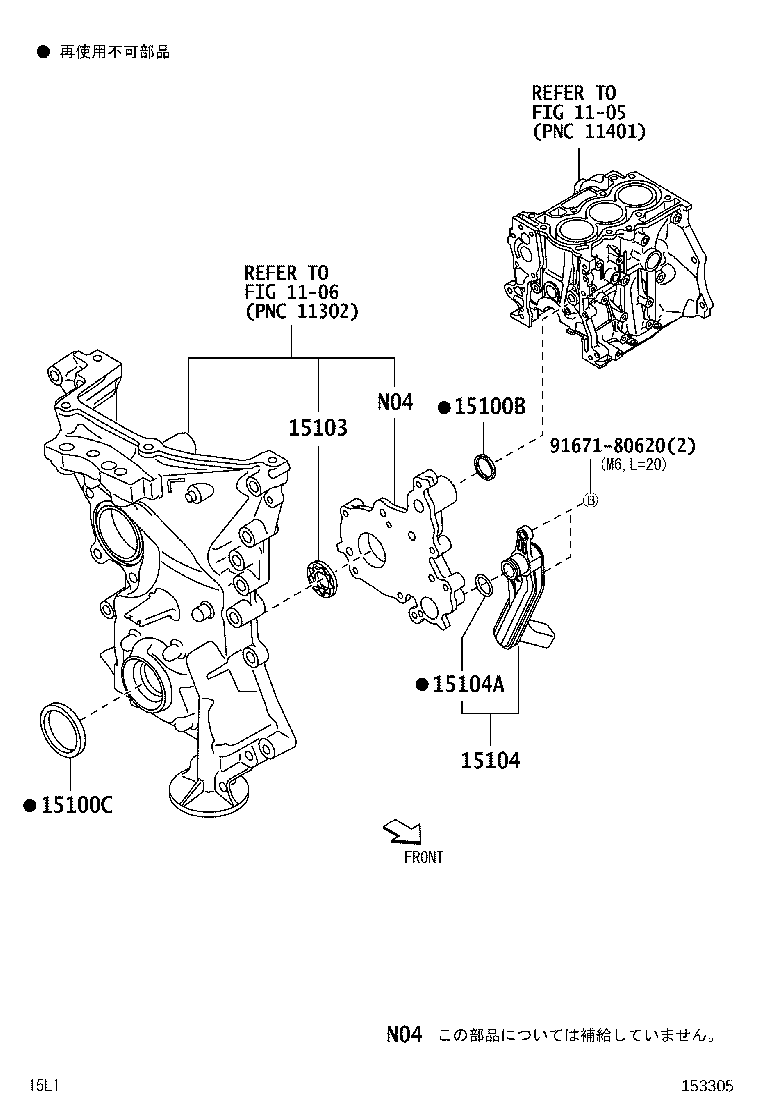

diagram 1105 1106 15100B 15100C 15103 15104 15104A 9167180620
Part # Description Qty Price
15100B - RING, O(FOR OIL PUMP)
90043-01325

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
15100C - SEAL(FOR OIL PUMP)
90043-11438

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
15103 - GEAR SET, OIL PUMP
15103-B2011

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
15104 - STRAINER SUB-ASSY, OIL
15104-B2011

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
15104A - RING, O(FOR OIL STRAINER)
90043-01324

KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1

 1
Common parts
91671-80620
Linked diagrams
1105
1106
