LA250A-GBGZ (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )LA250

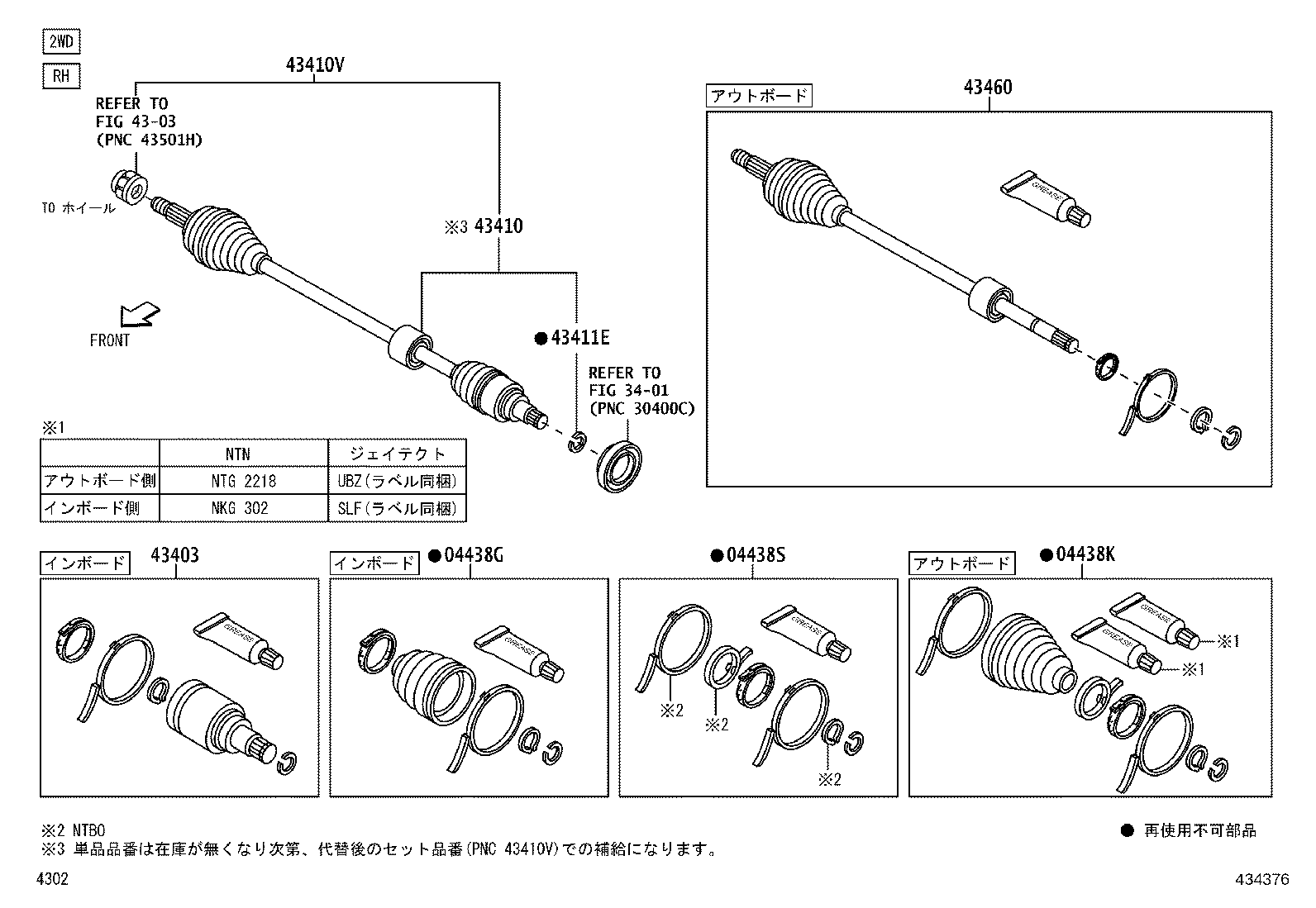

Click highlighted areas on diagram

2WD RH

diagram 04438G 04438K 04438S 3401 4303 43403 43410 43410V 43411E 43460
Part # Description Qty Price
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-B2300

LA260..FG,FX;LA250..CG,CX,FG,FX;LA260..(CG,CX)..PS1

 1
04437-B2020

LA250..CGT,FGT,S

 1
04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH
04425-B2220

LA260..FGT,S;LA250..CGT,FGT,S

 1
04425-B2201

LA260..FG,FX;LA250..CG,CX,FG,FX;LA260..(CG,CX)..PS1

 1
04438S - CLAMP KIT, FRONT DRIVE SHAFT, RH
04435-B2310

LA260..FG,FX;LA250..CG,CX,FG,FX;LA260..(CG,CX)..PS1

 1
04435-B2020

LA260..FGT,S;LA250..CGT,FGT,S

 1
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43408-B9450

LA250..CG,CX,FG,FX

 1
43408-B9350

LA250..CGT,FGT,S

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-B2440

LA250..CGT,FGT,S

 1
43410-B2381

LA250..CG,CX,FG,FX

 1
43410V - SHAFT SET, FRONT DRIVE, RH
43410-B9640

LA250..CG,CX,FG,FX

 1
43410-B9690

LA250..CGT,FGT,S

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90045-20232

LA250,260..CG,CX,FG,FX

 1
90045-20298

LA250,260..CGT,FGT,S

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43411-B9480

LA250..CGT,FGT,S

 1
43411-B9371

LA250..CG,CX,FG,FX

 1
Linked diagrams
3401
4303

(1609- )

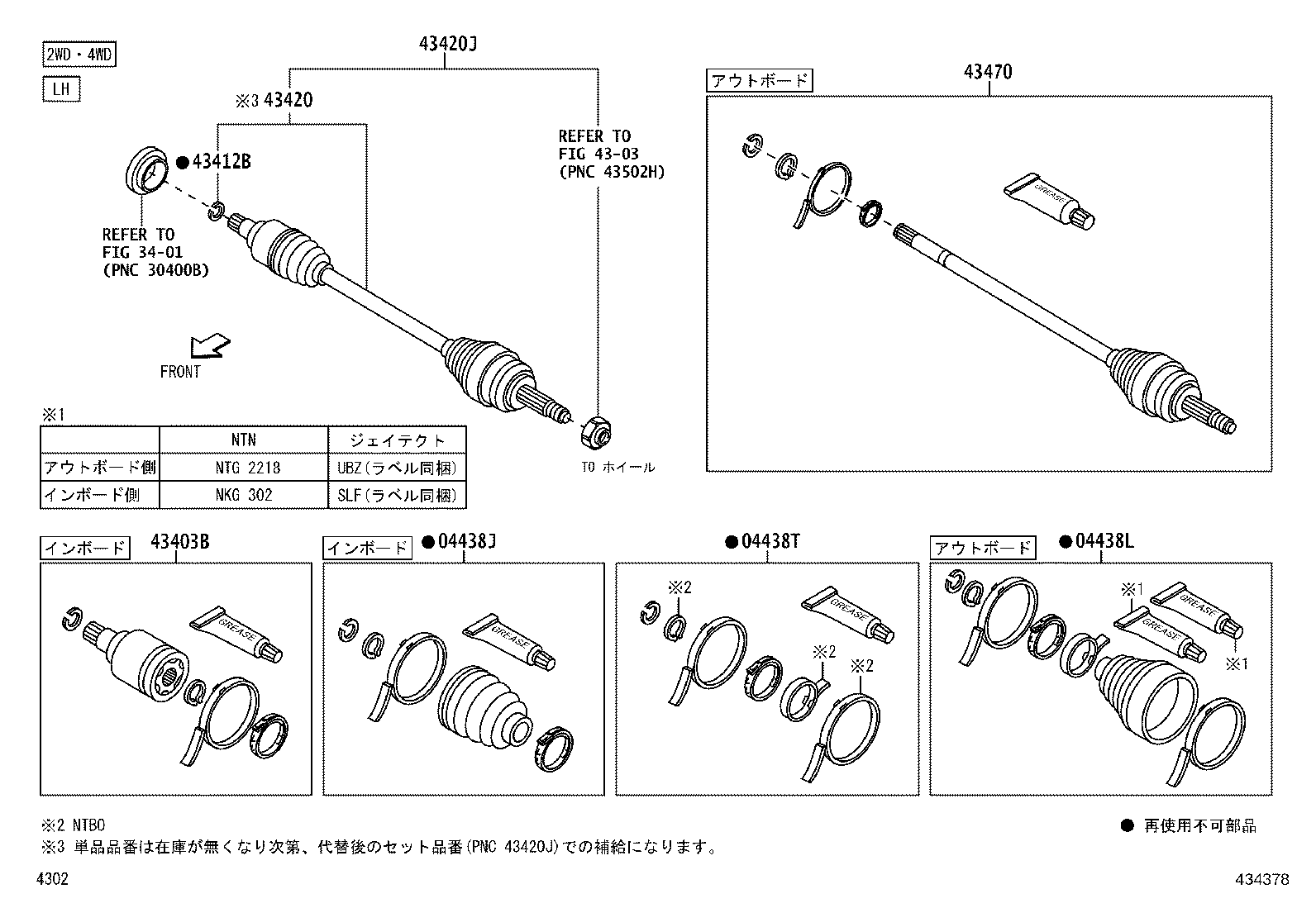

Click highlighted areas on diagram

2WD 4WD LH

diagram 04438J 04438L 04438T 3401 4303 43403B 43412B 43420 43420J 43470
Part # Description Qty Price
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-B2320

LA250,260..CGT

 1
04437-B2020

LA250,260..FGT,S

 1
04437-B2300

LA250,260..FG,FX;LA250,260..(CG,CX)..PS1

 1
04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH
04426-B2320

LA250,260..(FG,FX)..PS2;LA250,260..(CG,CX)..PS1

 1
04425-B2220

LA250,260..FGT,S

 1
04425-B2230

LA250,260..CGT

 1
04438T - CLAMP KIT, FRONT DRIVE SHAFT, LH
04435-B2320

LA250,260..CGT

 1
04436-B2310

LA250,260..(FG,FX)..PS2;LA250,260..(CG,CX)..PS1

 1
04435-B2020

LA250,260..FGT,S

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43408-B9470

LA250,260..CGT

 1
43408-B9350

LA250,260..FGT,S

 1
43408-B9450

LA250,260..FG,FX;LA250,260..(CG,CX)..PS1

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90045-20298

LA250,260..CGT,FGT,S

 1
90045-20232

LA250,260..CG,CX,FG,FX

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-B2250

LA250,260..CGT

 1
43420-B2230

LA250,260..FGT,S

 1
43420-B2300

LA250,260..(CG,CX)..PS1;LA250,260..(CG,CX,FG,FX)..PS2

 1
43420J - SHAFT SET, FRONT DRIVE, LH
43420-B9640

LA250,260..(FG,FX)..PS2;LA250,260..(CG,CX)..PS1

 1
43420-B9620

LA250,260..FGT,S

 1
43420-B9630

LA250,260..CGT

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43412-B9350

LA250,260..(FG,FX)..PS2;LA250,260..(CG,CX)..PS1

 1
43412-B9270

LA250,260..FGT,S

 1
43412-B9280

LA250,260..CGT

 1
Linked diagrams
3401
4303
