LA250A-GBGF2 (2017)
Toyota Pixis Joy
Production
Oct 2017
-
Jan 2020
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

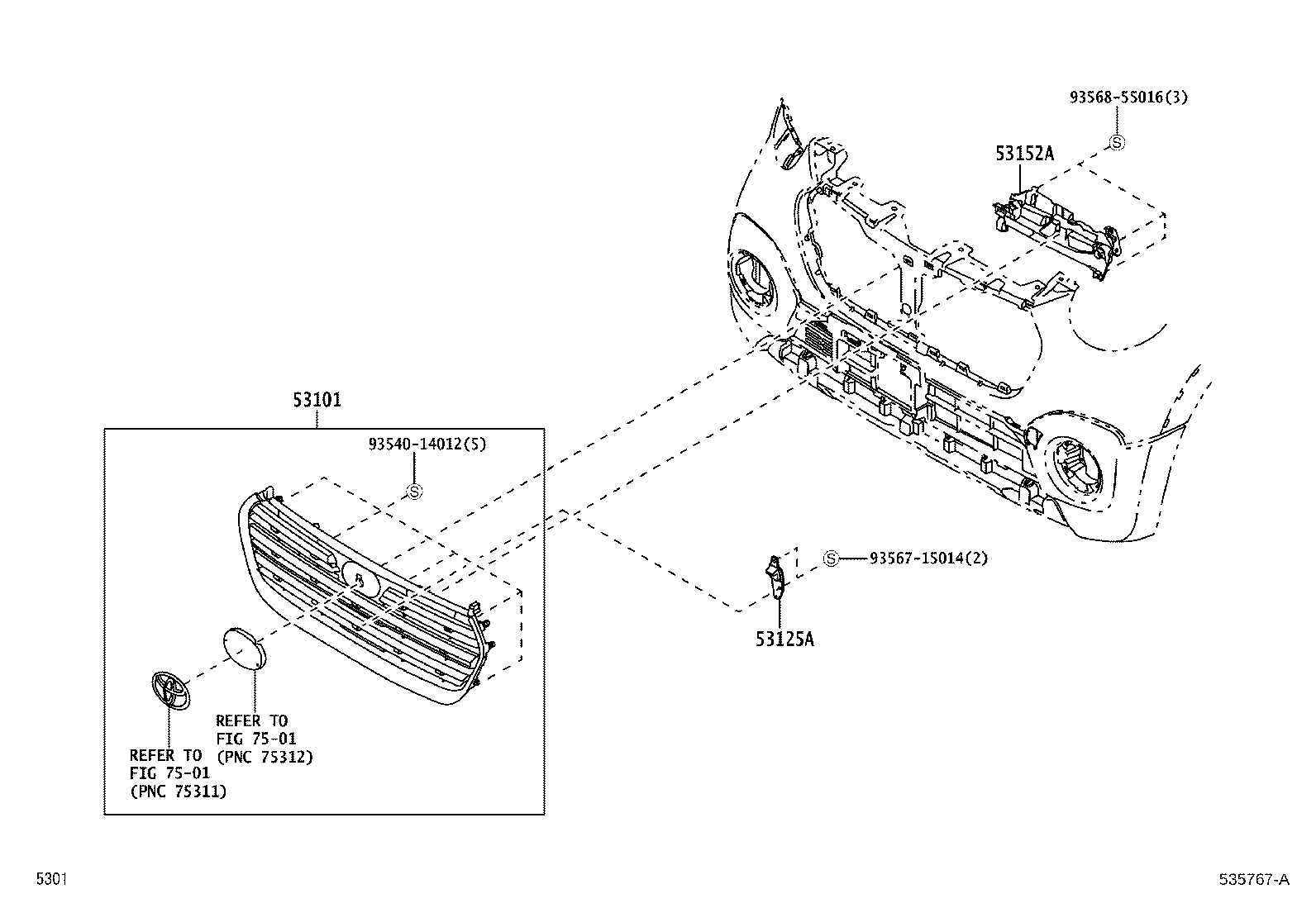

(1710- )CG,CGT,CX
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-B2630 |
LA250,260..S ﾀﾞｰｸﾒｯｷ |
1 | ||
| 53101-B2550 |
LA250,260..CG,CGT,CX ﾒｯｷ |
1 | ||
| 53125A - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-B2020 |
LA250,260..CG,CGT,CX |
1 | ||
| 53125-B2020 |
LA250,260..CG,CGT,CX ﾅﾋﾞｿｳﾋﾞﾖｳﾊﾟｯｸ |
1 | ||
| 53125-B2030 |
LA250,260..S |
1 | ||
| 53152A - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-B2070 |
LA250,260..CG,CGT,CX,S ﾌﾞﾗｯｸ |
1 | ||
| Common parts | ||||
| 93540-14012 | ||||
| 93567-15014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7501 | ||||

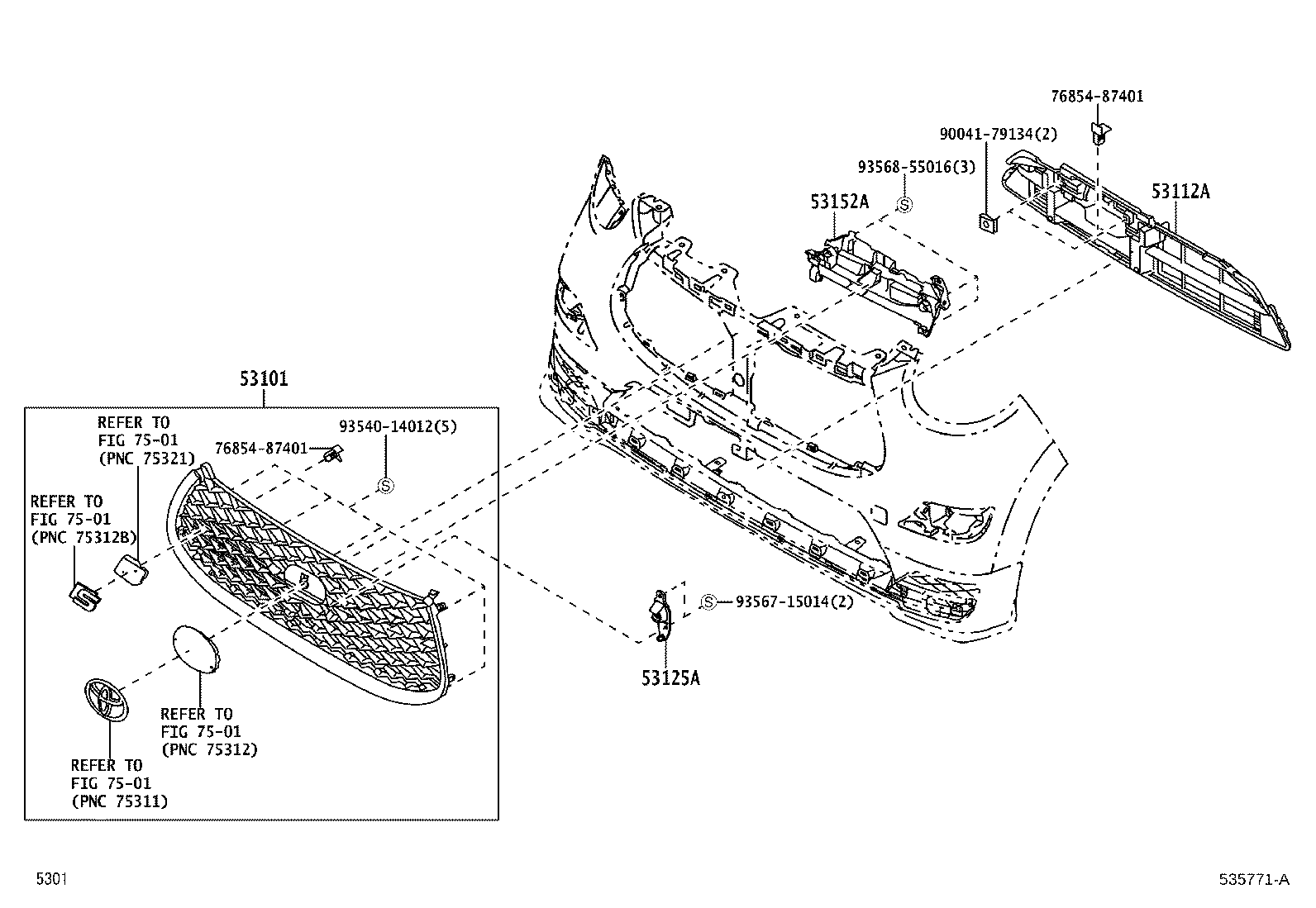

(1710- )S
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-B2630 |
LA250,260..S ﾀﾞｰｸﾒｯｷ |
1 | ||
| 53101-B2550 |
LA250,260..CG,CGT,CX ﾒｯｷ |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-B2190 |
LA250,260..S..PS2 |
1 | ||
| 53125A - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-B2020 |
LA250,260..CG,CGT,CX |
1 | ||
| 53125-B2020 |
LA250,260..CG,CGT,CX ﾅﾋﾞｿｳﾋﾞﾖｳﾊﾟｯｸ |
1 | ||
| 53125-B2030 |
LA250,260..S |
1 | ||
| 53152A - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-B2070 |
LA250,260..CG,CGT,CX,S ﾌﾞﾗｯｸ |
1 | ||
| Common parts | ||||
| 76854-87401 | ||||
| 90041-79134 | ||||
| 93540-14012 | ||||
| 93567-15014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7501 | ||||
