Toyota Pixis joy LA250A FUEL TANK & TUBE

LA250A-GBGF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

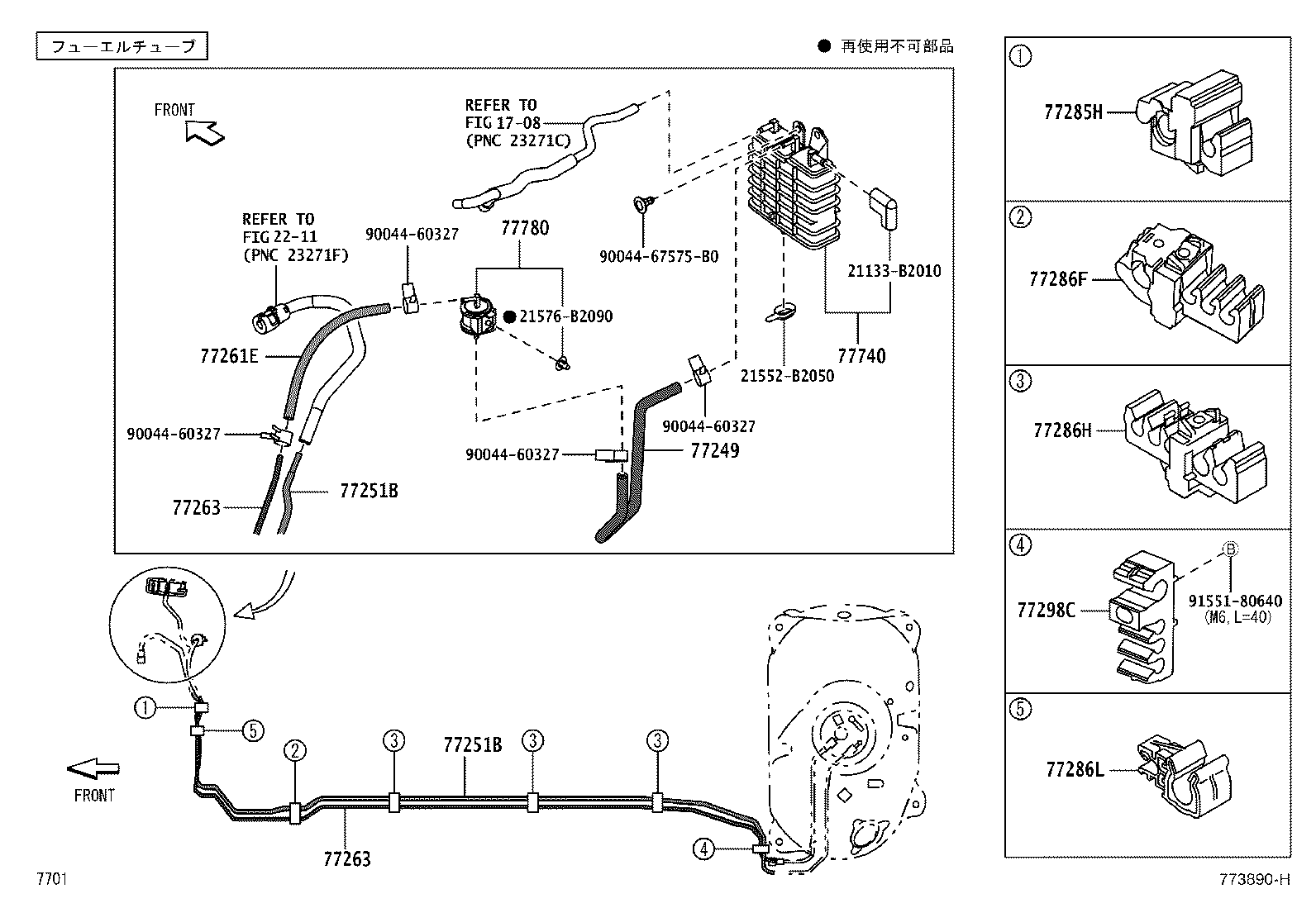

ﾌｭｰｴﾙﾁｭｰﾌﾞ

Part #	Description	Period	Qty
77249 - HOSE, FUEL EMISSION
77249-B2040	LA250,260	09/2016 - 12/2999	1
77251B - TUBE, FUEL MAIN
77251-B2300	LA250,260	09/2016 - 12/2999	1
77251B - TUBE, FUEL MAIN
77251-B2300	LA250,260	09/2016 - 12/2999	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-04095	LA250,260 *H,L=220	09/2016 - 12/2999	1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B2300	LA250,260	09/2016 - 12/2999	1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B2300	LA250,260	09/2016 - 12/2999	1
77285H - CLAMP, FUEL TUBE, NO.1
47371-B2070	LA250,260	09/2016 - 11/2017	1
77286F - CLAMP, FUEL TUBE, NO.2
47371-B2020	LA250,260	09/2016 - 12/2999	1
77286H - CLAMP, FUEL TUBE, NO.3
90044-64888	LA250,260	09/2016 - 12/2999	3
77298C - CLAMP, FUEL TUBE, NO.4
90044-64890	LA250,260	09/2016 - 12/2999	1
77740 - CANISTER ASSY, CHARCOAL
77740-B2090	LA250,260	09/2016 - 12/2999	1
77780 - VALVE ASSY, PURGE CONTROL
17660-B2020	LA250,260	09/2016 - 05/2019	1
Common parts
21133-B2010
21552-B2050
21576-B2090
90044-60327
90044-67575B0
91551-80640
Linked diagrams
1708
2211

Click highlighted areas on diagram

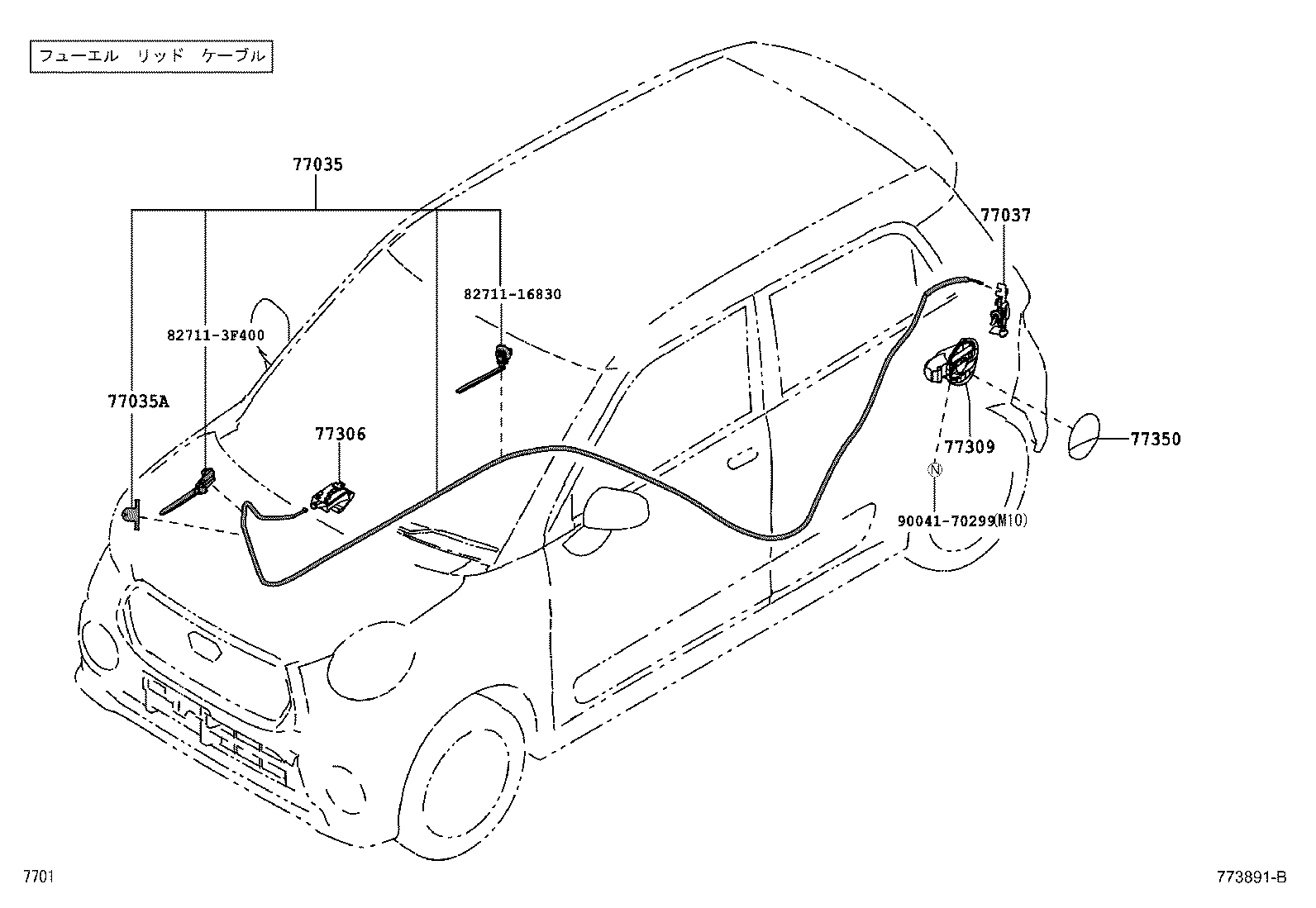

ﾌｭｰｴﾙﾘｯﾄﾞｹｰﾌﾞﾙ

Part #	Description	Period	Qty
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-B2240	LA250,260	09/2016 - 12/2999	1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
82711-B2450	LA250,260	09/2016 - 12/2999	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-B2030	LA250,260	09/2016 - 10/2017	1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-B2010B2	LA250,260..S DK.GRAY,TRIM1#	09/2016 - 01/2020	1
77306-B2010B2	LA250,260..CG,CGT,CX DK.GRAY,TRIM1#,2#	09/2016 - 01/2020	1
77309 - HINGE SUB-ASSY, FUEL INLET BOX COVER
77308-B2090	LA250,260	09/2016 - 12/2999	1
77350 - LID ASSY, FUEL FILLER OPENING
77351-B2380	LA250,260	09/2016 - 12/2999	1
Common parts
82711-16830
82711-3F400
90041-70299

Click highlighted areas on diagram

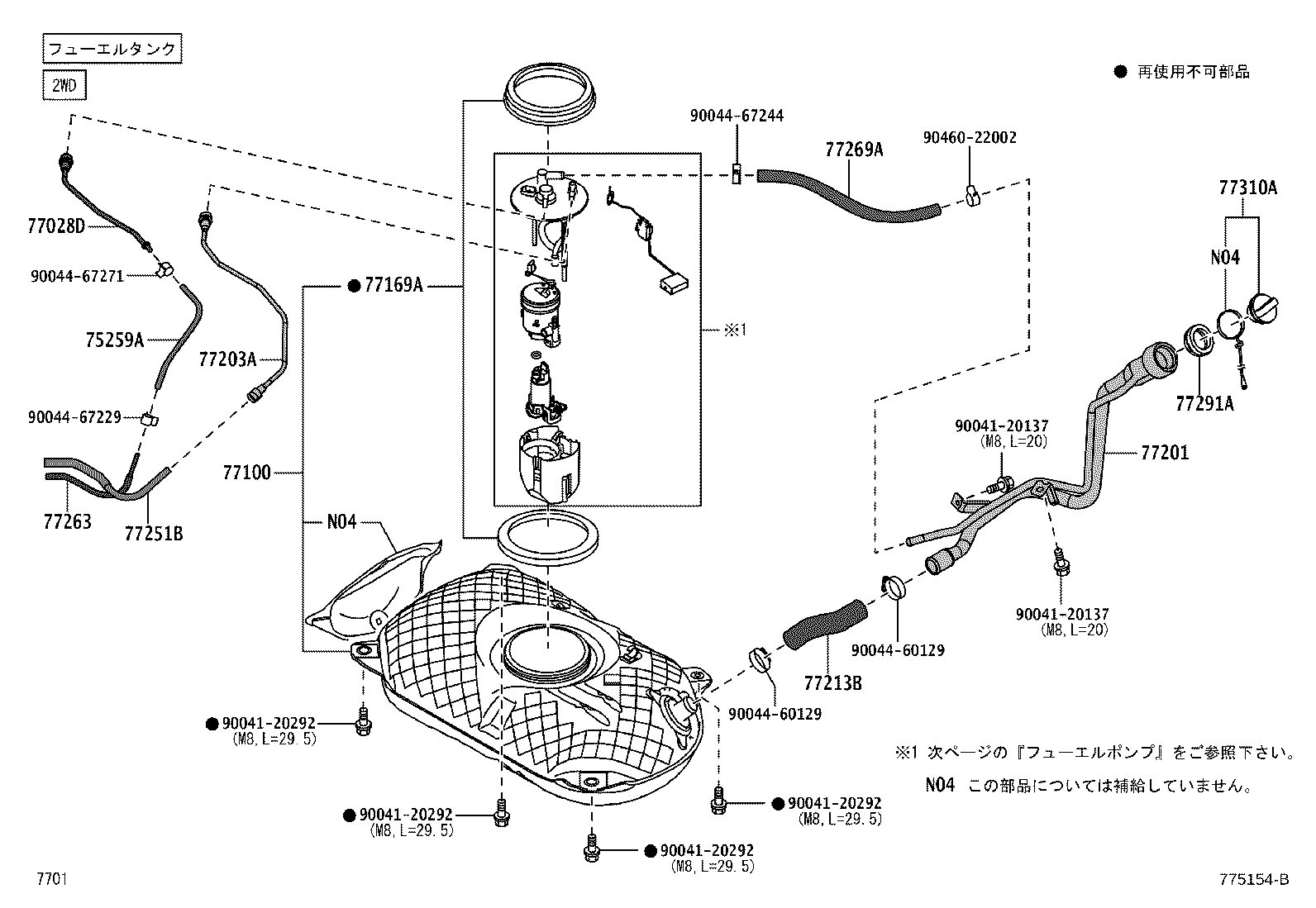

ﾌｭｰｴﾙﾀﾝｸ(2WD)

Part #	Description	Period	Qty
75259A - HOSE, FUEL
77259-B2050	LA250,260	09/2016 - 12/2999	1
77028D - TUBE SUB-ASSY, FUEL EMISSION, REAR
77028-B2010	LA250	09/2016 - 12/2999	1
77100 - TANK ASSY, FUEL
77001-B2180	LA250	09/2016 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-B2030	LA250	09/2016 - 12/2999	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-B2410	LA250	09/2016 - 12/2999	1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-B2060	LA250	09/2016 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-B2110	LA250	09/2016 - 12/2999	1
77251B - TUBE, FUEL MAIN
77251-B2300	LA250,260	09/2016 - 12/2999	1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B2300	LA250,260	09/2016 - 12/2999	1
77269A - HOSE, FUEL TANK BREATHER
77269-B2080	LA250	09/2016 - 12/2999	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-B2060	LA250,260	09/2016 - 12/2999	1
77310A - CAP ASSY, FUEL TANK
77300-52030	LA250,260 ｽﾄﾗｯﾌﾟｱﾘ (ﾌﾞﾗｯｸ)	09/2016 - 12/2999	1
Common parts
90041-20137
90041-20292
90044-60129
90044-67229
90044-67244
90044-67271
90460-22002

Click highlighted areas on diagram

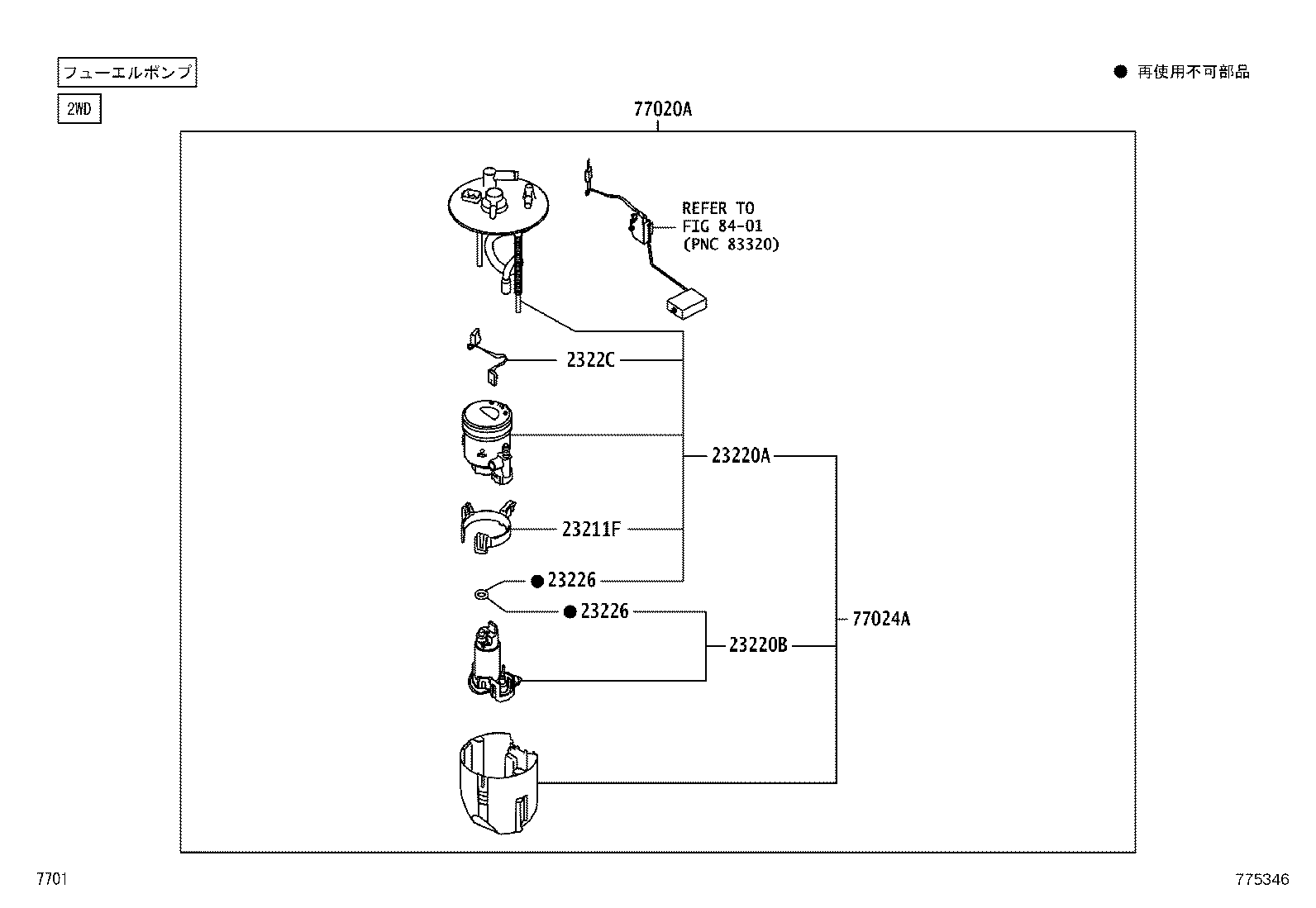

ﾌｭｰｴﾙﾎﾟﾝﾌﾟ(2WD)

Part #	Description	Period	Qty
23211F - BRACKET
23266-B2010	KFV#..LA250	09/2016 - 12/2999	1
23220A - PUMP ASSY, FUEL W/FILTER
23908-B2140	KFV#..LA250	09/2016 - 12/2999	1
23220B - PUMP ASSY, FUEL W/FILTER
23220-B2020	KFV#..LA250	09/2016 - 12/2999	1
23226 - RING, O(FOR FUEL PUMP)
23532-87101	KFV#..LA250	09/2016 - 12/2999	1
23226 - RING, O(FOR FUEL PUMP)
23532-87101	KFV#..LA250	09/2016 - 12/2999	1
2322C - HARNESS, FUEL PUMP WIRE
2322C-B2010	KFV#..LA250	09/2016 - 12/2999	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
23210-B2200	LA250	09/2016 - 12/2999	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
23100-B2290	LA250	09/2016 - 12/2999	1
Linked diagrams
8401
