LA250A-GBGF (2016)
Toyota Pixis Joy

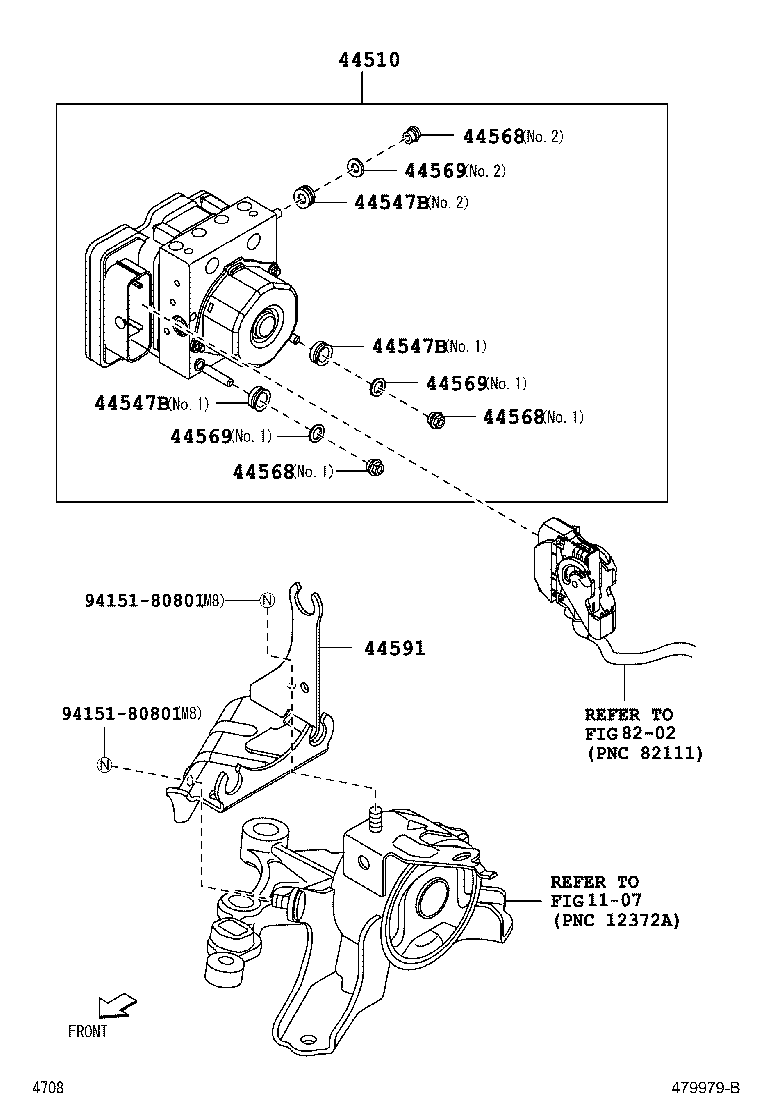

ILLUST NO. 2 OF 2(1609- )
ILLUST NO.2 OF 2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-B2F30 |
LA250..S |
1 | ||
| 44050-B2E11 |
LA250..CG,CGT,CX |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-B2050 |
LA250,260..CG,CGT,CX,S NO.2 |
1 | ||
| 44547-B2040 |
LA250,260..CG,CGT,CX,S NO.1 |
2 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-B2050 |
LA250,260..CG,CGT,CX,S NO.2 |
1 | ||
| 44547-B2040 |
LA250,260..CG,CGT,CX,S NO.1 |
2 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-B2050 |
LA250,260..CG,CGT,CX,S NO.2 |
1 | ||
| 44547-B2040 |
LA250,260..CG,CGT,CX,S NO.1 |
2 | ||
| 44568 - NUT, BRAKE ACTUATOR | ||||
| 44517-B2010 |
LA250..CG,CGT,CX NO.1 |
2 | ||
| 44517-B2010 |
LA250,260..CG,CGT,CX,S NO.1 (M6) |
2 | ||
| 44517-B2020 |
LA250,260..CG,CGT,CX,S NO.2 (M6) |
1 | ||
| 44517-B2020 |
LA250..CG,CGT,CX NO.2 |
1 | ||
| 44568 - NUT, BRAKE ACTUATOR | ||||
| 44517-B2010 |
LA250..CG,CGT,CX NO.1 |
2 | ||
| 44517-B2010 |
LA250,260..CG,CGT,CX,S NO.1 (M6) |
2 | ||
| 44517-B2020 |
LA250,260..CG,CGT,CX,S NO.2 (M6) |
1 | ||
| 44517-B2020 |
LA250..CG,CGT,CX NO.2 |
1 | ||
| 44568 - NUT, BRAKE ACTUATOR | ||||
| 44517-B2010 |
LA250..CG,CGT,CX NO.1 |
2 | ||
| 44517-B2010 |
LA250,260..CG,CGT,CX,S NO.1 (M6) |
2 | ||
| 44517-B2020 |
LA250,260..CG,CGT,CX,S NO.2 (M6) |
1 | ||
| 44517-B2020 |
LA250..CG,CGT,CX NO.2 |
1 | ||
| 44569 - WASHER, BRAKE ACTUATOR | ||||
| 44537-B2020 |
LA250,260..CG,CGT,CX,S NO.2 |
1 | ||
| 44537-B2010 |
LA250,260..CG,CGT,CX,S NO.1 |
2 | ||
| 44569 - WASHER, BRAKE ACTUATOR | ||||
| 44537-B2020 |
LA250,260..CG,CGT,CX,S NO.2 |
1 | ||
| 44537-B2010 |
LA250,260..CG,CGT,CX,S NO.1 |
2 | ||
| 44569 - WASHER, BRAKE ACTUATOR | ||||
| 44537-B2020 |
LA250,260..CG,CGT,CX,S NO.2 |
1 | ||
| 44537-B2010 |
LA250,260..CG,CGT,CX,S NO.1 |
2 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-B2190 |
LA250,260..CG,CGT,CX,S |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 8202 | ||||

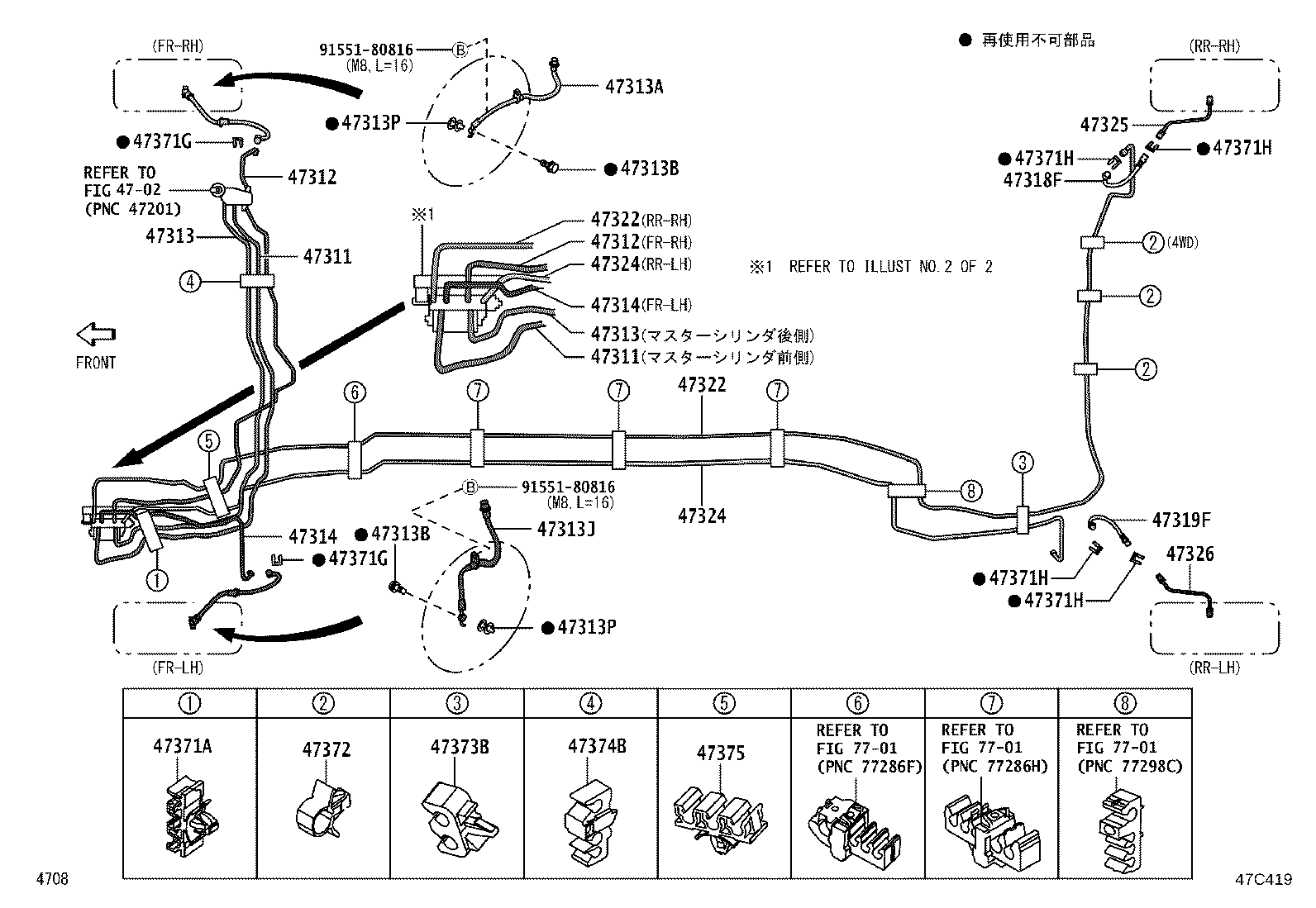

ILLUST NO. 1 OF 2(1609- )
ILLUST NO.1 OF 2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-B2570 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-B2570 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B2440 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B2440 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B2540 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B2540 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22304 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
LA250,260..CG,CGT,CX,S |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
LA250,260..CG,CGT,CX,S |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90049-22305 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
LA250,260..CG,CGT,CX,S |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
LA250,260..CG,CGT,CX,S |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B2320 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B2320 |
LA250,260..CG,CGT,CX,S |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90049-22202 |
LA250..CG,CGT,CX,S |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90049-22202 |
LA250..CG,CGT,CX,S |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B2700 |
LA250..CG,CGT,CX,S |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B2700 |
LA250..CG,CGT,CX,S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B2690 |
LA250..CG,CGT,CX,S |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B2690 |
LA250..CG,CGT,CX,S |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-B2090 |
LA250..CG,CGT,CX,S |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-B2090 |
LA250..CG,CGT,CX,S |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47372-B2030 |
LA250,260..CG,CGT,CX,S 識別色 = 水色 |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
LA250,260..CG,CGT,CX,S |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
LA250,260..CG,CGT,CX,S |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-65441 |
LA250,260..CG,CGT,CX,S |
4 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-65441 |
LA250,260..CG,CGT,CX,S |
4 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-65441 |
LA250,260..CG,CGT,CX,S |
4 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-65441 |
LA250,260..CG,CGT,CX,S |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90044-64889 |
LA250 識別色 = 黄 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64891 |
LA250,260..CG,CGT,CX,S 識別色 = 黄 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90044-64892 |
LA250,260..CG,CGT,CX,S 識別色 = 水色 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-B2070 |
LA250,260..CG,CGT,CX,S 識別色 = 緑 |
1 | ||
| Common parts | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
