LA360A-GBRF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

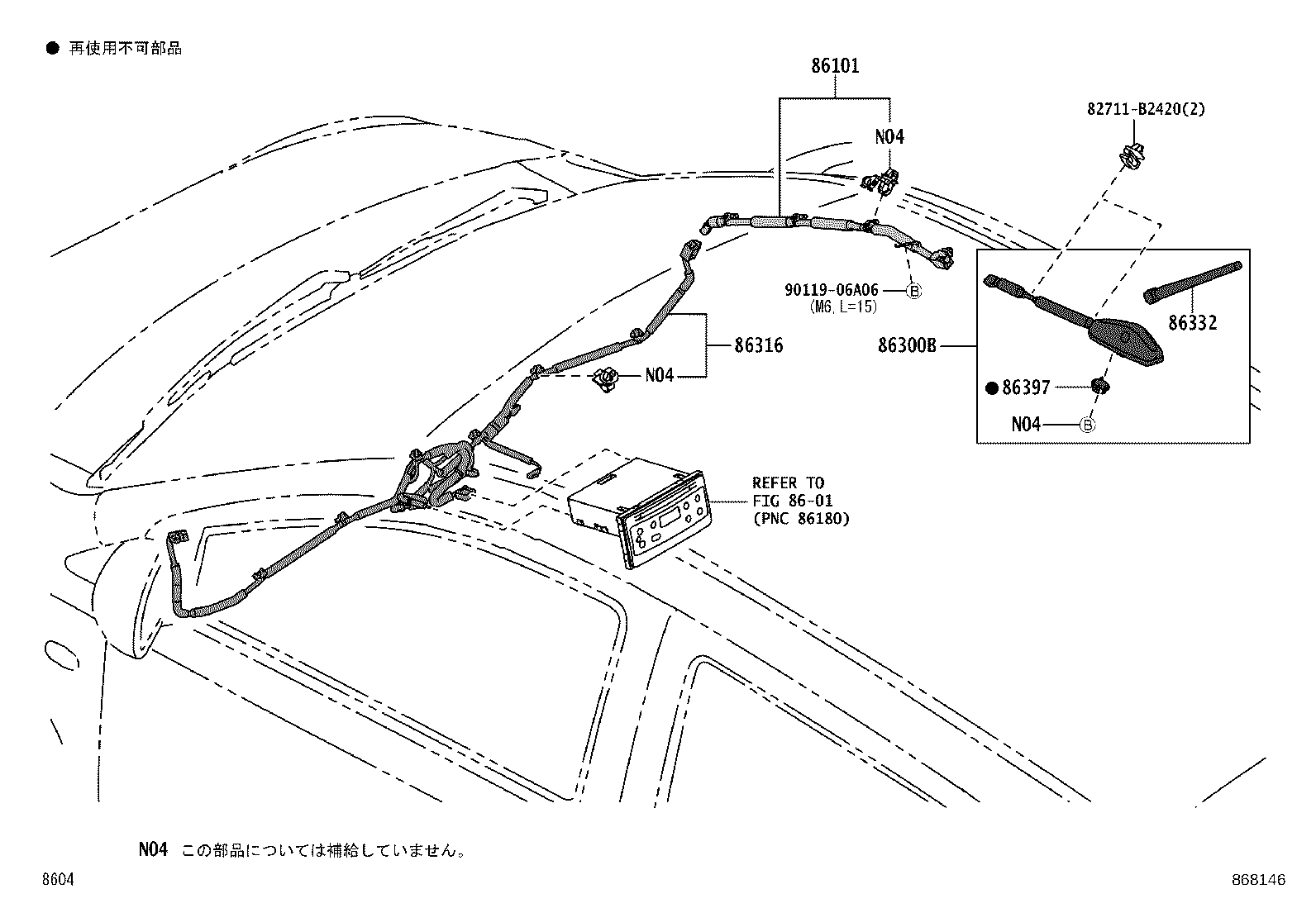

Click highlighted areas on diagram

diagram 82711B2420 8601 86101 86300B 86316 86332 86397 9011906A06
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86316-B2810

LA350,360

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-B2491

LA350,360

 1
86300-B2490

LA350,360

 1
86316 - CABLE, ANTENNA
86159-B2410

LA350,360

ｵｰﾃﾞｨｵ−ﾊﾞｯｸｶﾒﾗ+ｽﾋﾟｰｶｰ(16CM*2)

 1
86316-B2820

LA350,360

 1
86332 - ROD, ANTENNA
86332-B1080

LA350,360

 1
86397 - PLATE, ANTENNA EARTH
86397-B2010

LA350,360

 1
Common parts
82711-B2420
90119-06A06
Linked diagrams
8601
