LA360A-GBRF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )LA360

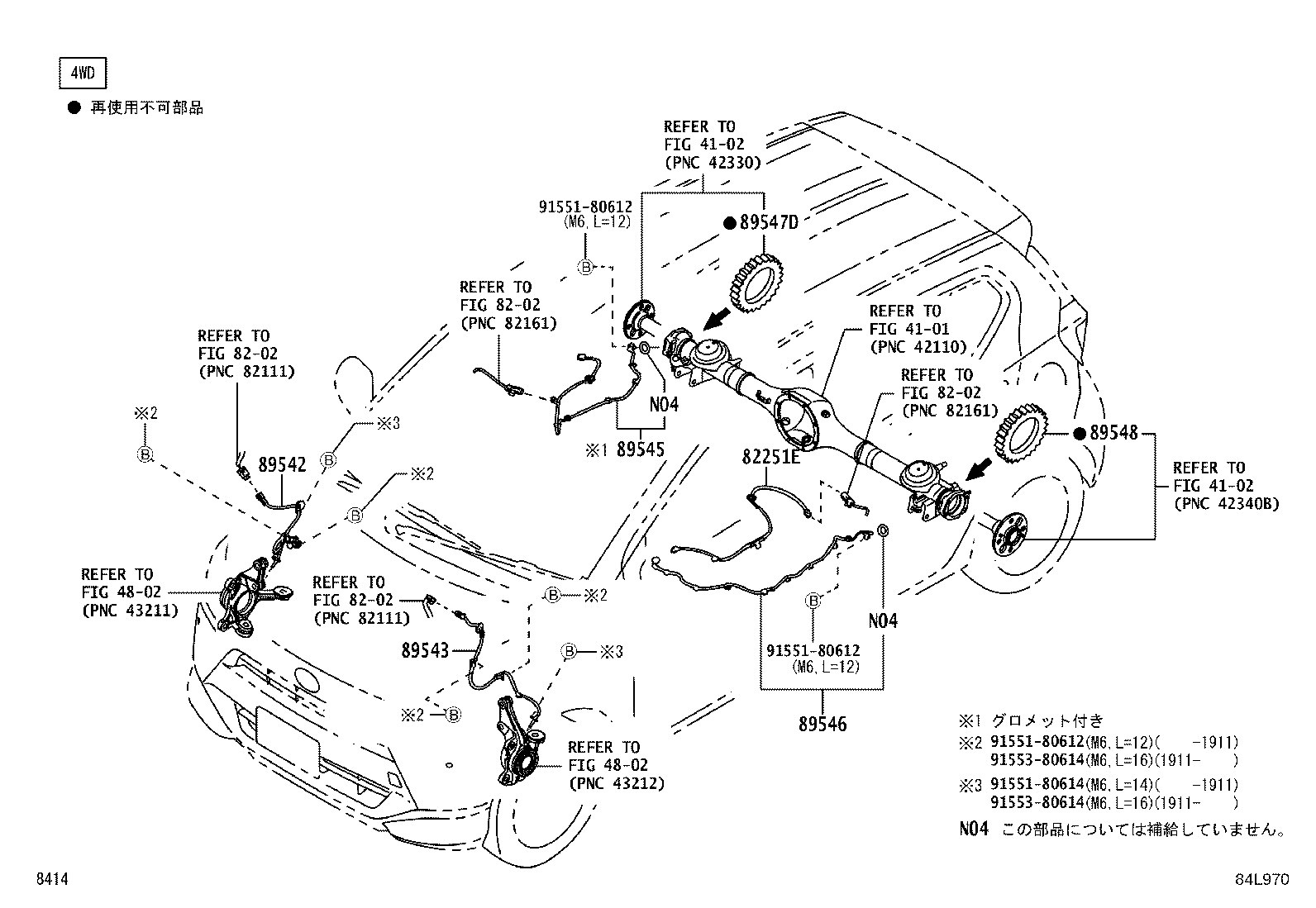

Click highlighted areas on diagram

4WD

diagram 4101 4102 4102 4802 4802 8202 8202 8202 8202 82251E 89542 89543 89545 89546 89547D 89548 9155180612 9155180612 9155180612 9155180614 9155380614 9155380614
Part # Description Qty Price
82251E - WIRE, SPEED SENSOR, LH
82251-B2160

LA360..B,G,L,X

 1
89542 - SENSOR, SPEED, FRONT RH
89542-B2130

LA350,360

 1
89543 - SENSOR, SPEED, FRONT LH
89543-B2130

LA350,360

 1
89545 - SENSOR, SPEED, REAR RH
89545-B2070

LA360

O−ﾘﾝｸﾞ､ｸﾞﾛﾒｯﾄ付き

 1
89546 - SENSOR, SPEED, REAR LH
89546-B2060

LA360

O−ﾘﾝｸﾞ付き

 1
89547D - ROTOR, SKID CONTROL SENSOR
89547-97506

LA360..B,G,L,X

右側

 1
89548 - ROTOR, SKID CONTROL SENSOR
89547-97506

LA360..B,G,L,X

左側

 1
Common parts
91551-80612
91551-80614
91553-80614
Linked diagrams
4101
4102
4802
8202
