LA360A-GBRF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

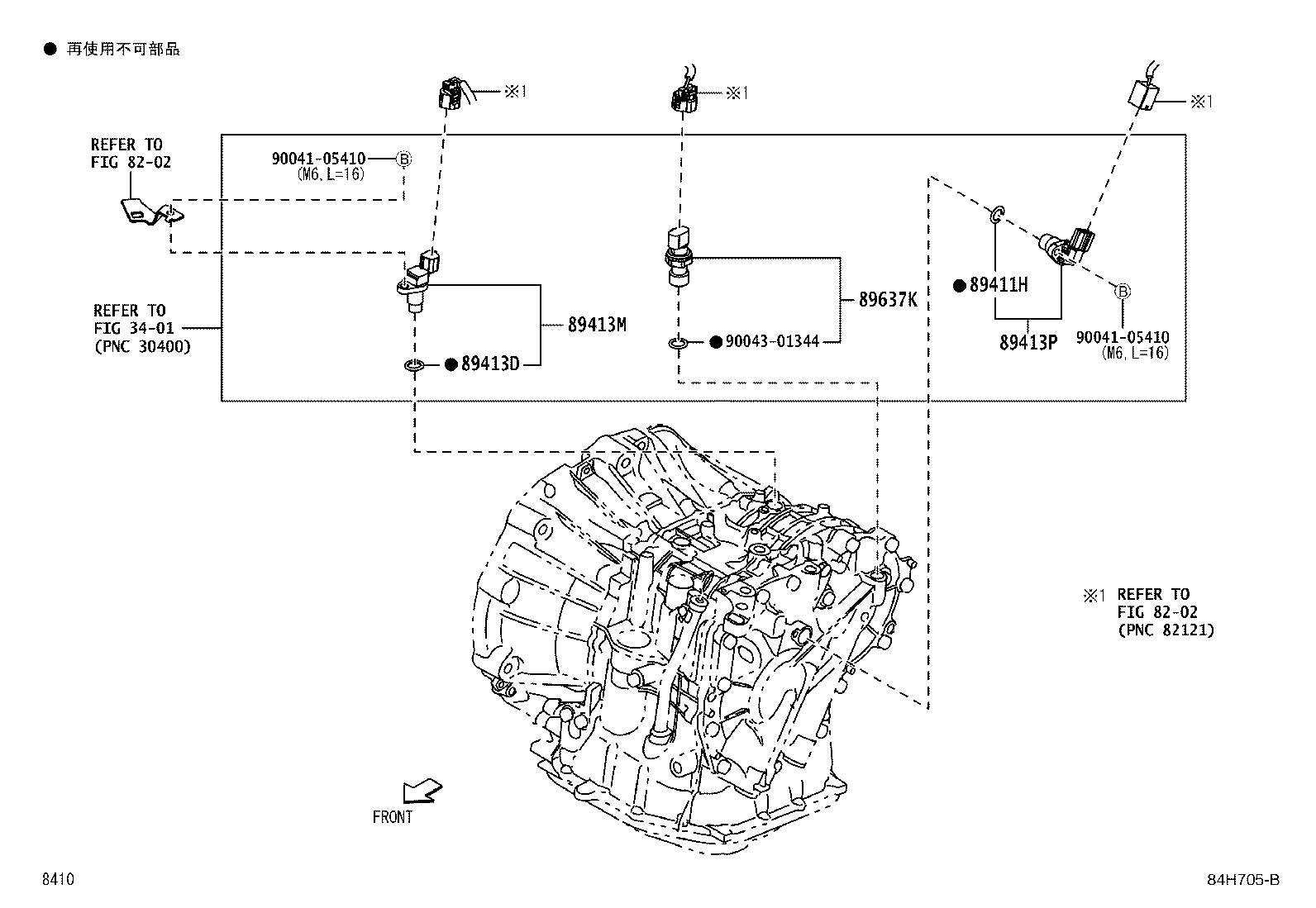

Click highlighted areas on diagram

diagram 3401 8202 8202 89411H 89413D 89413M 89413P 89637K 9004105410 9004105410 9004301344
Part # Description Qty Price
89411H - RING, O
90043-01278

LA350,360

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90043-01278

LA350,360

 1
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-97202

LA350,360

ｾｶﾝﾀﾞﾘ ﾌﾟｰﾘ回転ｾﾝｻ

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-B2010

LA350,360

ﾌﾟﾗｲﾏﾘ ﾌﾟｰﾘ回転ｾﾝｻ

 1
89637K - SENSOR, OIL PRESSURE
89637-B2010

LA350,360

 1
Common parts
90041-05410
90043-01344
Linked diagrams
3401
8202
