LA360A-GBRF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

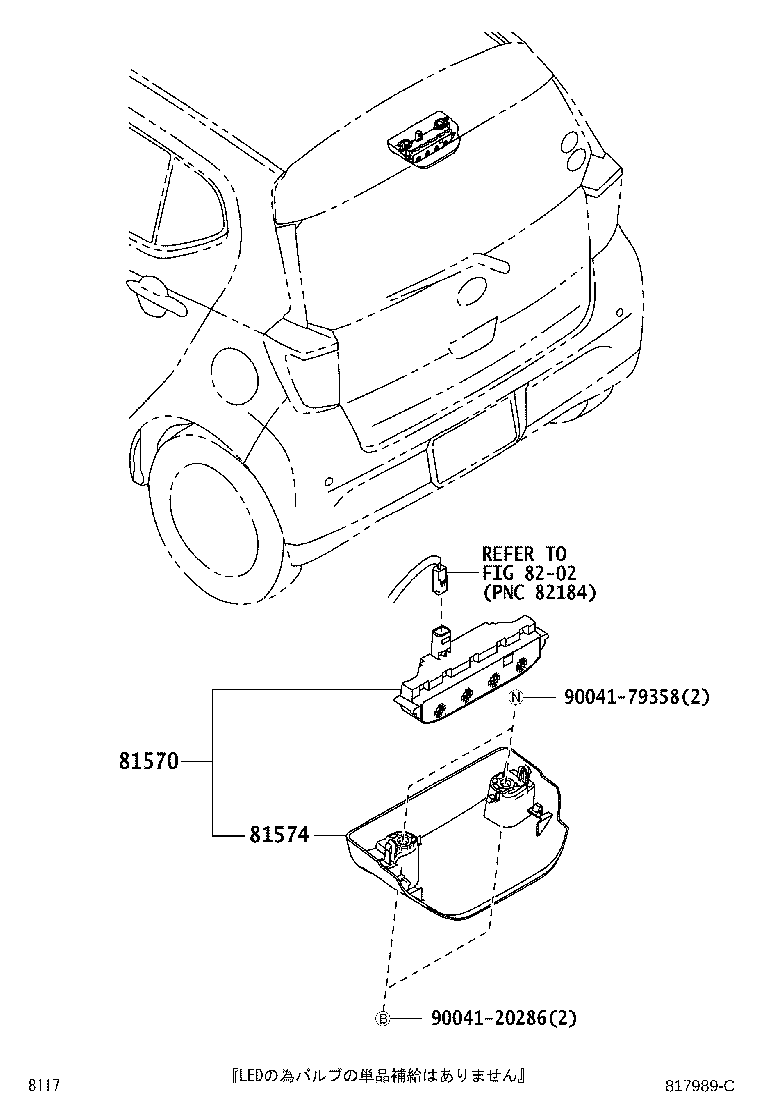

Click highlighted areas on diagram

diagram 81570 81574 8202 9004120286 9004179358
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-B2480

LA350,360..G,X

ｸﾞﾚｰ ｶﾊﾞｰ

 1
81570-B2480

LA350,360..B

ﾋﾞｼﾞﾈｽﾕｰｽﾌﾙSAVﾊﾟｯｸ,ｸﾞﾚｰ ｶﾊﾞｰ

 1
81570-B2470

LA350,360..B,L

ﾌﾞﾗｯｸ ｶﾊﾞｰ

 1
81570-B2480

LA350,360..B

ﾋﾞｼﾞﾈｽHI,ｸﾞﾚｰ ｶﾊﾞｰ

 1
81574 - COVER, CENTER STOP LAMP
81574-B2030

LA350,360..G,X

ｸﾞﾚｰ ｶﾊﾞｰ

 1
81574-B2030

LA350,360..B

ﾋﾞｼﾞﾈｽHI,ｸﾞﾚｰ ｶﾊﾞｰ

 1
81574-B2030

LA350,360..B

ﾋﾞｼﾞﾈｽﾕｰｽﾌﾙSAVﾊﾟｯｸ,ｸﾞﾚｰ ｶﾊﾞｰ

 1
81574-B2020

LA350,360..B,L

ﾌﾞﾗｯｸ ｶﾊﾞｰ

 1
Common parts
90041-20286
90041-79358
Linked diagrams
8202
