LA360A-GBRF (2017)
Toyota Pixis Epoch
(1705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58411-B2040 |
LA350,360 |
1 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-B2380B1 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ,GRAY |
1 | ||
| 58410-B2380B1 |
LA350,360..B GRAY |
1 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-B2080 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ |
1 | ||
| 58411-B2080 |
LA350,360..B |
1 | ||
| 58412A - BOARD, DECK, NO.2 | ||||
| 58412-B2020B0 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ,GRAY |
1 | ||
| 58412-B2020B0 |
LA350,360..B GRAY |
1 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 71334-B2030C0 |
LA350,360 BLACK,TRIM2# |
4 | ||
| 64726-B2020C1 |
LA350,360 BLACK,TRIM2# |
4 | ||
| 71334-B2080C0 |
LA350,360 BLACK,TRIM2# |
4 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 71334-B2030C0 |
LA350,360 BLACK,TRIM2# |
4 | ||
| 64726-B2020C1 |
LA350,360 BLACK,TRIM2# |
4 | ||
| 71334-B2080C0 |
LA350,360 BLACK,TRIM2# |
4 | ||
| 62630U - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62631-B2030B0 |
LA350,360 DK GRAY,TRIM2# |
1 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 90044-67609C0 |
LA350,360 BLACK,TRIM2# |
16 | ||
| 62630V - CLIP (FOR QUARTER REAR TRIM) | ||||
| 90044-67609C0 |
LA350,360 BLACK,TRIM2# |
16 | ||
| 62638F - GARNISH, REAR QUARTER TRIM, FRONT RH | ||||
| 62638-B2010C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 62639B - GARNISH, REAR QUARTER TRIM, FRONT LH | ||||
| 62639-B2010C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 62640S - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62632-B2030B0 |
LA350,360 DK GRAY,TRIM2# |
1 | ||
| 64421A - TRAY, LUGGAGE COMPARTMENT | ||||
| 64421-B2190 |
LA360 |
1 | ||
| 64421A - TRAY, LUGGAGE COMPARTMENT | ||||
| 64421-B2190 |
LA360 |
1 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 64726-B2020C1 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ,BLACK,TRIM2# |
5 | ||
| 71334-B2080C0 |
LA350,360..B BLACK |
5 | ||
| 64726-B2020C1 |
LA350,360..B BLACK,TRIM2# |
5 | ||
| 71334-B2080C0 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ,BLACK |
5 | ||
| 71334-B2030C0 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ,BLACK |
5 | ||
| 71334-B2030C0 |
LA350,360..B BLACK |
5 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 64726-B2020C1 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ,BLACK,TRIM2# |
5 | ||
| 71334-B2080C0 |
LA350,360..B BLACK |
5 | ||
| 64726-B2020C1 |
LA350,360..B BLACK,TRIM2# |
5 | ||
| 71334-B2080C0 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ,BLACK |
5 | ||
| 71334-B2030C0 |
LA350,360..G,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾋﾞｼﾞﾈｽ,BLACK |
5 | ||
| 71334-B2030C0 |
LA350,360..B BLACK |
5 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-B2010 |
LA350,360 |
2 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90044-68046C2 |
LA350,360 BLACK,TRIM2# |
4 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90044-68046C2 |
LA350,360 BLACK,TRIM2# |
4 | ||

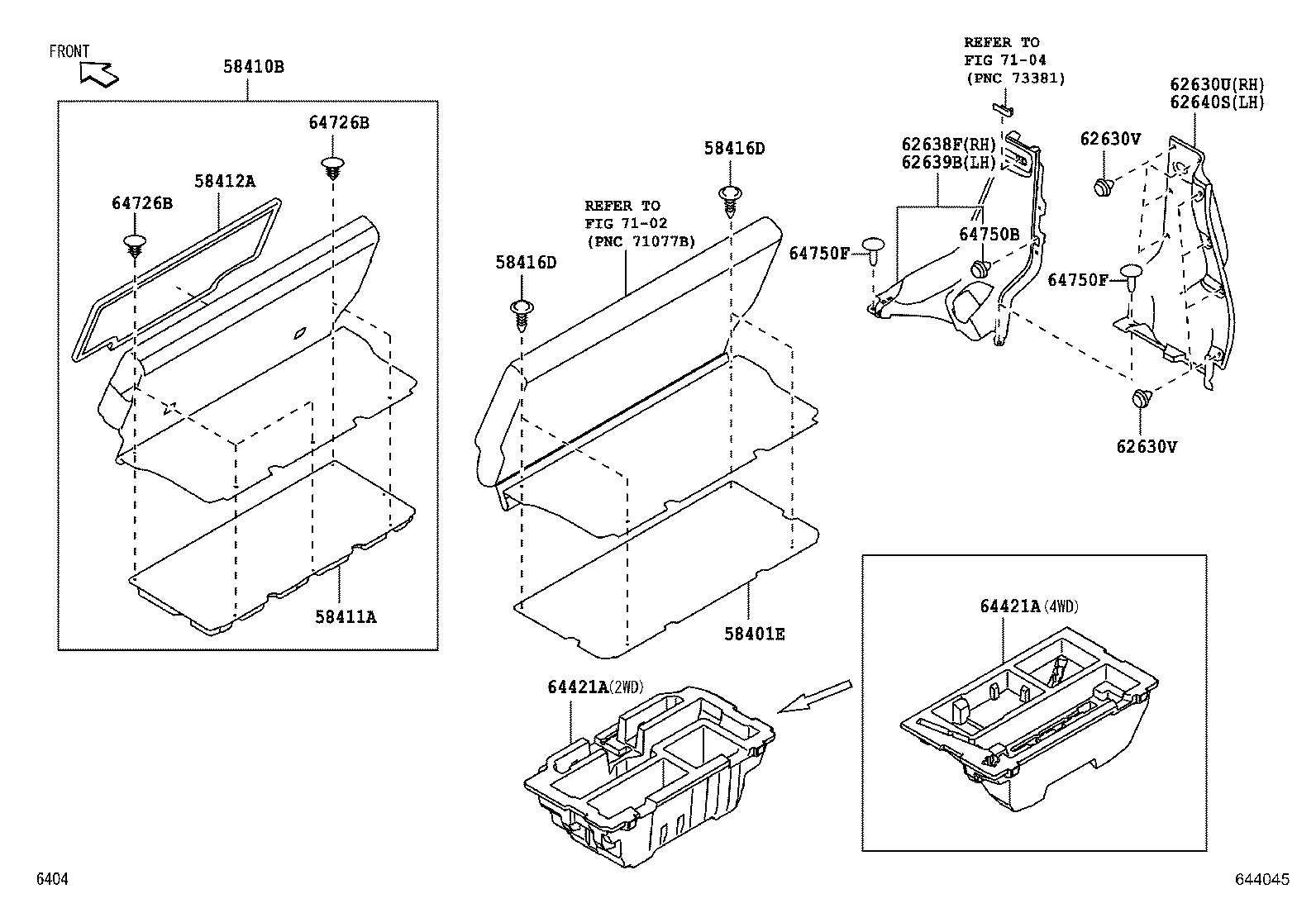

| Linked diagrams | ||||
| 7102 | ||||
| 7104 | ||||
