LA360A-GBPF (2017)
Toyota Pixis Epoch
(1705- )

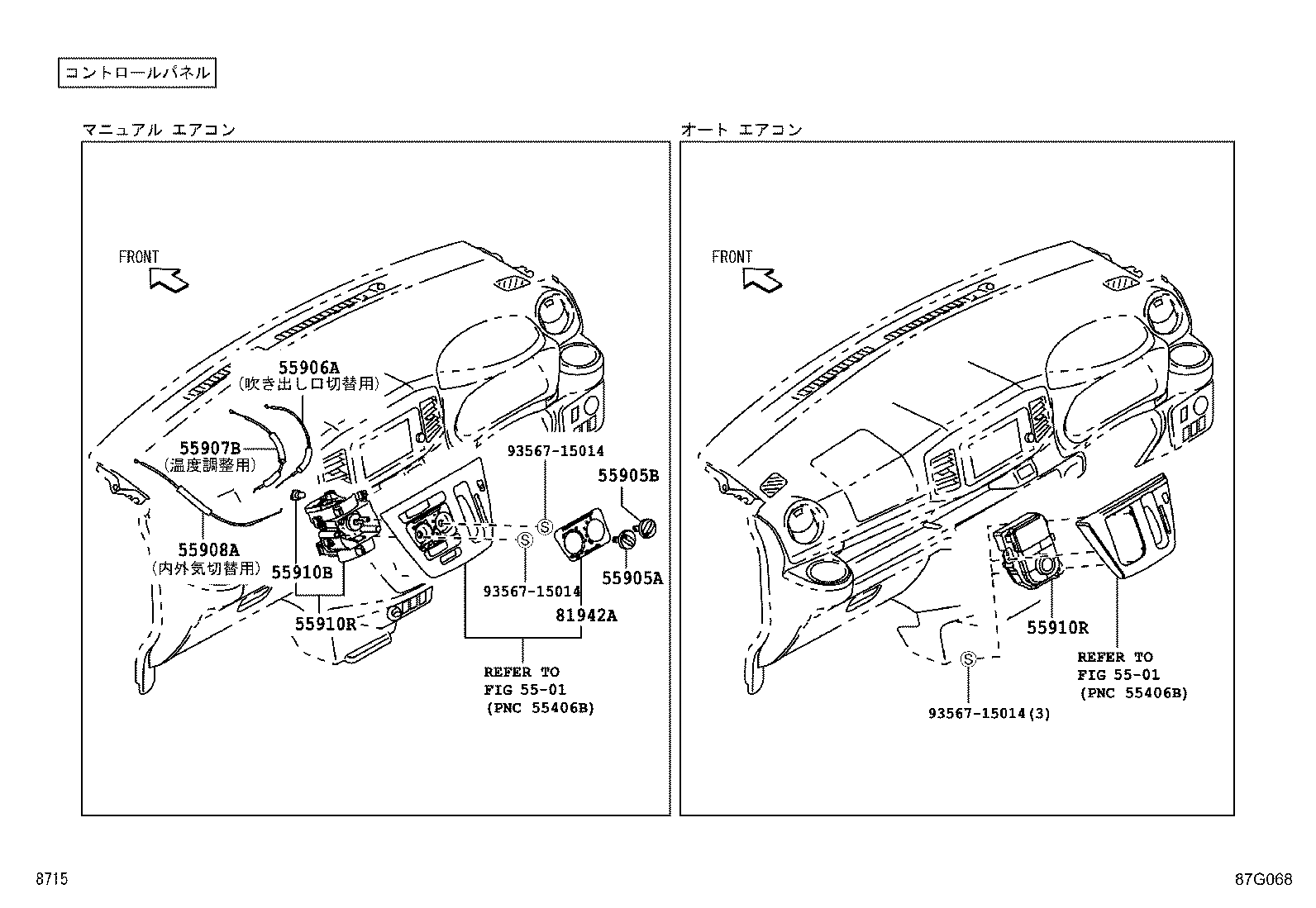

ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-B2240 |
LA350,360..B,L,X |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-B2240 |
LA350,360..B,L,X |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-B2290 |
LA350,360..B,L,X 吹き出し口切替用 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-B2280 |
LA350,360..B,L,X 温度調整用 |
1 | ||
| 55907-B2281 |
LA350,360..B,L,X 温度調整用 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-B2301 |
LA350,360..B,L,X 内外気切替用 |
1 | ||
| 55908-B2300 |
LA350,360..B,L,X 内外気切替用 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 81936-B2040 |
LA350,360..B,L,X |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-B2652 |
LA350,360..G ｼﾙﾊﾞｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B2650 |
LA350,360..G ｼﾙﾊﾞｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B2651 |
LA350,360..G ｼﾙﾊﾞｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B1160 |
LA350,360..B,L,X |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-B2652 |
LA350,360..G ｼﾙﾊﾞｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B2650 |
LA350,360..G ｼﾙﾊﾞｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B2651 |
LA350,360..G ｼﾙﾊﾞｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B1160 |
LA350,360..B,L,X |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-B1380 |
LA350,360..B,L |
1 | ||
| Common parts | ||||
| 93567-15014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
(1705- )

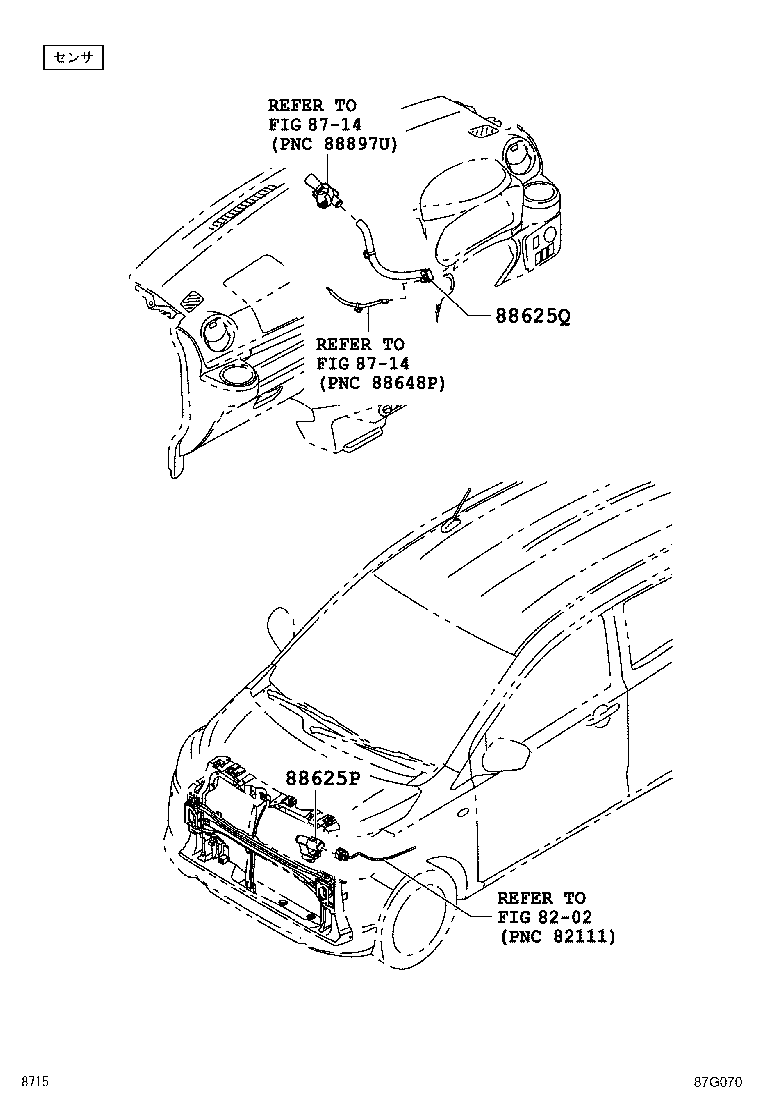

ﾅｲｶﾞｲｷ ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-B2160 |
LA350,360 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88790-B2220 |
LA350,360..G |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8714 | ||||
(1705- )

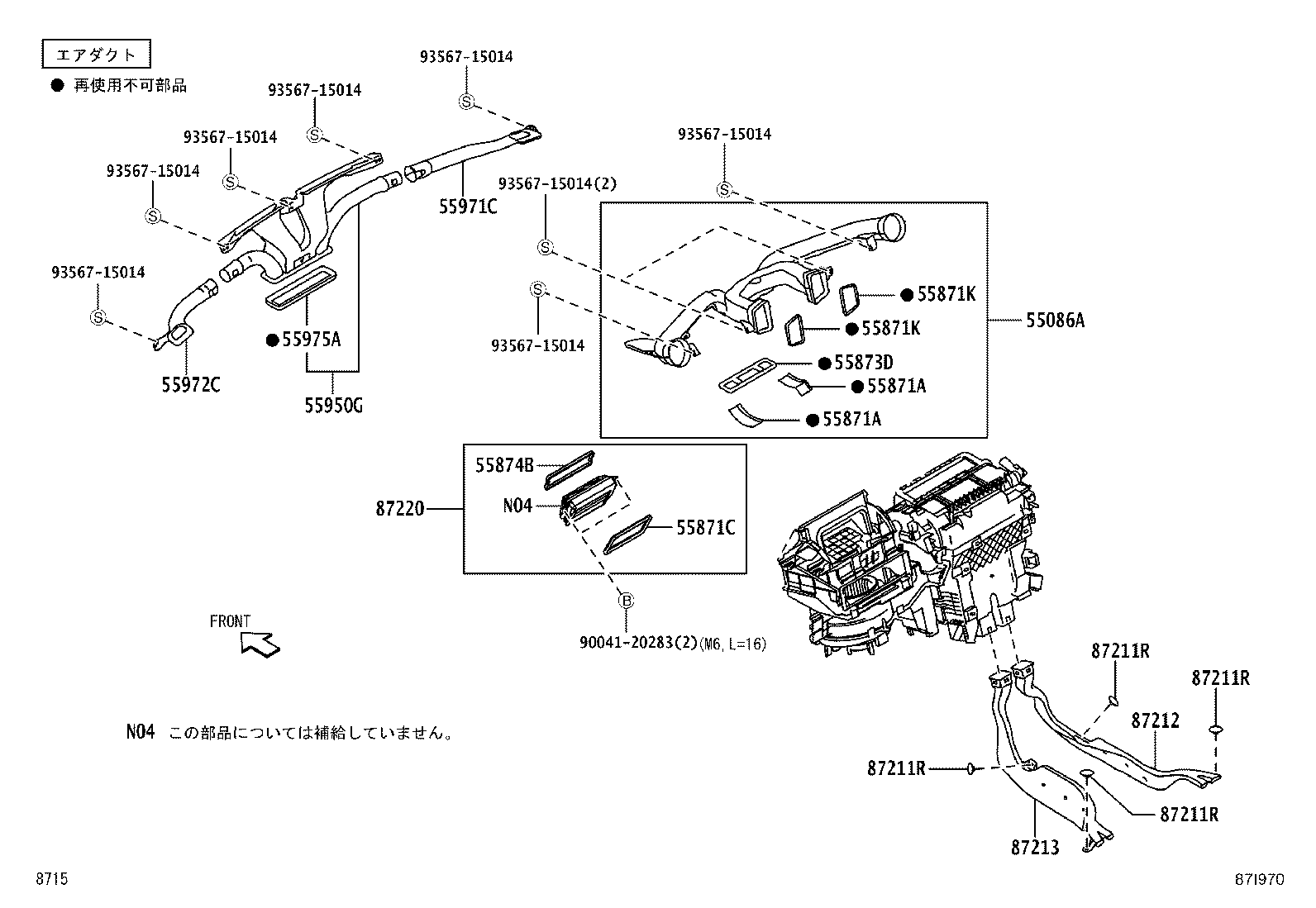

ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-B2460 |
LA350,360 |
1 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55874-B2170 |
LA350,360 |
2 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55874-B2170 |
LA350,360 |
2 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55875-B2050 |
LA350,360 |
1 | ||
| 55871K - SEAL, AIR DUCT | ||||
| 55877-B2130 |
LA350,360 |
2 | ||
| 55871K - SEAL, AIR DUCT | ||||
| 55877-B2130 |
LA350,360 |
2 | ||
| 55873D - SEAL, AIR DUCT, CENTER | ||||
| 55873-B2210 |
LA350,360 |
1 | ||
| 55874B - SEAL, AIR DUCT, NO.4 | ||||
| 55876-B2020 |
LA350,360 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-B2330 |
LA350,360 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55961-B2210 |
LA350,360 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55962-B2180 |
LA350,360 |
1 | ||
| 55975A - SEAL, DEFROSTER NOZZLE, NO.1 | ||||
| 55975-B2160 |
LA350,360 |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-67492 |
LA360..B,G,L,X |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-67492 |
LA360..B,G,L,X |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-67492 |
LA360..B,G,L,X |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-67492 |
LA360..B,G,L,X |
4 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87220-B2290 |
LA360..B,G,L,X 右側 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87230-B2170 |
LA360..B,G,L,X 左側 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-B2300 |
LA350,360 |
1 | ||
| Common parts | ||||
| 90041-20283 | ||||
| 93567-15014 | ||||
