Toyota Pixis epoch LA360A ARMREST & VISOR

LA360A-GBPF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

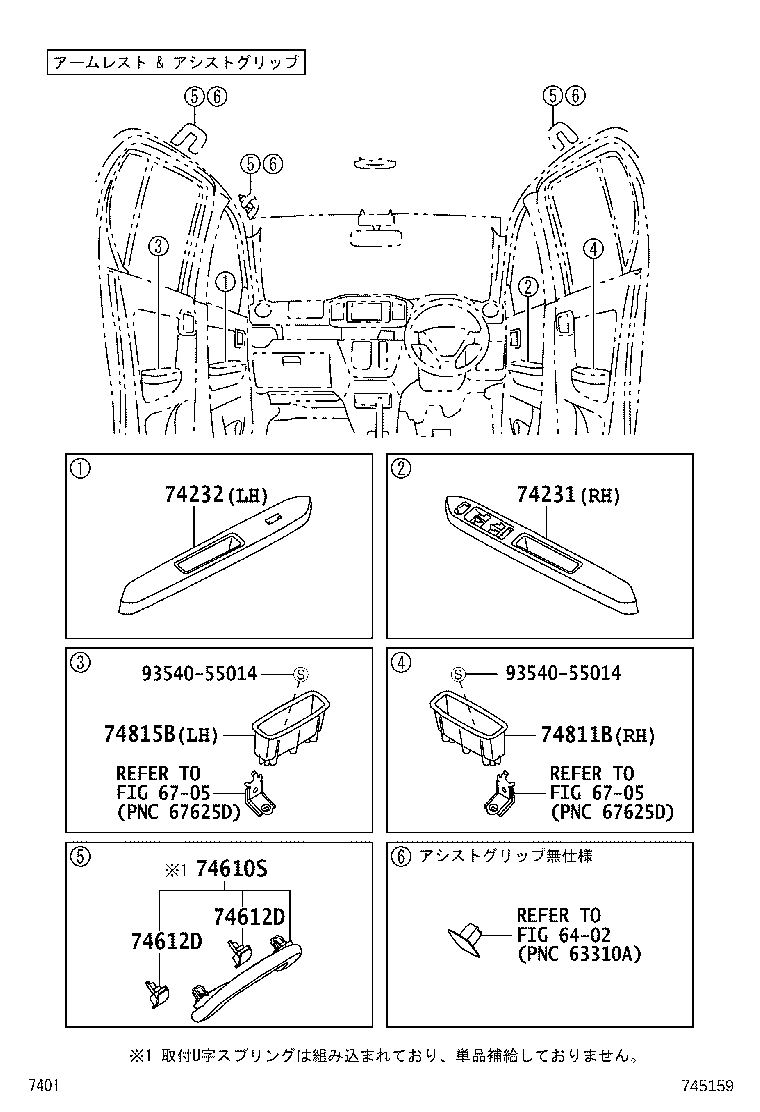

ARMREST & ASSIST GRIP

Part #	Description	Period	Qty
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B2280C0	LA350,360..L BLACK,TRIM2#	05/2017 - 12/2999	1
74231-B2300C0	LA350,360..B ﾋﾞｼﾞﾈｽHI,BLACK,TRIM2#	05/2017 - 12/2999	1
74231-B2290C0	LA350,360..G,X BLACK,TRIM2#	05/2017 - 12/2999	1
74231-B2310C0	LA350,360..B BLACK,TRIM2#	05/2017 - 12/2999	1
74231-B2300C0	LA350,360..B ﾋﾞｼﾞﾈｽﾕｰｽﾌﾙSAVﾊﾟｯｸ,BLACK,TRIM2#	05/2017 - 12/2999	1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B2220C0	LA350,360 BLACK,TRIM2#	05/2017 - 12/2999	1
74610S - GRIP ASSY, ASSIST
74610-B2030B0	LA350,360 ｱｼｽﾄｸﾞﾘｯﾌﾟ−RR*2,LT.GRAY,TRIM2#	05/2017 - 12/2999	3
74610-B2030B0	LA350,360 LT.GRAY,TRIM2#	05/2017 - 12/2999	1
74612D - COVER, ASSIST GRIP
74612-B2070B0	LA350,360 ｱｼｽﾄｸﾞﾘｯﾌﾟ−RR*2,LT.GRAY,TRIM2#	05/2017 - 12/2999	6
74612-B2070B0	LA350,360 LT.GRAY,TRIM2#	05/2017 - 12/2999	2
74612D - COVER, ASSIST GRIP
74612-B2070B0	LA350,360 ｱｼｽﾄｸﾞﾘｯﾌﾟ−RR*2,LT.GRAY,TRIM2#	05/2017 - 12/2999	6
74612-B2070B0	LA350,360 LT.GRAY,TRIM2#	05/2017 - 12/2999	2
74811B - HANDLE, DOOR PULL
74811-97201C0	LA350,360 BLACK,TRIM2#,右側	05/2017 - 12/2999	1
74815B - HANDLE, REAR DOOR PULL
74811-97201C0	LA350,360 BLACK,TRIM2#,左側	05/2017 - 12/2999	1
Common parts
93540-55014
Linked diagrams
6402
6705

Click highlighted areas on diagram

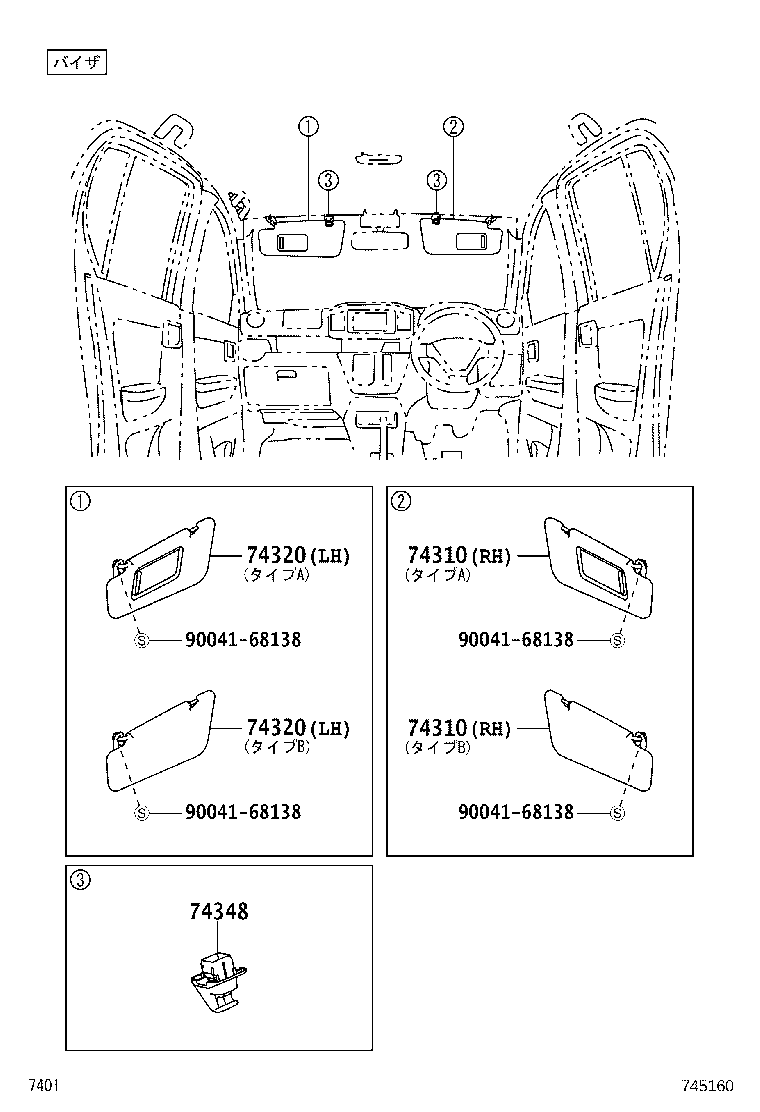

VISOR

Part #	Description	Period	Qty
74310 - VISOR ASSY, RH
74310-B2800B0	LA350,360..B,L LT.GRAY,TRIM2#,ﾀｲﾌﾟ B	07/2018 - 12/2999	1
74310-B2720B0	LA350,360..B,L LT.GRAY,TRIM2#,ﾀｲﾌﾟ B	05/2017 - 06/2018	1
74310-B2670B0	LA350,360..G,X LT.GRAY,TRIM2#,ﾀｲﾌﾟ A	05/2017 - 06/2018	1
74310-B2780B0	LA350,360..G,X LT.GRAY,TRIM2#,ﾀｲﾌﾟ A	07/2018 - 12/2999	1
74310 - VISOR ASSY, RH
74310-B2800B0	LA350,360..B,L LT.GRAY,TRIM2#,ﾀｲﾌﾟ B	07/2018 - 12/2999	1
74310-B2720B0	LA350,360..B,L LT.GRAY,TRIM2#,ﾀｲﾌﾟ B	05/2017 - 06/2018	1
74310-B2670B0	LA350,360..G,X LT.GRAY,TRIM2#,ﾀｲﾌﾟ A	05/2017 - 06/2018	1
74310-B2780B0	LA350,360..G,X LT.GRAY,TRIM2#,ﾀｲﾌﾟ A	07/2018 - 12/2999	1
74320 - VISOR ASSY, LH
74320-B2730B0	LA350,360..G,X LT.GRAY,TRIM2#,ﾀｲﾌﾟ A	05/2017 - 08/2021	1
74320-B2780B0	LA350,360..B,L LT.GRAY,TRIM2#,ﾀｲﾌﾟ B	05/2017 - 08/2021	1
74320 - VISOR ASSY, LH
74320-B2730B0	LA350,360..G,X LT.GRAY,TRIM2#,ﾀｲﾌﾟ A	05/2017 - 08/2021	1
74320-B2780B0	LA350,360..B,L LT.GRAY,TRIM2#,ﾀｲﾌﾟ B	05/2017 - 08/2021	1
74348 - HOLDER, VISOR
74348-B2040B0	LA350,360 LT.GRAY,TRIM2#	05/2017 - 12/2999	2
Common parts
90041-68138
