Toyota Pixis epoch LA360A STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
JP
PIXIS EPOCH
LA360A-GBPF (2017)
4501 - STEERING COLUMN & SHAFT

LA360A-GBPF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

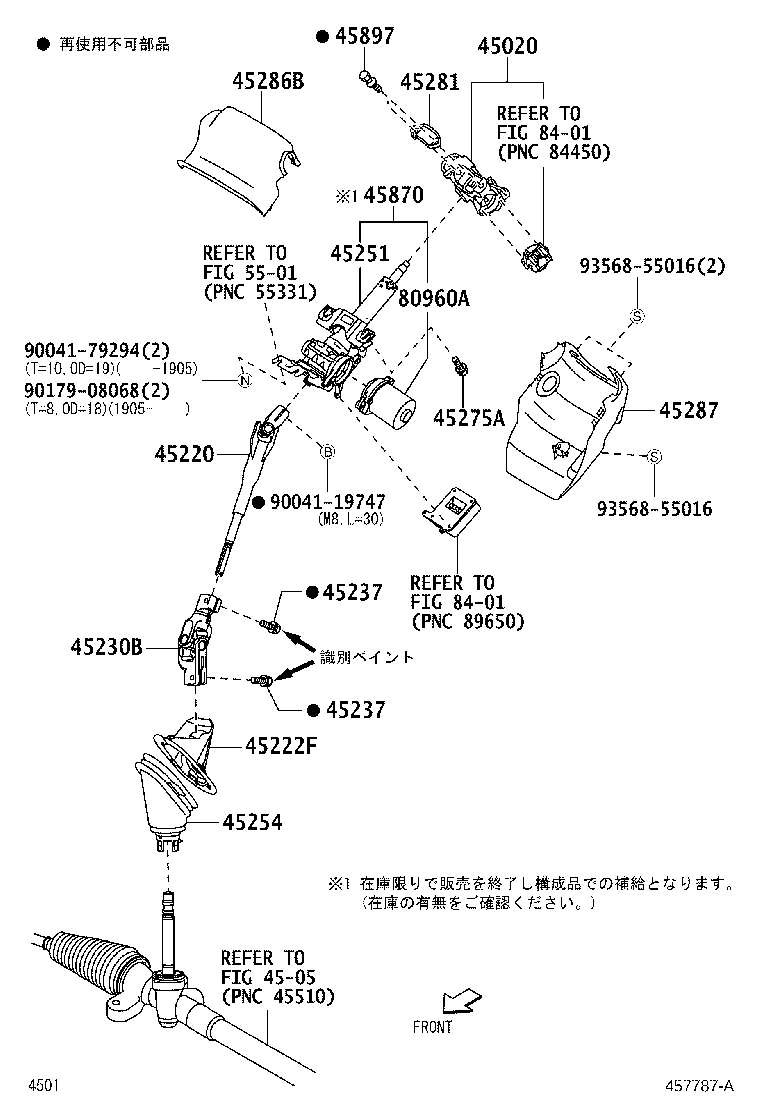

(1705- )B,L,X

Click highlighted areas on diagram

ﾁﾙﾄﾚﾊﾞｰ,ﾌﾟｯｼｭﾎﾞﾀﾝﾅｼ

Part #	Description	Period	Qty
45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45020-B2381	LA350,360..B,L,X	03/2018 - 12/2999	1
45020-B2380	LA350,360..B,L,X	05/2017 - 02/2018	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-B2180	LA350,360	05/2017 - 12/2999	1
45222F - COVER, DUST
45222-B2121	LA350,360	05/2017 - 09/2018	1
45222-B2122	LA350,360	10/2018 - 12/2999	1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45290-B1053	LA350,360	05/2017 - 12/2999	1
45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)
90041-20257	LA350,360 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ	05/2017 - 03/2018	2
90041-19747	LA350,360 ﾍﾟｲﾝﾄﾅｼ	03/2018 - 12/2999	2
45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)
90041-20257	LA350,360 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ	05/2017 - 03/2018	2
90041-19747	LA350,360 ﾍﾟｲﾝﾄﾅｼ	03/2018 - 12/2999	2
45251 - TUBE SET, STEERING COLUMN
45251-B9080	LA350,360..B,L,X	05/2017 - 12/2999	1
45251-B9090	LA350,360..G	05/2017 - 12/2999	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B2170	LA350,360	05/2017 - 12/2999	1
45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
91551-80822	LA350,360	05/2017 - 12/2999	2
45281 - HOUSING, STEERING COLUMN
45281-B2040	LA350,360..B,L,X	05/2017 - 12/2999	1
45281-B2050	LA350,360..G	05/2017 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-B2150C0	LA350,360..G BLACK,TRIM2#,ﾁﾙﾄﾚﾊﾞｰ有り	05/2017 - 12/2999	1
45286-B2150C0	LA350,360..B,L,X BLACK,TRIM2#,ﾁﾙﾄﾚﾊﾞｰ無し	05/2017 - 12/2999	1
45287 - COVER, STEERING COLUMN, LWR
45287-B2340C0	LA350,360..G BLACK,TRIM2#,ﾁﾙﾄﾚﾊﾞｰ有り	05/2017 - 12/2999	1
45287-B2290C0	LA350,360..B,L,X BLACK,TRIM2#,ﾁﾙﾄﾚﾊﾞｰ無し	05/2017 - 12/2999	1
45870 - TUBE ASSY, STEERING COLUMN
45870-B2A50	LA350,360..B,L,X	05/2017 - 12/2999	1
45870-B2A60	LA350,360..G	05/2017 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-B1020	LA350,360..G ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁｱﾘ	03/2020 - 12/2999	2
45897-B2010	LA350,360..B,L,X ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁﾅｼ	05/2017 - 12/2999	2
45897-B1020	LA350,360..G ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁｱﾘ	05/2017 - 03/2020	2
80960A - MOTOR SET, POWER STEERING
80960-B9020	LA350,360	05/2017 - 12/2999	1
Common parts
90041-19747
90041-79294
90179-08068
93568-55016
Linked diagrams
4505
5501
8401

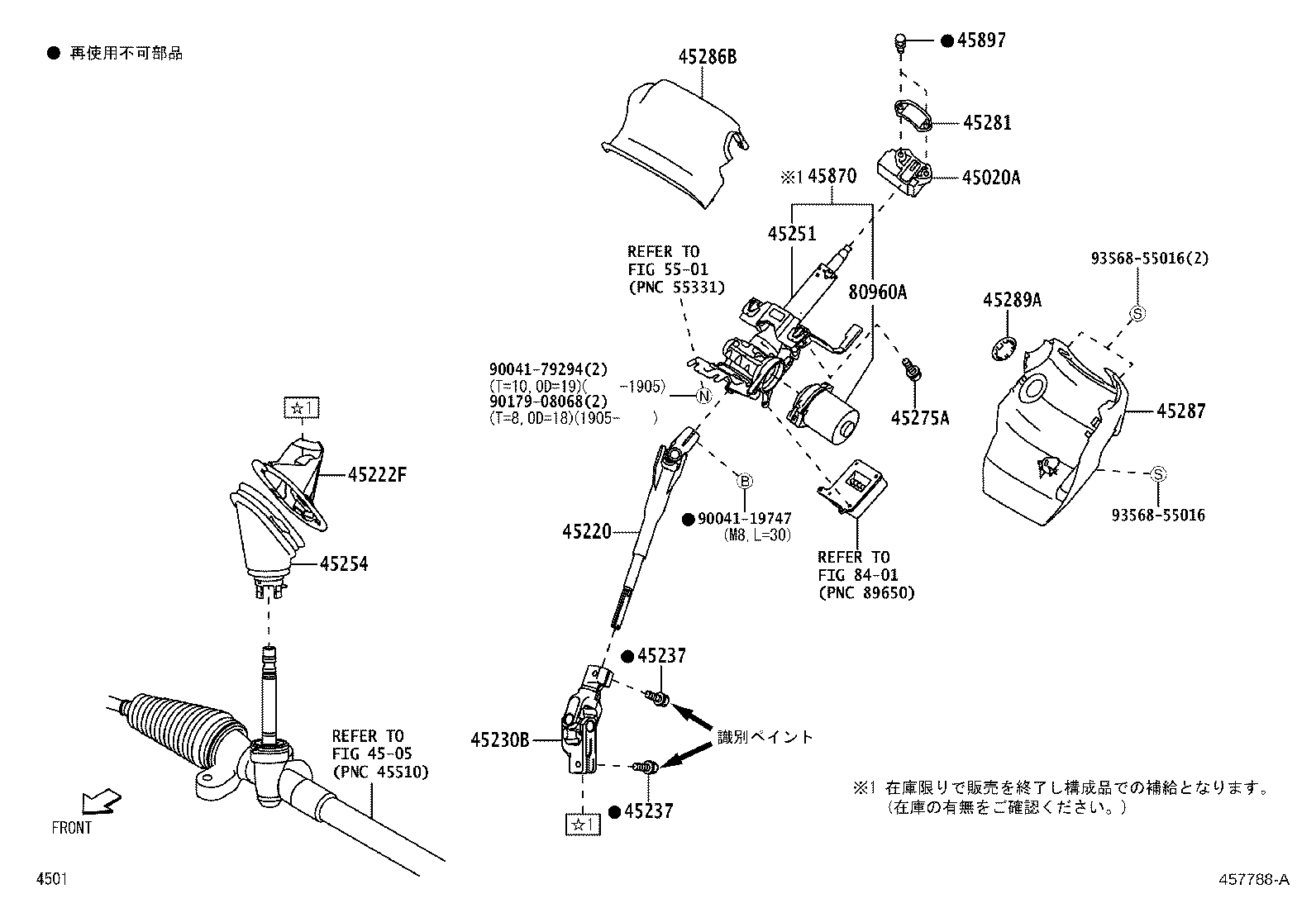

(1705- )G

Click highlighted areas on diagram

ﾁﾙﾄﾚﾊﾞｰ,ﾌﾟｯｼｭﾎﾞﾀﾝｱﾘ

Part #	Description	Period	Qty
45020A - ACTUATOR ASSY, STEERING LOCK
45020-B2340	LA350,360..G	05/2017 - 12/2999	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-B2180	LA350,360	05/2017 - 12/2999	1
45222F - COVER, DUST
45222-B2121	LA350,360	05/2017 - 09/2018	1
45222-B2122	LA350,360	10/2018 - 12/2999	1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45290-B1053	LA350,360	05/2017 - 12/2999	1
45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)
90041-20257	LA350,360 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ	05/2017 - 03/2018	2
90041-19747	LA350,360 ﾍﾟｲﾝﾄﾅｼ	03/2018 - 12/2999	2
45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)
90041-20257	LA350,360 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ	05/2017 - 03/2018	2
90041-19747	LA350,360 ﾍﾟｲﾝﾄﾅｼ	03/2018 - 12/2999	2
45251 - TUBE SET, STEERING COLUMN
45251-B9080	LA350,360..B,L,X	05/2017 - 12/2999	1
45251-B9090	LA350,360..G	05/2017 - 12/2999	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B2170	LA350,360	05/2017 - 12/2999	1
45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
91551-80822	LA350,360	05/2017 - 12/2999	2
45281 - HOUSING, STEERING COLUMN
45281-B2040	LA350,360..B,L,X	05/2017 - 12/2999	1
45281-B2050	LA350,360..G	05/2017 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-B2150C0	LA350,360..G BLACK,TRIM2#,ﾁﾙﾄﾚﾊﾞｰ有り	05/2017 - 12/2999	1
45286-B2150C0	LA350,360..B,L,X BLACK,TRIM2#,ﾁﾙﾄﾚﾊﾞｰ無し	05/2017 - 12/2999	1
45287 - COVER, STEERING COLUMN, LWR
45287-B2340C0	LA350,360..G BLACK,TRIM2#,ﾁﾙﾄﾚﾊﾞｰ有り	05/2017 - 12/2999	1
45287-B2290C0	LA350,360..B,L,X BLACK,TRIM2#,ﾁﾙﾄﾚﾊﾞｰ無し	05/2017 - 12/2999	1
45289A - SUPPORT, STEERING COLUMN COVER
45289-B2030C0	LA350,360..G BLACK,TRIM2#	08/2018 - 12/2999	1
45289-B2030C0	LA350,360..G BLACK,TRIM2#	05/2017 - 07/2018	1
45870 - TUBE ASSY, STEERING COLUMN
45870-B2A50	LA350,360..B,L,X	05/2017 - 12/2999	1
45870-B2A60	LA350,360..G	05/2017 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-B1020	LA350,360..G ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁｱﾘ	03/2020 - 12/2999	2
45897-B2010	LA350,360..B,L,X ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁﾅｼ	05/2017 - 12/2999	2
45897-B1020	LA350,360..G ﾌﾟｯｼｭｽﾀｰﾄｽｲｯﾁｱﾘ	05/2017 - 03/2020	2
80960A - MOTOR SET, POWER STEERING
80960-B9020	LA350,360	05/2017 - 12/2999	1
Common parts
90041-19747
90041-79294
90179-08068
93568-55016
Linked diagrams
4505
5501
8401
