LA360A-GBPF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

Click highlighted areas on diagram

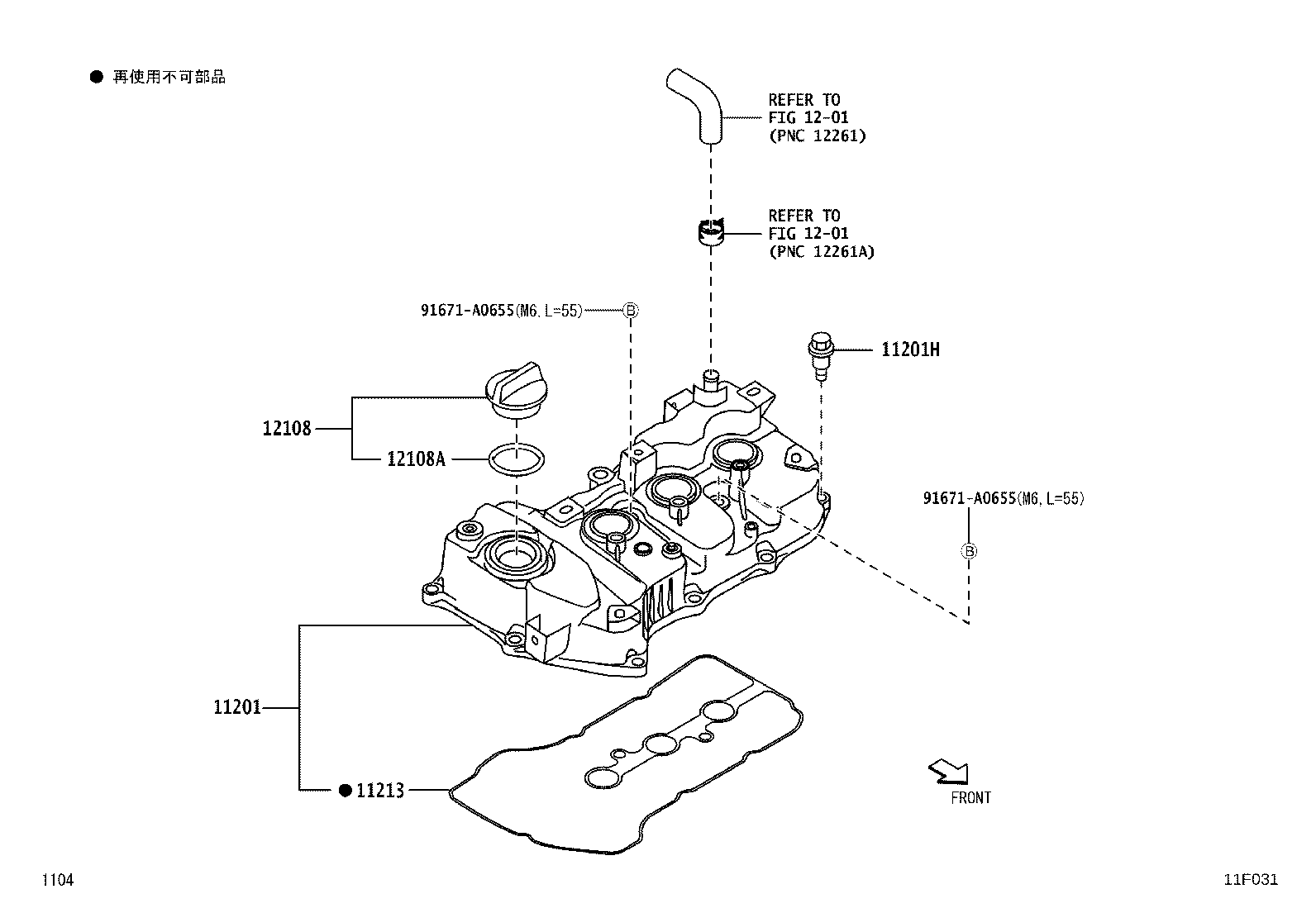

ｼﾘﾝﾀﾞﾍｯﾄﾞｶﾊﾞｰ

diagram 11201 11201H 11213 1201 1201 1201 1201 12108 12108A 91671A0655 91671A0655
Part # Description Qty Price
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-B2014

KFVE..LA350,360..B,G,L,X

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90041-09271

KFVE..LA350,360

 10
11213 - GASKET, CYLINDER HEAD COVER
11213-B2011

KFVE..LA350,360..B,G,L,X

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-97201

KFVE..LA350,360..B,G,L,X

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-87206

KFVE..LA350,360..B,G,L,X

 1
Common parts
91671-A0655
Linked diagrams
1201

(1705- )

Click highlighted areas on diagram

ｼﾘﾝﾀﾞﾍｯﾄﾞ

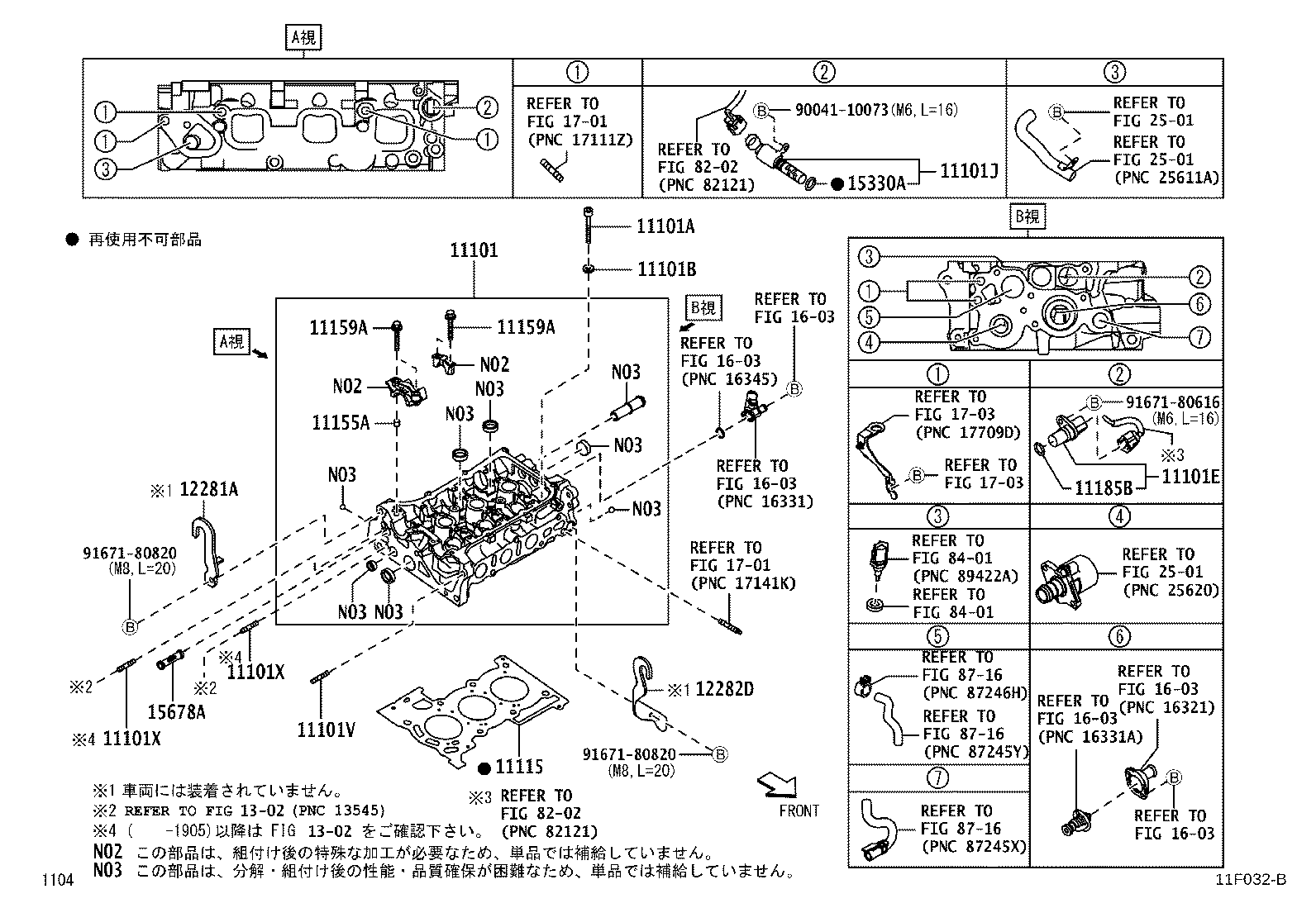

diagram 11101 11101A 11101B 11101E 11101J 11101V 11101X 11101X 11115 11155A 11159A 11159A 11185B 12281A 12282D 1302 1302 15330A 15678A 1603 1603 1603 1603 1603 1603 1701 1701 1703 1703 2501 2501 2501 8202 8202 8401 8401 8716 8716 8716 9004110073 9167180616 9167180820 9167180820
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-B2250

KFVE..LA350,360

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90041-09258

KFVE..LA350,360..B,G,L,X

 8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90042-01637

KFVE..LA350,360..B,G,L,X

 8
11101E - SENSOR, CAM POSITION
19311-B2011

KFVE..LA350,360..B,G,L,X

 1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-B2040

KFVE..LA350,360..B,G,L,X

 1
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
92132-81040

KFVE..LA350,360..B,G,L,X

 1
11101X - BOLT(FOR CYLINDER HEAD SET SUB)
92122-80630

KFVE..LA350,360

 2
11101X - BOLT(FOR CYLINDER HEAD SET SUB)
92122-80630

KFVE..LA350,360

 2
11115 - GASKET, CYLINDER HEAD
11115-B2042

KFVE..LA350,360..B,G,L,X

 1
11155A - PIN, RING W/HEAD
90042-53010

KFVE..LA350,360..B,G,L,X

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911

KFVE..LA350,360..B,G,L,X

 16
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90041-19911

KFVE..LA350,360..B,G,L,X

 16
11185B - RING, O
9004C-30008

KFVE..LA350,360

 1
12281A - HANGER, ENGINE, NO.1
12281-B2010

KFVE..LA350,360..B,G,L,X

 1
12282D - HANGER, ENGINE, NO.2
12282-B2060

KFVE..LA350,360..B,G,L,X

 1
15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE)
90043-01262

KFVE..LA350,360..B,G,L,X

 1
15678A - FILTER, OIL CONTROL VALVE
15678-B2020

KFVE..LA350,360..B,G,L,X

 1
Common parts
90041-10073
91671-80616
91671-80820
Linked diagrams
1302
1603
1701
1703
2501
8202
8401
8716
