LA360A-GBMF (2017)
Toyota Pixis Epoch
Production
May 2017
-
Sep 9999
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )

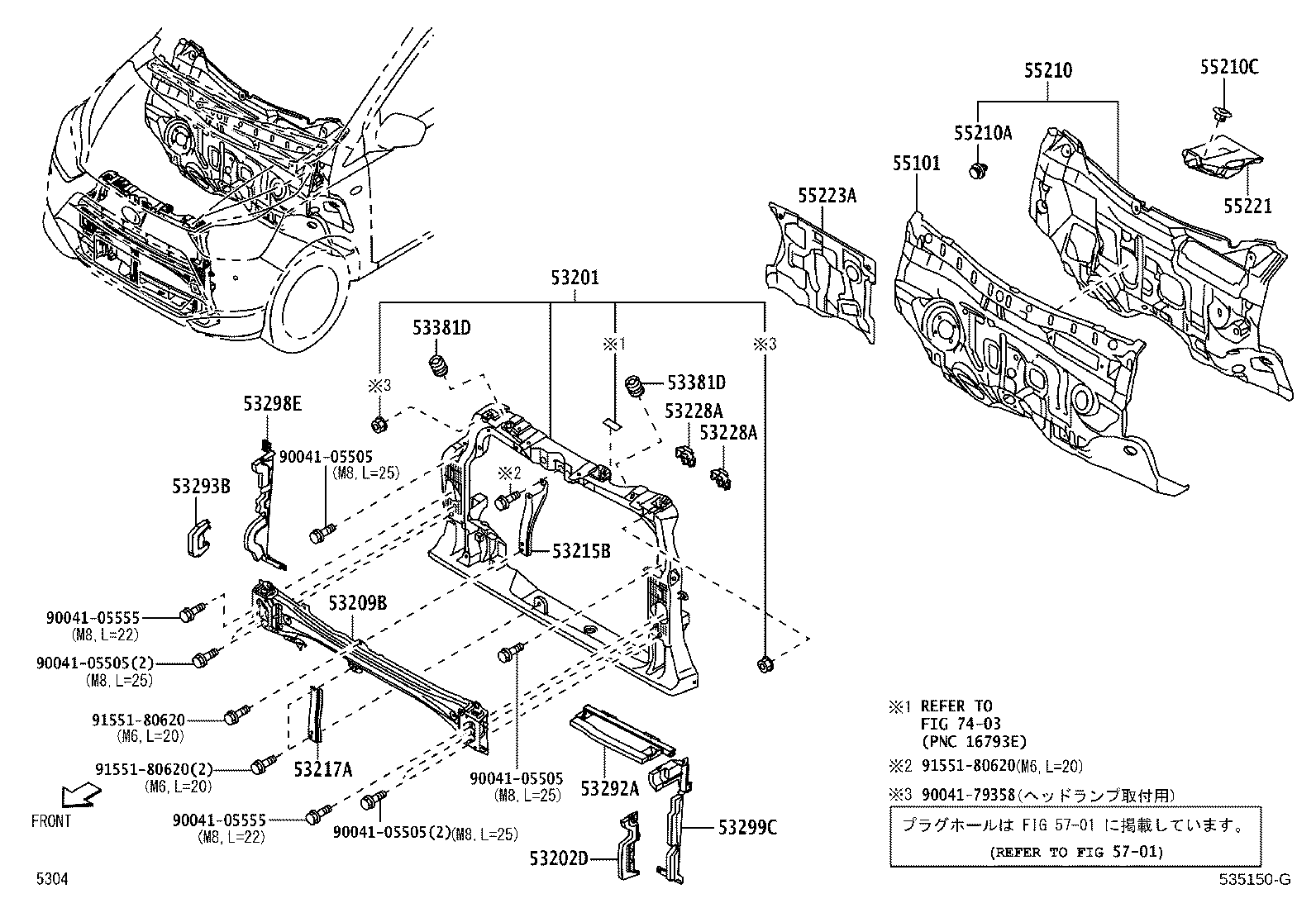

Click highlighted areas on diagram
ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-B2390 |
LA350,360 |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 88893-B2050 |
LA350,360 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53210-B2010 |
LA350,360 |
1 | ||
| 53215B - SUPPORT, HOOD LOCK | ||||
| 53215-B2210 |
LA350,360 |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-B2070 |
LA350,360 |
1 | ||
| 53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1 | ||||
| 53228-B2060 |
LA350,360 |
2 | ||
| 53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1 | ||||
| 53228-B2060 |
LA350,360 |
2 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53039-B2010 |
LA350,360 |
1 | ||
| 53293B - SEAL, RADIATOR SUPPORT SERVICE HOLE | ||||
| 88629-B2040 |
LA350,360 |
1 | ||
| 53298E - SEAL, RADIATOR SIDE, RH | ||||
| 53037-B2030 |
LA350,360 |
1 | ||
| 53299C - SEAL, RADIATOR SIDE, LH | ||||
| 53038-B2030 |
LA350,360 |
1 | ||
| 53381D - BUMPER, HOOD TO FRONT SHROUD | ||||
| 53381-B2210 |
LA350,360 |
2 | ||
| 53381D - BUMPER, HOOD TO FRONT SHROUD | ||||
| 53381-B2210 |
LA350,360 |
2 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-B2580 |
LA350,360 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-B2420 |
LA350,360 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
LA350,360 |
4 | ||
| 55210C - CLIP | ||||
| 58199-B2010C0 |
LA350,360 BLACK |
1 | ||
| 90044-67397 |
LA350,360 |
1 | ||
| 55221 - BOARD, DASH PANEL SILENCER | ||||
| 55221-B2040 |
LA350,360 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-B2120 |
LA350,360 |
1 | ||
| Common parts | ||||
| 90041-05505 | ||||
| 90041-05555 | ||||
| 90041-79358 | ||||
| 91551-80620 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||
(1705- )

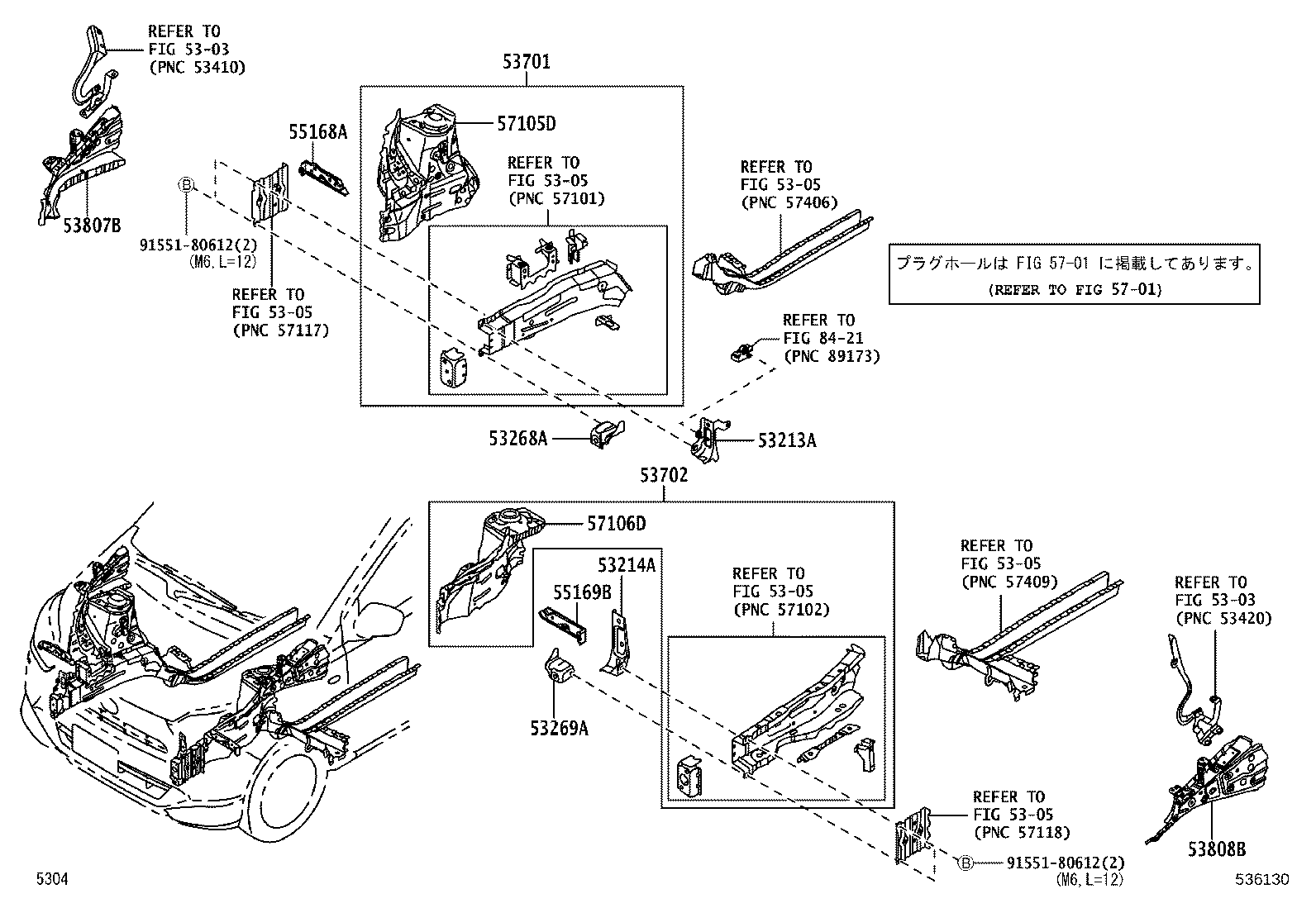

Click highlighted areas on diagram
ﾌｪﾝﾀﾞｴﾌﾟﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-B2130 |
LA350,360 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-B2140 |
LA350,360 |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-B2080 |
LA350,360 |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-B2080 |
LA350,360 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-B2906 |
LA350,360 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-B2907 |
LA350,360 |
1 | ||
| 53807B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH | ||||
| 53803-B2230 |
LA350,360 |
1 | ||
| 53808B - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53804-B2180 |
LA350,360 |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55168-B2280 |
LA350,360 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55169-B2210 |
LA350,360 |
1 | ||
| 57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-B2210 |
LA350,360 |
1 | ||
| 57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-B2210 |
LA350,360 |
1 | ||
| Common parts | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 5303 | ||||
| 5305 | ||||
| 5701 | ||||
| 8421 | ||||
