LA360A-GBMF (2017)
Toyota Pixis Epoch
(1705- )

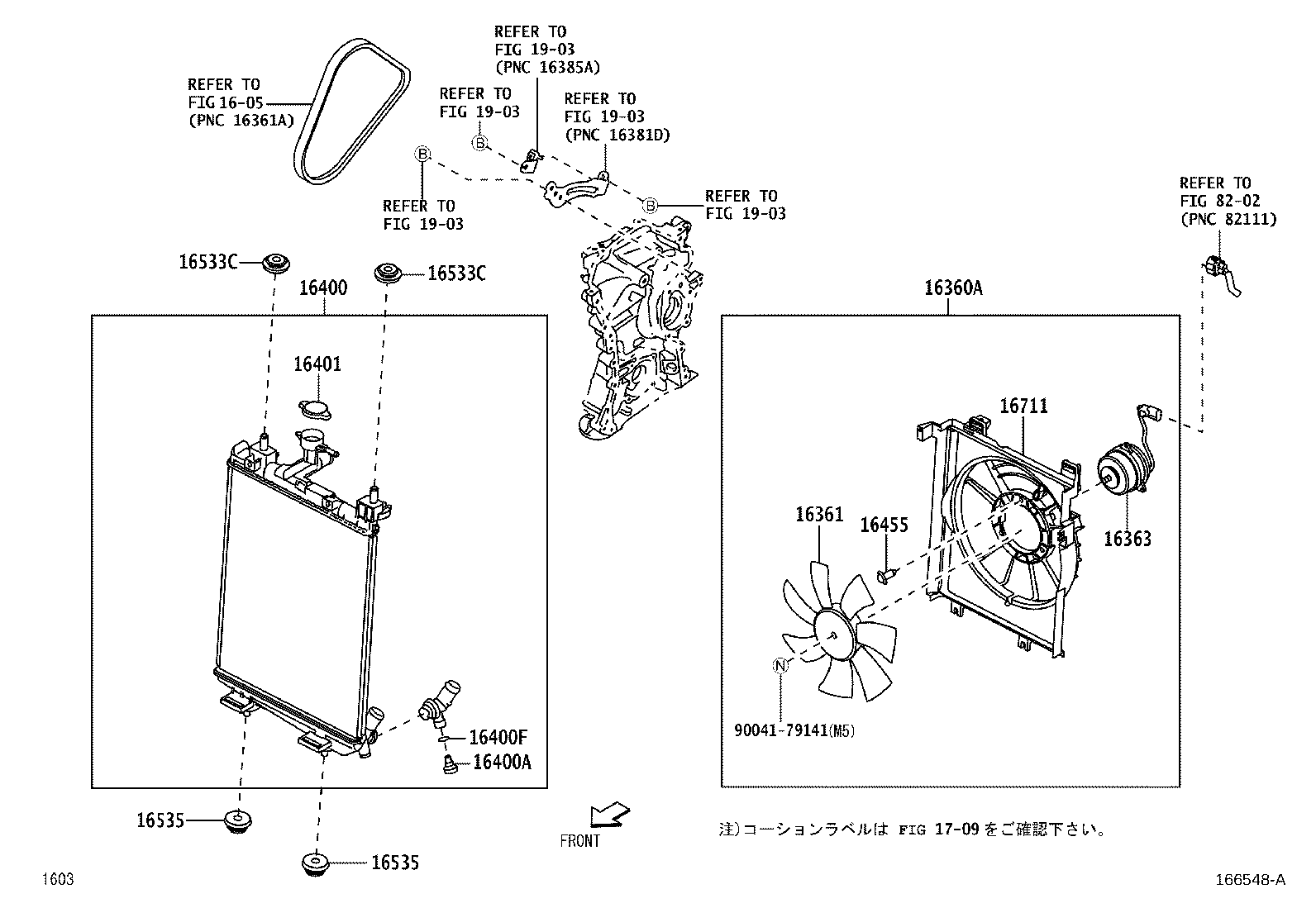

ﾗｼﾞｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-B2220 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16361 - FAN | ||||
| 16361-B2070 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-B2040 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-B2350 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-B2010 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-87211 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16672-87201 |
KFVE..LA350,360..B,G,L,X |
3 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
KFVE..LA350,360..B,G,L,X |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
KFVE..LA350,360..B,G,L,X |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
KFVE..LA350,360..B,G,L,X |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
KFVE..LA350,360..B,G,L,X |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-B2120 |
KFVE..LA350,360 |
1 | ||
| Common parts | ||||
| 90041-79141 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1709 | ||||
| 1903 | ||||
| 8202 | ||||
(1705- )

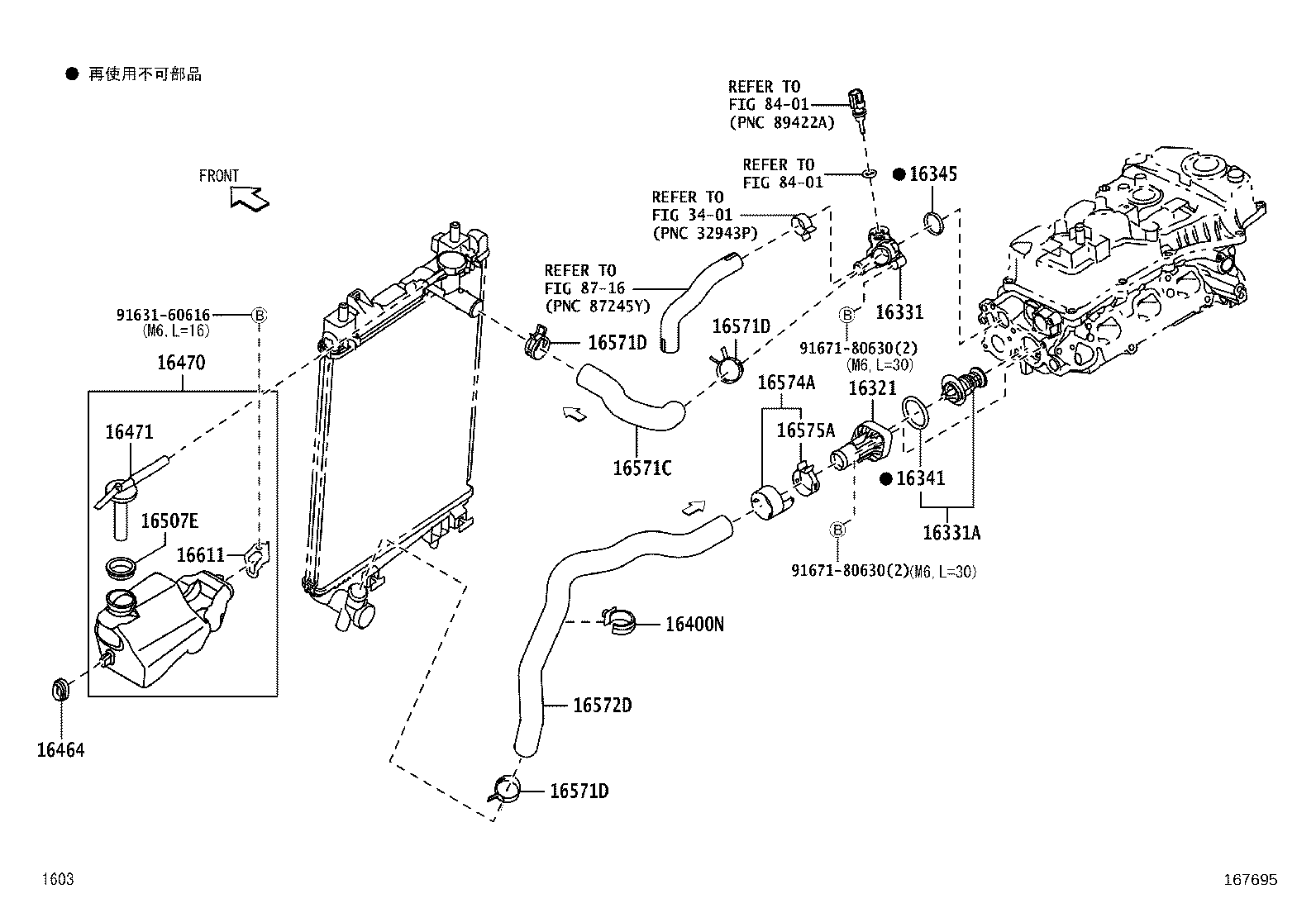

ﾎｰｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-B2010 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-B2020 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2010 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2010 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16341-B2040 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16400N - CLAMP, NO.2 | ||||
| 90044-64884 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
KFVE..LA350,360..B,G,L,X |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-B2042 |
KFVE..LA350,360 |
1 | ||
| 16470-B2041 |
KFVE..LA350,360 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-B2041 |
KFVE..LA350,360 |
1 | ||
| 16507E - GASKET | ||||
| 90044-30318 |
KFVE..LA350,360 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B2120 |
KFVE..LA350,360..B,G,L,X 長さ=215 外径=31 内径=24 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67626 |
KFVE..LA350,360..B,G,L,X |
3 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67626 |
KFVE..LA350,360..B,G,L,X |
3 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67626 |
KFVE..LA350,360..B,G,L,X |
3 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B2100 |
KFVE..LA350,360..B,G,L,X 長さ=604 外径=31 内径=24 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-66040 |
KFVE..LA350,360 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90044-66030 |
KFVE..LA350,360 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-B2050 |
KFVE..LA350,360 |
1 | ||
| Common parts | ||||
| 91631-60616 | ||||
| 91671-80630 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 8401 | ||||
| 8716 | ||||
