LA360A-GBGF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

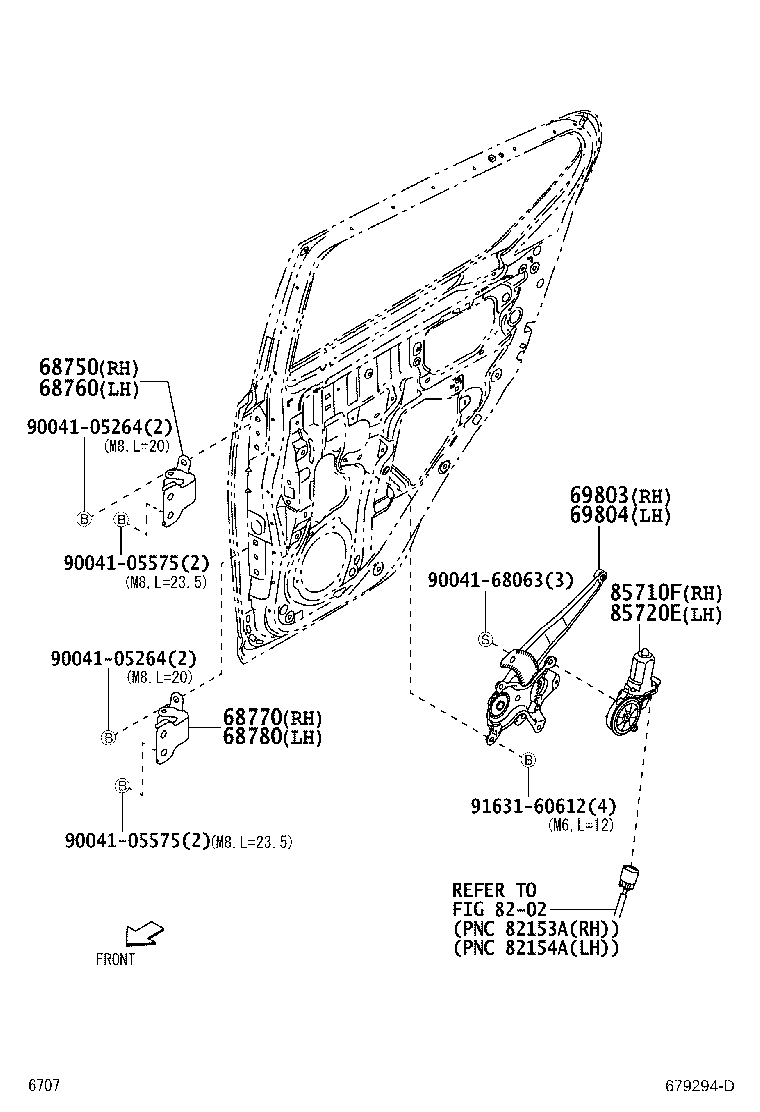

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 8202 85710F 85720E 9004105264 9004105264 9004105575 9004105575 9004168063 9163160612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68710-B2040

LA350,360

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68720-B2040

LA350,360

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68720-B2040

LA350,360

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68710-B2040

LA350,360

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-B2120

LA350,360..G,L,X

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-B2130

LA350,360..G,L,X

 1
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-B2110

LA350,360..G,L,X

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-B2160

LA350,360..G,L,X

 1
Common parts
90041-05264
90041-05575
90041-68063
91631-60612
Linked diagrams
8202
