LA360A-GBGF (2017)
Toyota Pixis Epoch
Production
May 2017
-
Sep 9999
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )

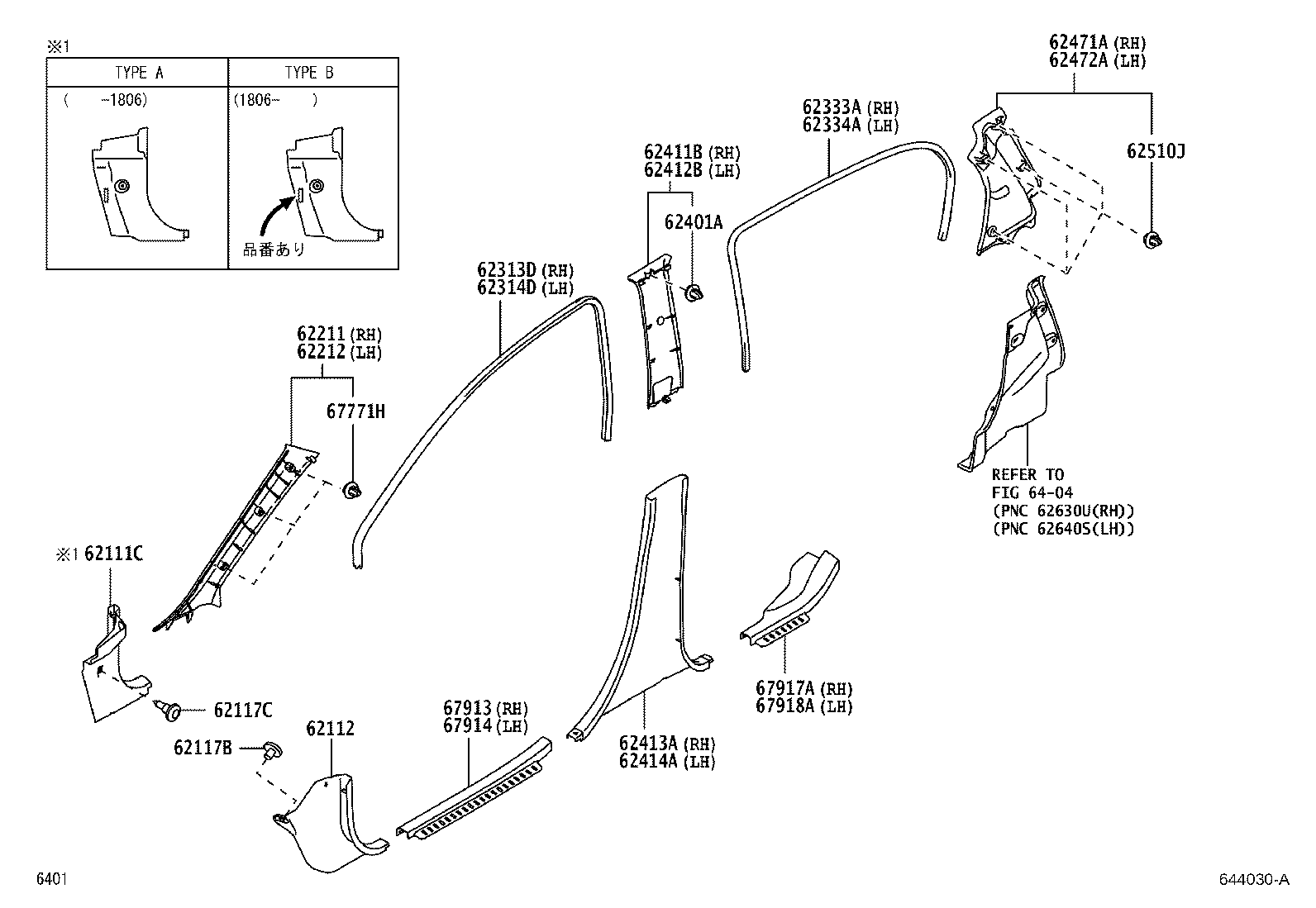

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-B2300C0 |
LA350,360 BLACK,TRIM2#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 62111-B2210C0 |
LA350,360 BLACK,TRIM2#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-B2180C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90044-67397 |
LA350,360 |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90044-67579C2 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-B2610B0 |
LA350,360 LT.GRAY,TRIM2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-B2610B0 |
LA350,360 LT.GRAY,TRIM2# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-B2450C0 |
LA350,360 BLACK |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-B2450C0 |
LA350,360 BLACK |
1 | ||
| 62333A - TRIM, REAR DOOR OPENING, RH | ||||
| 62331-B2082C0 |
LA350,360 BLACK |
1 | ||
| 62331-B2080C0 |
LA350,360 BLACK |
1 | ||
| 62334A - TRIM, REAR DOOR OPENING, LH | ||||
| 62331-B2080C0 |
LA350,360 BLACK |
1 | ||
| 62331-B2082C0 |
LA350,360 BLACK |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 67771-B2010 |
LA350,360 |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-B2520B0 |
LA350,360 LT.GRAY,TRIM2# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-B2480B0 |
LA350,360 LT.GRAY,TRIM2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-B2230C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-B2210C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-B2390B0 |
LA350,360 LT.GRAY,TRIM2# |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-B2390B0 |
LA350,360 LT.GRAY,TRIM2# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-B2010 |
LA350,360 |
8 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA350,360 |
6 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-B2190C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-B2190C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-B2170C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-B2180C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| Linked diagrams | ||||
| 6404 | ||||
