LA360A-GBGF (2017)
Toyota Pixis Epoch
Production
May 2017
-
Sep 9999
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

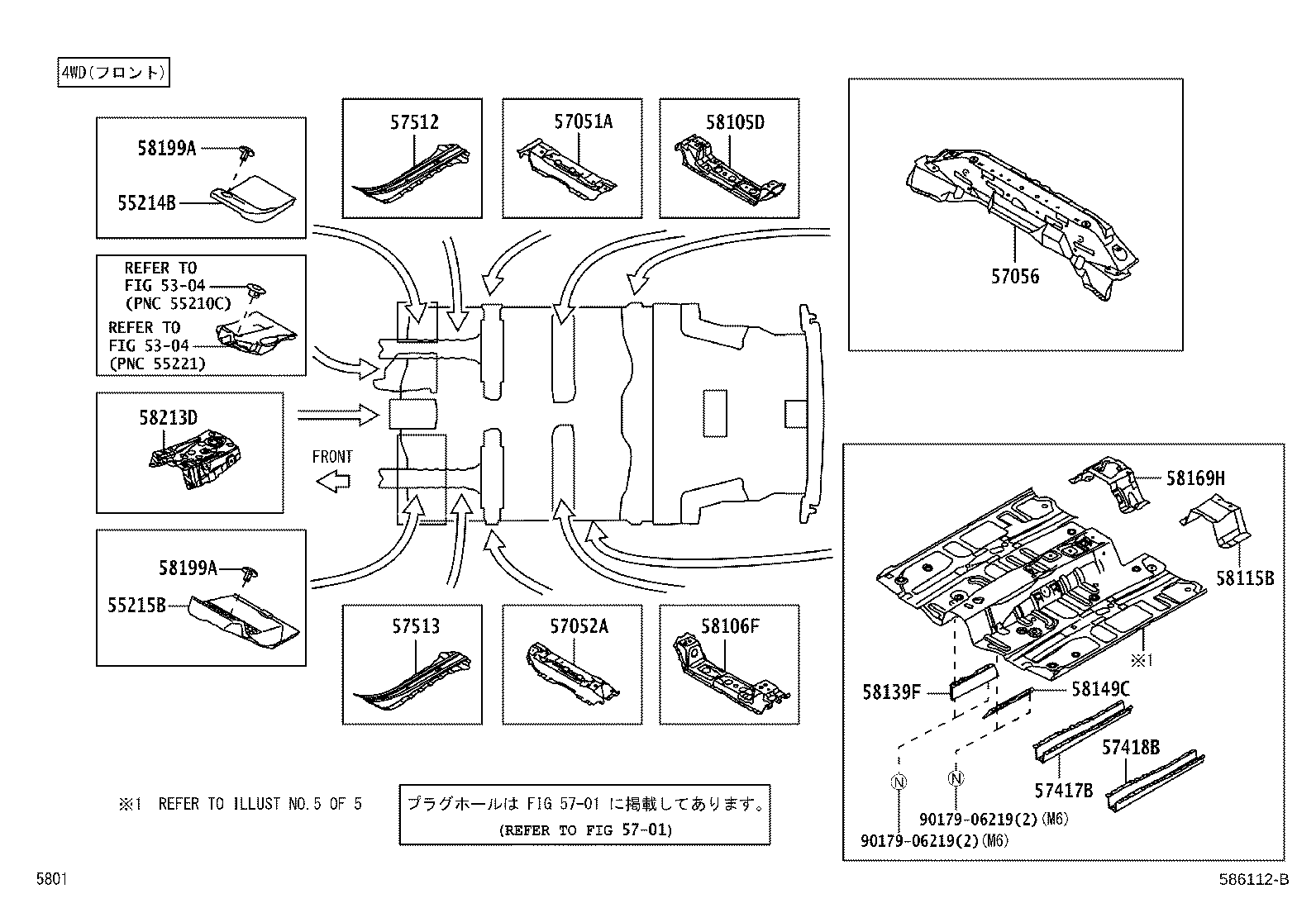

ILLUST NO. 3 OF 5(1705- )LA360
Click highlighted areas on diagram
4WD FR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55214B - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-B2150 |
LA350,360 |
1 | ||
| 55215B - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-B2090 |
LA350,360 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-B2180 |
LA350,360 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-B2220 |
LA350,360 |
1 | ||
| 57056 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.6 | ||||
| 57053-B2390 |
LA360..B,G,L,X |
1 | ||
| 57417B - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-B2130 |
LA350,360 右側 |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-B2130 |
LA350,360 左側 |
1 | ||
| 57512 - REINFORCEMENT, FRONT FLOOR, RH | ||||
| 57427-B2060 |
LA350,360 右側 |
1 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57427-B2060 |
LA350,360 左側 |
1 | ||
| 58105D - RETAINER SUB-ASSY, SEAT RAIL, REAR RH | ||||
| 58105-B2120 |
LA350,360 |
1 | ||
| 58106F - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH | ||||
| 58106-B2070 |
LA350,360 |
1 | ||
| 58115B - PANEL, FRONT FLOOR, REAR | ||||
| 58114-B2020 |
LA360..B,G,L,X |
1 | ||
| 58139F - PLATE, FRONT FLOOR SIDE, REAR RH | ||||
| 58139-B2080 |
LA360..B,G,L,X 右側 |
1 | ||
| 58149C - PLATE, FRONT FLOOR SIDE, REAR LH | ||||
| 58139-B2080 |
LA360..B,G,L,X 左側 |
1 | ||
| 58169H - PATCH, FRONT FLOOR, REAR | ||||
| 58169-B2070 |
LA360..B,G,L,X |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-B2010C0 |
LA350,360 BLACK |
2 | ||
| 90044-67397 |
LA350,360 |
2 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-B2010C0 |
LA350,360 BLACK |
2 | ||
| 90044-67397 |
LA350,360 |
2 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-B2280 |
LA350,360 |
1 | ||
| Common parts | ||||
| 90179-06219 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 5701 | ||||

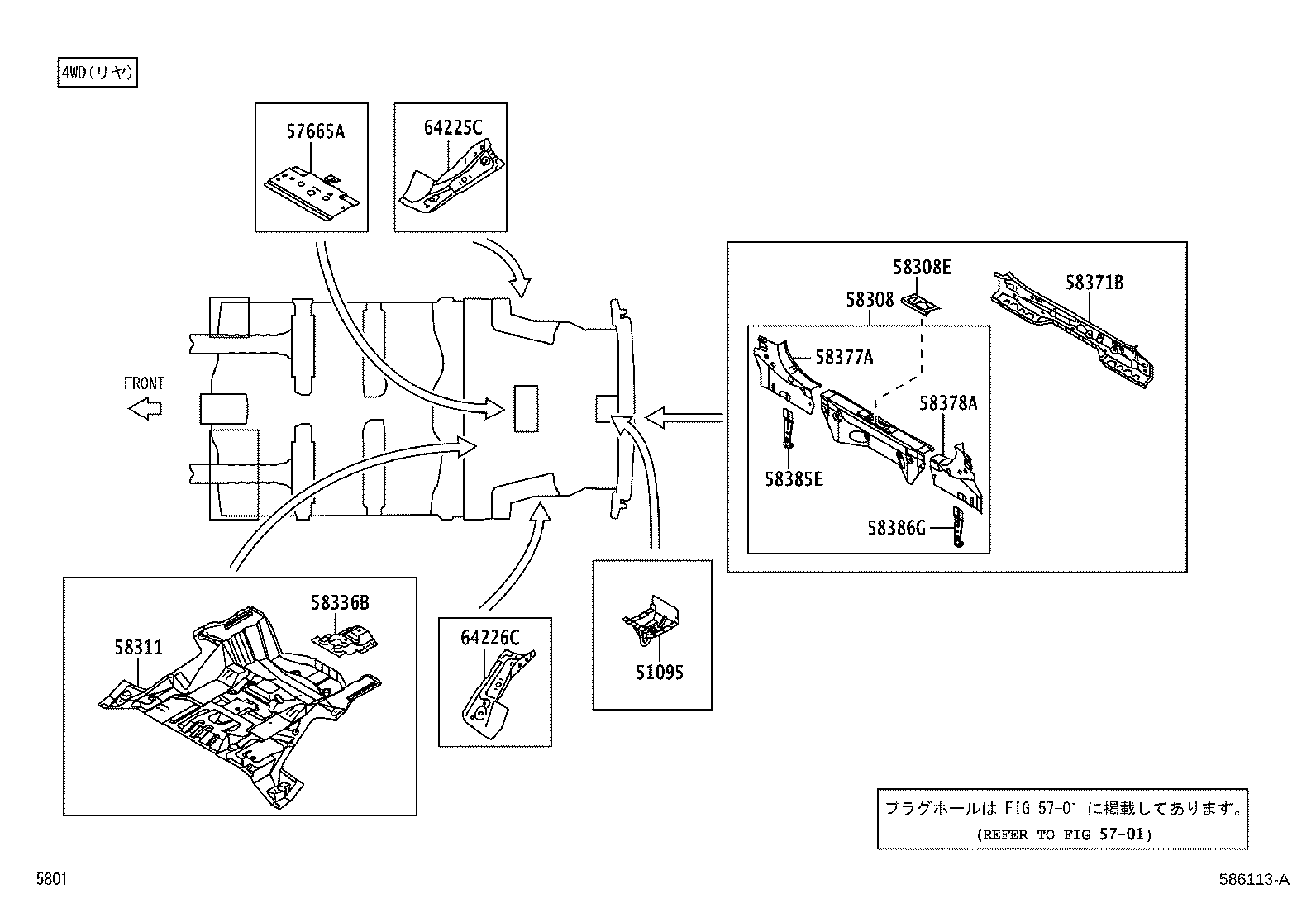

ILLUST NO. 4 OF 5(1705- )LA360
Click highlighted areas on diagram
4WD RR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095 - HOOK, TRANSPORT, REAR | ||||
| 51095-B2090 |
LA360..B,G,L,X |
1 | ||
| 57665A - REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2 | ||||
| 57665-B2150 |
LA360..B,G,L,X |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-B2410 |
LA350,360 |
1 | ||
| 58308E - COVER, HOLE(FOR LOWER BACK) | ||||
| 64716-B2240C0 |
LA350,360 BLACK,TRIM2# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-B2310 |
LA360..B,G,L,X |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-B2060 |
LA360..B,G,L,X |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58371-B2290 |
LA350,360 |
1 | ||
| 58377A - PANEL, BODY LOWER BACK, RH | ||||
| 61613-B2310 |
LA350,360 |
1 | ||
| 58378A - PANEL, BODY LOWER BACK, LH | ||||
| 61614-B2310 |
LA350,360 |
1 | ||
| 58385E - BRACKET, REAR BUMPER COVER, RH | ||||
| 52169-B2051 |
LA350,360 |
1 | ||
| 58386G - BRACKET, REAR BUMPER COVER, LH | ||||
| 52169-B2051 |
LA350,360 |
1 | ||
| 64225C - PATCH, REAR SEAT SET, RH | ||||
| 64225-B2220 |
LA350,360 |
1 | ||
| 64226C - PATCH, REAR SEAT SET, LH | ||||
| 64226-B2210 |
LA350,360 |
1 | ||
| Linked diagrams | ||||
| 5701 | ||||

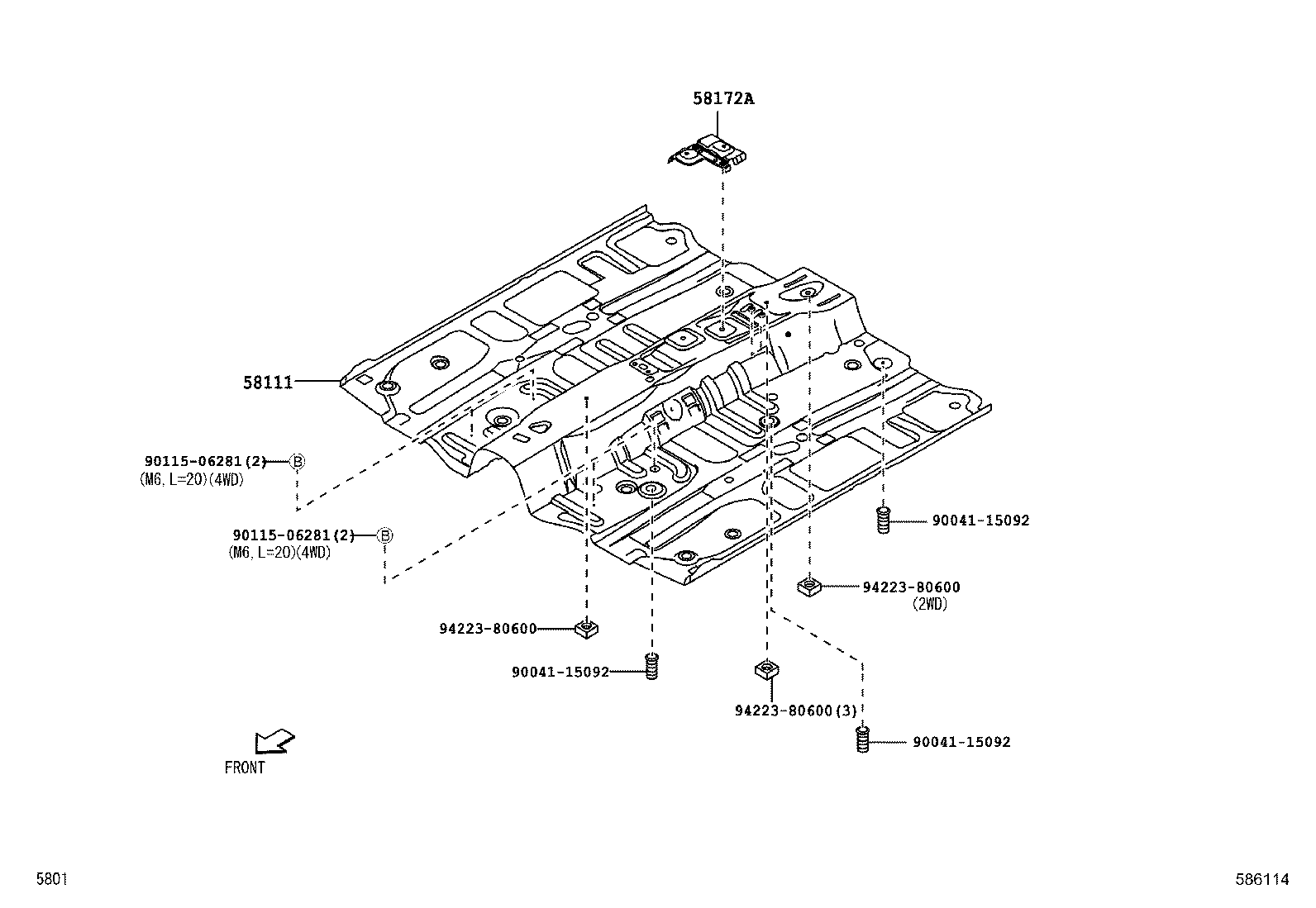

ILLUST NO. 5 OF 5(1705- )
Click highlighted areas on diagram
ﾌﾛﾝﾄﾌﾛｱﾊﾟﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-B2926 |
LA360..B,G,L,X |
1 | ||
| 58172A - PLATE, PARKING BRAKE MOUNTING | ||||
| 46521-B2040 |
LA350,360 |
1 | ||
| Common parts | ||||
| 90041-15092 | ||||
| 90115-06281 | ||||
| 94223-80600 | ||||
