LA350A-GBRF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )G

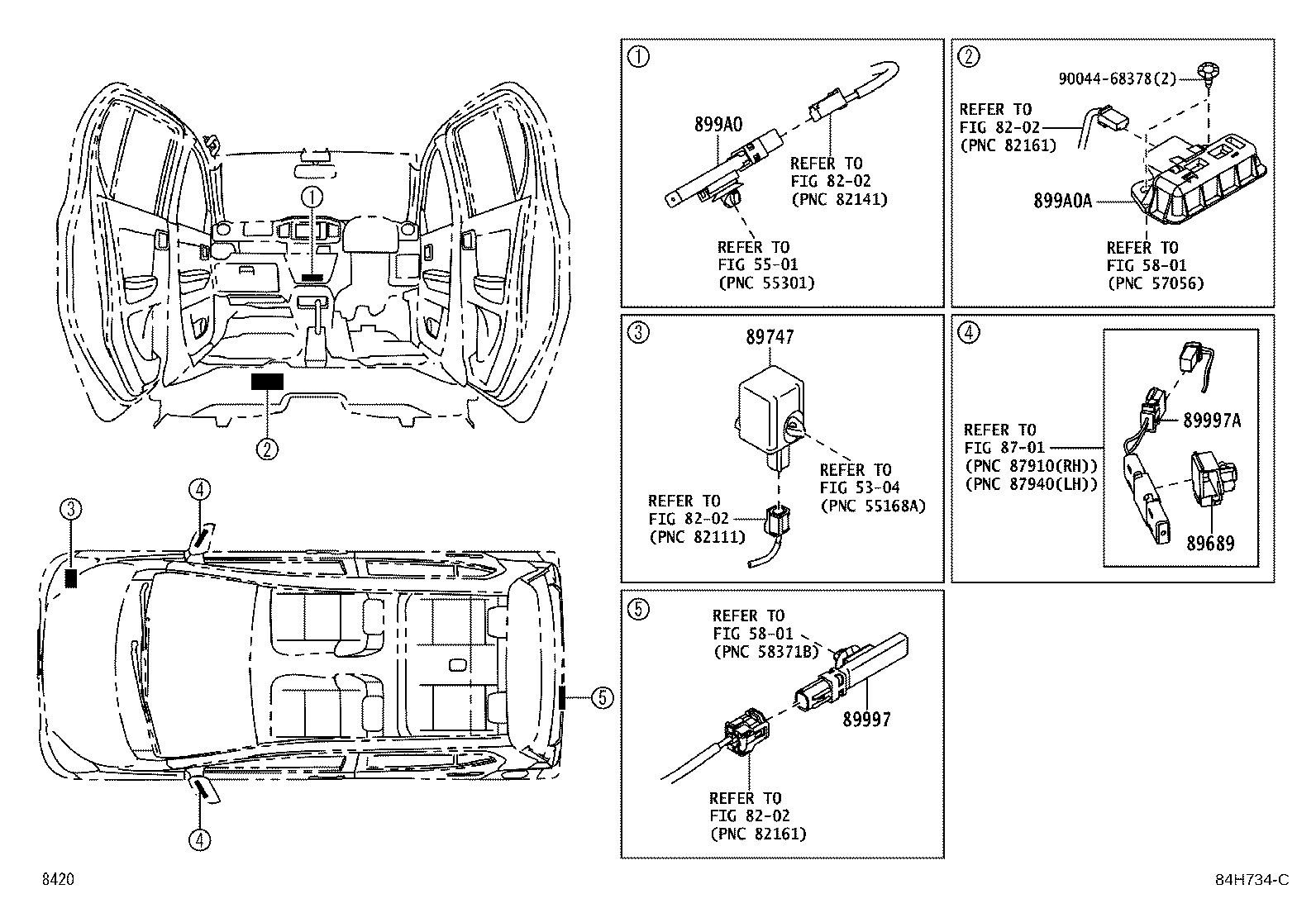

Click highlighted areas on diagram

diagram 5304 5501 5801 5801 8202 8202 8202 8202 8701 89689 89747 89997 89997A 899A0 899A0A 9004468378
Part # Description Qty Price
89689 - CLAMP, WIRELESS DOOR LOCK
87616-B2010

LA350,360..G

 2
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

LA350,360..G

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-B1100

LA350,360..G

 1
89997A - ANTENNA, ELECTRICAL KEY, NO.2
89997-B2380

LA350,360..G

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
89997-B2360

LA350,360..G

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
89997-B2430

LA350,360..G

 1
Common parts
90044-68378
Linked diagrams
5304
5501
5801
8202
8701
