LA350A-GBRF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )

Click highlighted areas on diagram

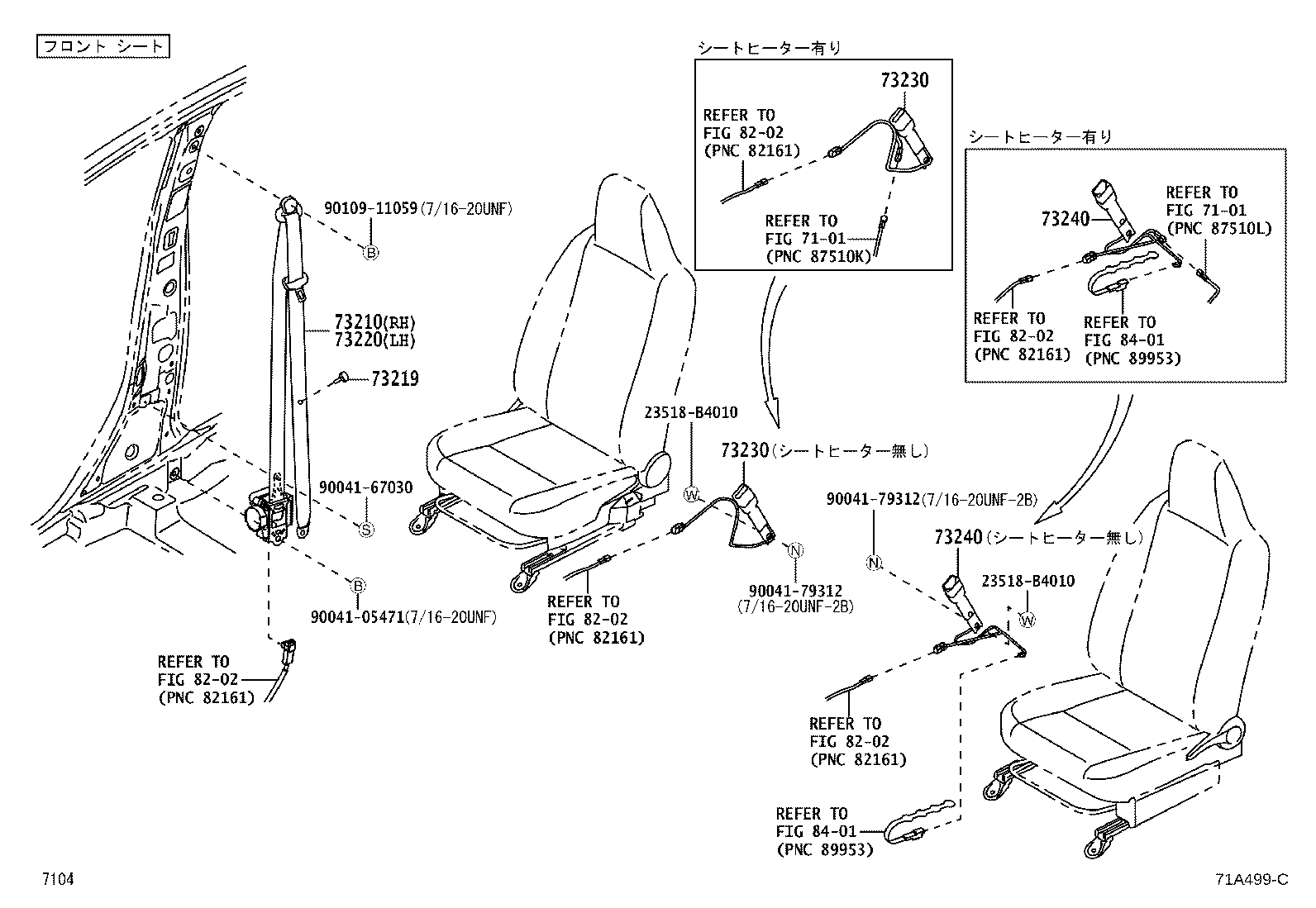

ﾌﾛﾝﾄ ｼｰﾄ

diagram 23518B4010 23518B4010 7101 7101 73210 73219 73220 73230 73230 73240 73240 8202 8202 8202 8202 8202 8401 8401 9004105471 9004167030 9004179312 9004179312 9010911059
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-B2B30C1

LA350,360

BLACK,TRIM2#

 1
73219 - STOPPER, TONGUE PLATE
73690-87401

LA350,360

ﾌﾞﾗｯｸ

 1
73690-B1010

LA350,360

ﾍﾞｰｼﾞｭ

 1
73690-B1020

LA350,360

ｸﾞﾚｰ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-B2C00C1

LA350,360

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-B2490C0

LA350,360..G

BLACK,TRIM2#

 1
73230-B2491C0

LA350,360..G

BLACK,TRIM2#

 1
73230-B2480C0

LA350,360..B,L,X

BLACK,TRIM2#

 1
73230-B2481C0

LA350,360..B,L,X

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-B2490C0

LA350,360..G

BLACK,TRIM2#

 1
73230-B2491C0

LA350,360..G

BLACK,TRIM2#

 1
73230-B2480C0

LA350,360..B,L,X

BLACK,TRIM2#

 1
73230-B2481C0

LA350,360..B,L,X

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-B2640C0

LA350,360..B,L,X

BLACK,TRIM2#

 1
73230-B2841C0

LA350,360..G

BLACK,TRIM2#

 1
73230-B2641C0

LA350,360..B,L,X

BLACK,TRIM2#

 1
73230-B2840C0

LA350,360..G

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-B2640C0

LA350,360..B,L,X

BLACK,TRIM2#

 1
73230-B2841C0

LA350,360..G

BLACK,TRIM2#

 1
73230-B2641C0

LA350,360..B,L,X

BLACK,TRIM2#

 1
73230-B2840C0

LA350,360..G

BLACK,TRIM2#

 1
Common parts
23518-B4010
90041-05471
90041-67030
90041-79312
90109-11059
Linked diagrams
7101
8202
8401

(1705- )

Click highlighted areas on diagram

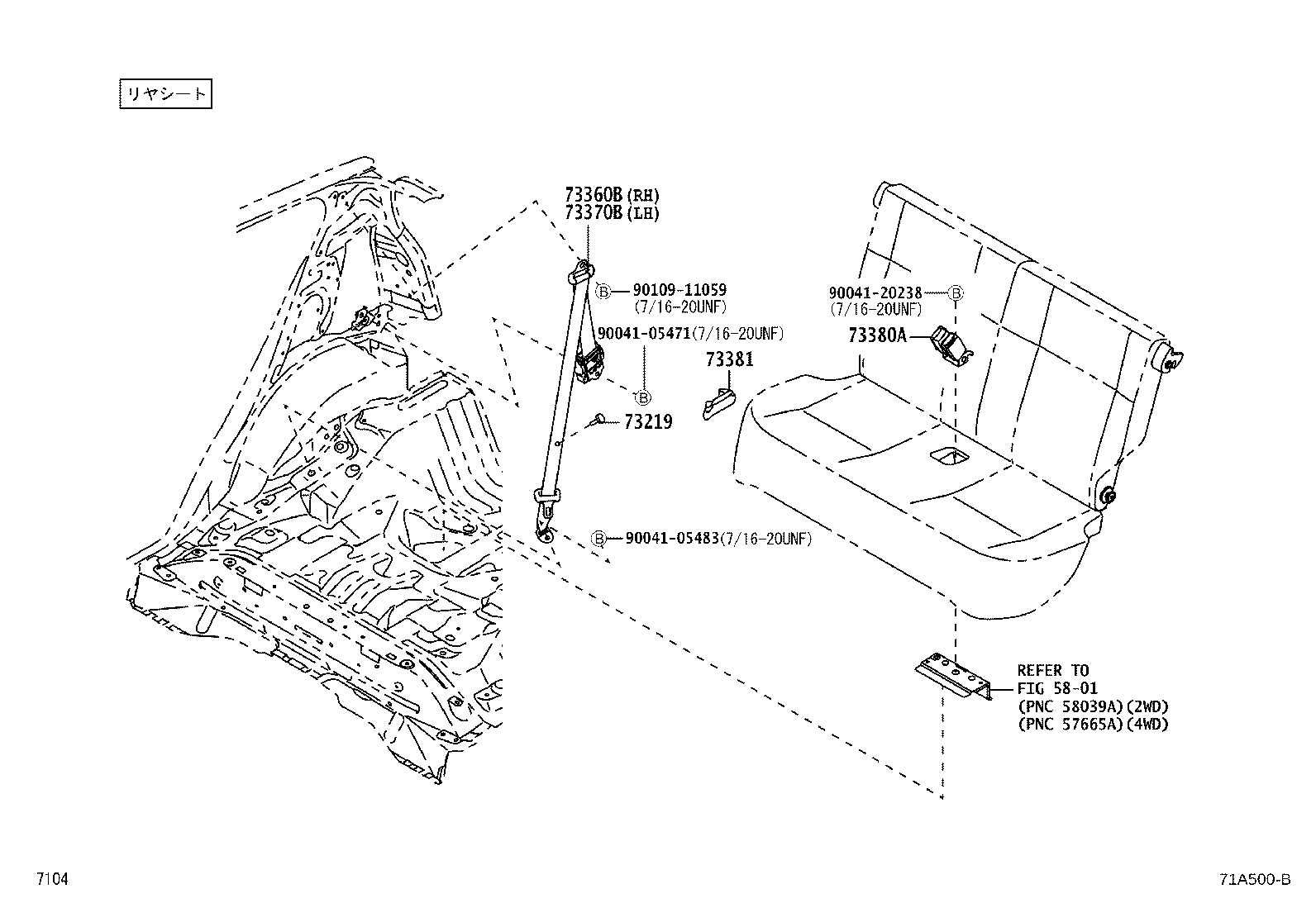

ﾘﾔ ｼｰﾄ

diagram 5801 73219 73360B 73370B 73380A 73381 9004105471 9004105483 9004120238 9010911059
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73690-87401

LA350,360

ﾌﾞﾗｯｸ

 1
73690-B1010

LA350,360

ﾍﾞｰｼﾞｭ

 1
73690-B1020

LA350,360

ｸﾞﾚｰ

 1
73360B - BELT ASSY, REAR SEAT, OUTER
73360-B2500C1

LA350,360

BLACK,TRIM2#

 1
73370B - BELT ASSY, REAR SEAT, OUTER
73370-B2500C1

LA350,360

BLACK,TRIM2#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-B2350C0

LA350,360

BLACK,TRIM2#

 1
73381 - HOLDER, REAR SEAT BELT
73381-87202C0

LA350,360

BLACK,TRIM2#

 2
Common parts
90041-05471
90041-05483
90041-20238
90109-11059
Linked diagrams
5801
