LA350A-GBRF (2017)
Toyota Pixis Epoch
Production
May 2017
-
Sep 9999
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )LA350

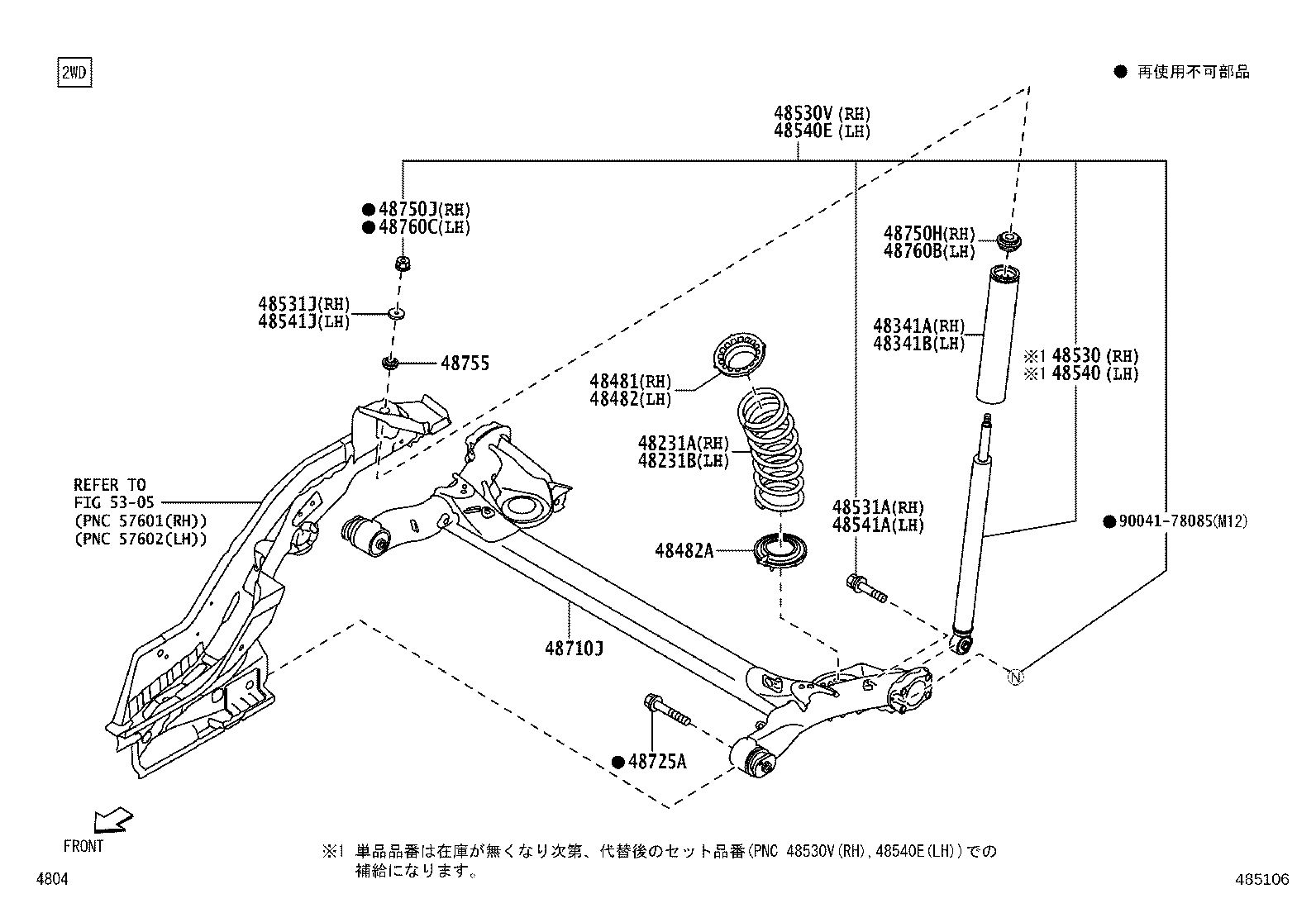

Click highlighted areas on diagram
2WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-B2D10 |
LA350 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-B2D10 |
LA350 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-B2170 |
LA350 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-B2170 |
LA350 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-B2020 |
LA350 |
1 | ||
| 48482 - SEAT, REAR SPRING, UPPER LH | ||||
| 48481-B2020 |
LA350 |
1 | ||
| 48482A - SEAT, REAR SPRING, LOWER | ||||
| 48482-B2060 |
LA350 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-B2J90 |
LA350..B,L ﾏｰｸ 48531−B2J90 |
1 | ||
| 48531-B2K00 |
LA350..G,X ﾏｰｸ 48531−B2K00 |
1 | ||
| 48530V - ABSORBER SET, SHOCK, REAR RH | ||||
| 48530-B9130 |
LA350..B,L ﾏｰｸ 48531−B2J90 |
1 | ||
| 48530-B9135 |
LA350..G,X ﾏｰｸ 48531−B2K00 |
1 | ||
| 48531A - BOLT, UNION(FOR REAR SHOCK ABSORBER RH) | ||||
| 90041-19A06 |
LA350,360 M12,L=60.5/ﾜｯｼｬｰｱﾘ |
1 | ||
| 90041-01716 |
LA350,360 M12,L=64.5/ﾜｯｼｬｰﾅｼ |
1 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90042-01758 |
LA350,360 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-B2J90 |
LA350..B,L ﾏｰｸ 48531−B2J90 |
1 | ||
| 48531-B2K00 |
LA350..G,X ﾏｰｸ 48531−B2K00 |
1 | ||
| 48540E - ABSORBER SET, SHOCK, REAR LH | ||||
| 48530-B9135 |
LA350..G,X ﾏｰｸ 48531−B2K00 |
1 | ||
| 48530-B9130 |
LA350..B,L ﾏｰｸ 48531−B2J90 |
1 | ||
| 48541A - BOLT, UNION(FOR REAR SHOCK ABSORBER LH) | ||||
| 90041-01716 |
LA350,360 M12,L=64.5/ﾜｯｼｬｰﾅｼ |
1 | ||
| 90041-19A06 |
LA350,360 M12,L=60.5/ﾜｯｼｬｰｱﾘ |
1 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90042-01758 |
LA350,360 |
1 | ||
| 48710J - ARM ASSY, REAR SUSPENSION, NO.1 | ||||
| 48710-B2110 |
LA350 |
1 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90041-19A37 |
LA350 M12,L=117 |
2 | ||
| 90041-19A48 |
LA350 M12,L=117 |
2 | ||
| 48718-B2031 |
LA350 M12,L=114 |
2 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-B2050 |
LA350 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94188-01001 |
LA350,360 M10 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-B2030 |
LA350 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-B2050 |
LA350 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94188-01001 |
LA350,360 M10 |
1 | ||
| Common parts | ||||
| 90041-78085 | ||||
| Linked diagrams | ||||
| 5305 | ||||
