LA350A-GBMF (2017)
Toyota Pixis Epoch
Production
May 2017
-
Sep 9999
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

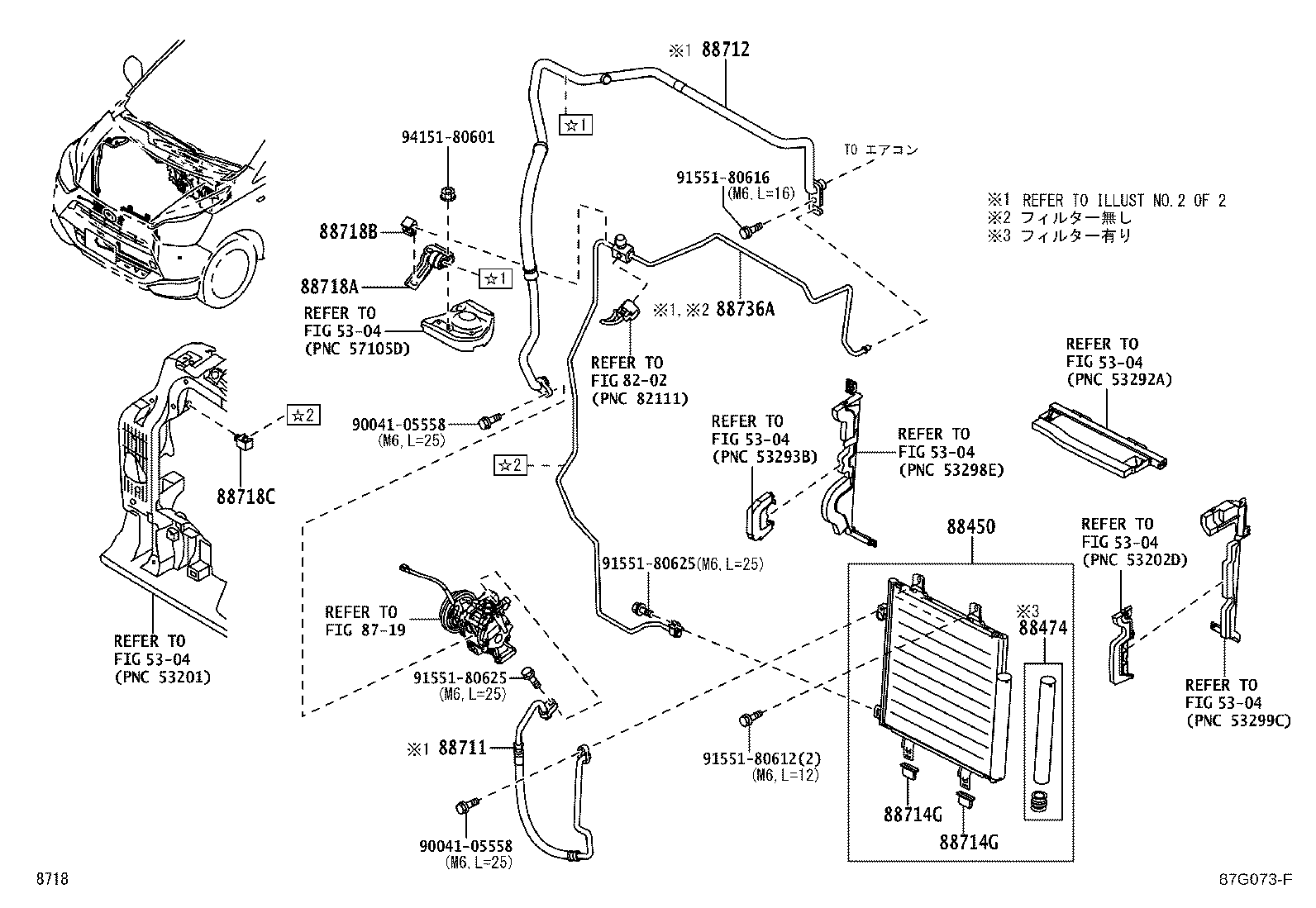

ILLUST NO. 1 OF 2(1705- )
Click highlighted areas on diagram
ILLUST NO.1 OF 2/ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88460-B2020 |
LA350,360 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-B2010 |
LA350,360 ﾌｨﾙﾀ有り |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B2260 |
LA350,360 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-B2430 |
LA350,360 |
1 | ||
| 88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88714-B2010 |
LA350,360 |
2 | ||
| 88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88714-B2010 |
LA350,360 |
2 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-B2220 |
LA350,360 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-13060 |
LA350,360 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-13060 |
LA350,360 |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-B2610 |
LA350,360 ﾌｨﾙﾀ無し |
1 | ||
| Common parts | ||||
| 90041-05558 | ||||
| 91551-80612 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 94151-80601 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 8202 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(1705- )
Click highlighted areas on diagram

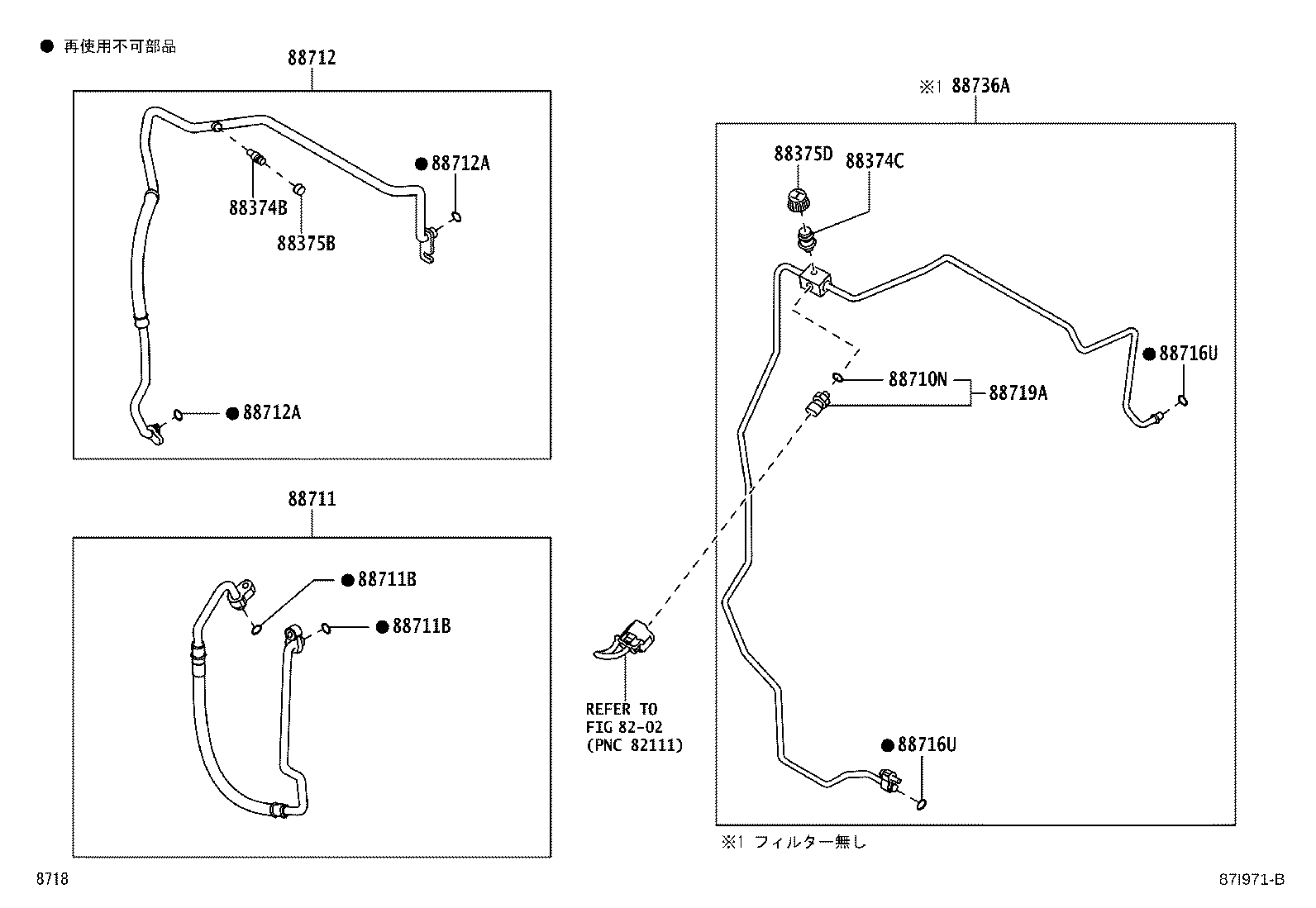

ILLUST NO.2 OF 2/ｻｸｼｮﾝﾎｰｽ,ﾘｷｯﾄﾞﾎｰｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-87601 |
LA350,360 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-87601 |
LA350,360 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-87601 |
LA350,360 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-87603 |
LA350,360 |
1 | ||
| 88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE | ||||
| 15188-B5090 |
LA350,360 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B2260 |
LA350,360 |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
LA350,360 |
2 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
LA350,360 |
2 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-B2430 |
LA350,360 |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
LA350,360 |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
LA350,360 |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 15188-87401 |
LA350,360 |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 15188-87401 |
LA350,360 |
2 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-B2020 |
LA350,360 |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-B2610 |
LA350,360 ﾌｨﾙﾀ無し |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
