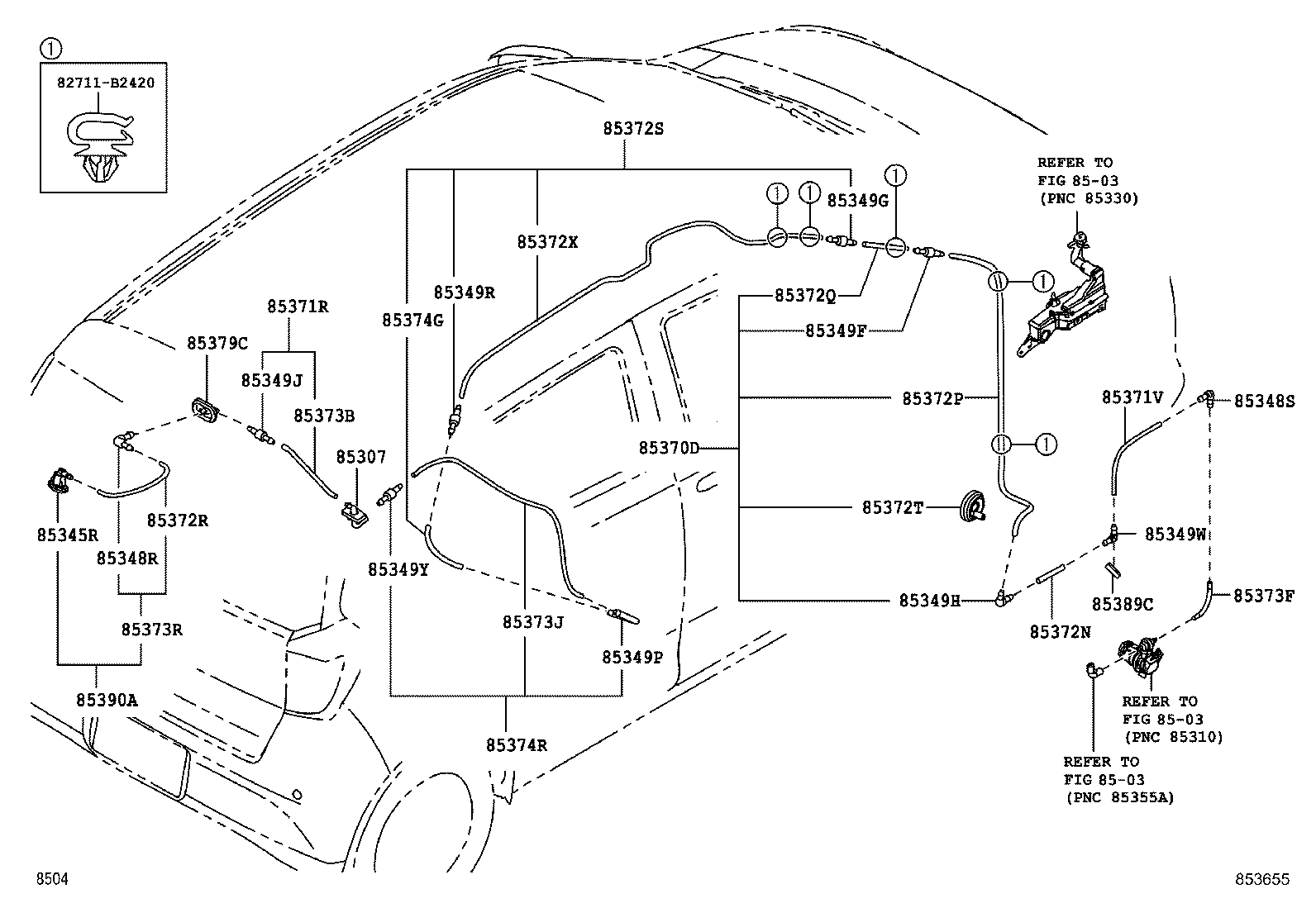

LA350A-GBGF (2017)
Toyota Pixis Epoch
(1705- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85307 - GROMMET SUB-ASSY, WASHER | ||||
| 85307-B2080 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-B2070 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-87602 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85349-87602 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-87201 |
LA350 寒冷地仕様 |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-87201 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-87602 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85349J - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-87201 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85349P - JOINT, REAR WASHER ELBOW, NO.3 | ||||
| 85355-97202 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-87201 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85349W - JOINT, REAR WASHER ELBOW, NO.4 | ||||
| 85349-87602 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85349Y - JOINT, REAR WASHER ELBOW, NO.5 | ||||
| 85349-87201 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85370D - HOSE ASSY, REAR WASHER, NO.1 | ||||
| 85370-B2J80 |
LA350..B,G,L,X 寒冷地仕様,ﾋﾟﾗｰ側 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 85370-B2K10 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 85376-87202 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=70 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85375-87502 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=80 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85376-87202 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=670 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 85343-97401 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=190 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 85375-87502 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=200 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 85370-B2J90 |
LA350..B,G,L,X 寒冷地仕様,ﾙｰﾌ側 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85373-B1020 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 85376-87201 |
LA350..B,G,L,X 長さ=2000,寒冷地仕様,使用ｻｲｽﾞ L=1960 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 85375-87502 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=150 |
1 | ||
| 85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8 | ||||
| 85376-87202 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=180 |
1 | ||
| 85373J - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.11 | ||||
| 85376-87202 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=470 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 85370-B2E20 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85374G - HOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.6) | ||||
| 85343-97401 |
LA350..B,G,L,X 長さ=1000,寒冷地仕様,使用ｻｲｽﾞ L=100 |
1 | ||
| 85374R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 85370-B2K00 |
LA350..B,G,L,X 寒冷地仕様,HEAD SIDE |
1 | ||
| 85379C - GROMMET, REAR WASHER HOSE NO.1 | ||||
| 85373-B2040 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85389C - PROTECTOR, WASHER | ||||
| 9004C-95002 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| 85390A - NOZZLE & HOSE ASSY, RR WASHER | ||||
| 85390-B2250 |
LA350..B,G,L,X 寒冷地仕様 |
1 | ||
| Common parts | ||||
| 82711-B2420 | ||||
| Linked diagrams | ||||
| 8503 | ||||
