LA350A-GBGF (2017)
Toyota Pixis Epoch
Production
May 2017
-
Sep 9999
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1705- )

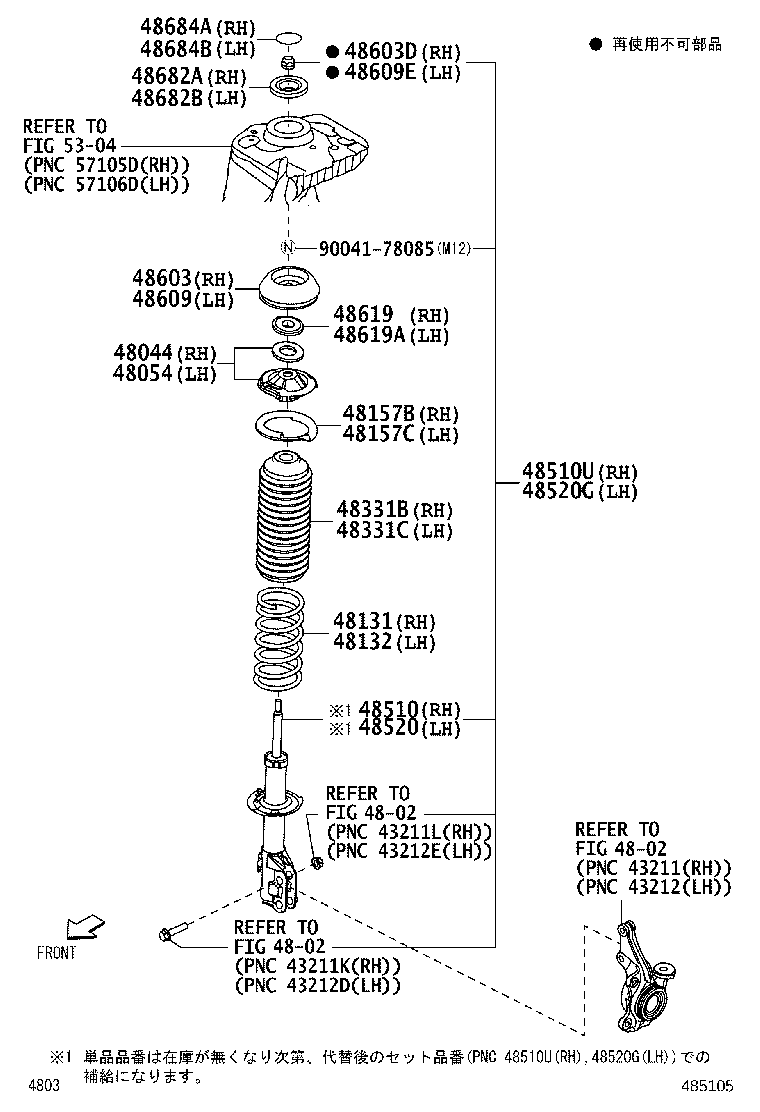

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-B2010 |
LA350,360 |
1 | ||
| 48054 - SEAT SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48044-B2010 |
LA350,360 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-B2E30 |
LA350 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-B2E30 |
LA350 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-B2010 |
LA350,360 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-B2010 |
LA350,360 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-B2090 |
LA350,360 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-B2090 |
LA350,360 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-B2F10 |
LA350..G,X ﾏｰｸ 48510−B2F10 |
1 | ||
| 48510-B2F00 |
LA350..B,L ﾏｰｸ 48510−B2F00 |
1 | ||
| 48510U - ABSORBER SET, SHOCK, FRONT RH | ||||
| 48510-B9075 |
LA350..G,X ﾏｰｸ 48510−B2F10 |
1 | ||
| 48510-B9070 |
LA350..B,L ﾏｰｸ 48510−B2F00 |
1 | ||
| 48510-B9355 |
LA350 ﾏｰｸ 48510−B2G70 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-B2F10 |
LA350..G,X ﾏｰｸ 48510−B2F10 |
1 | ||
| 48510-B2F00 |
LA350..B,L ﾏｰｸ 48510−B2F00 |
1 | ||
| 48520G - ABSORBER SET, SHOCK, FRONT LH | ||||
| 48510-B9070 |
LA350..B,L ﾏｰｸ 48510−B2F00 |
1 | ||
| 48510-B9075 |
LA350..G,X ﾏｰｸ 48510−B2F10 |
1 | ||
| 48510-B9355 |
LA350 ﾏｰｸ 48510−B2G70 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-B2080 |
LA350,360 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90041-77018 |
LA350,360 M12 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-B2080 |
LA350,360 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90041-77018 |
LA350,360 M12 |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-B2010 |
LA350,360 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-B2010 |
LA350,360 |
1 | ||
| 48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH | ||||
| 48682-B2010 |
LA350,360 |
1 | ||
| 48682-B2011 |
LA350,360 |
1 | ||
| 48682-B2013 |
LA350,360 |
1 | ||
| 48682-B2012 |
LA350,360 |
1 | ||
| 48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH | ||||
| 48682-B2011 |
LA350,360 |
1 | ||
| 48682-B2010 |
LA350,360 |
1 | ||
| 48682-B2012 |
LA350,360 |
1 | ||
| 48682-B2013 |
LA350,360 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52020 |
LA350,360 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52020 |
LA350,360 |
1 | ||
| Common parts | ||||
| 90041-78085 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 5304 | ||||
