Toyota Pixis epoch LA350A STARTER

LA350A-GBGF (2017)

Toyota Pixis Epoch

Production May 2017 - Sep 9999

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

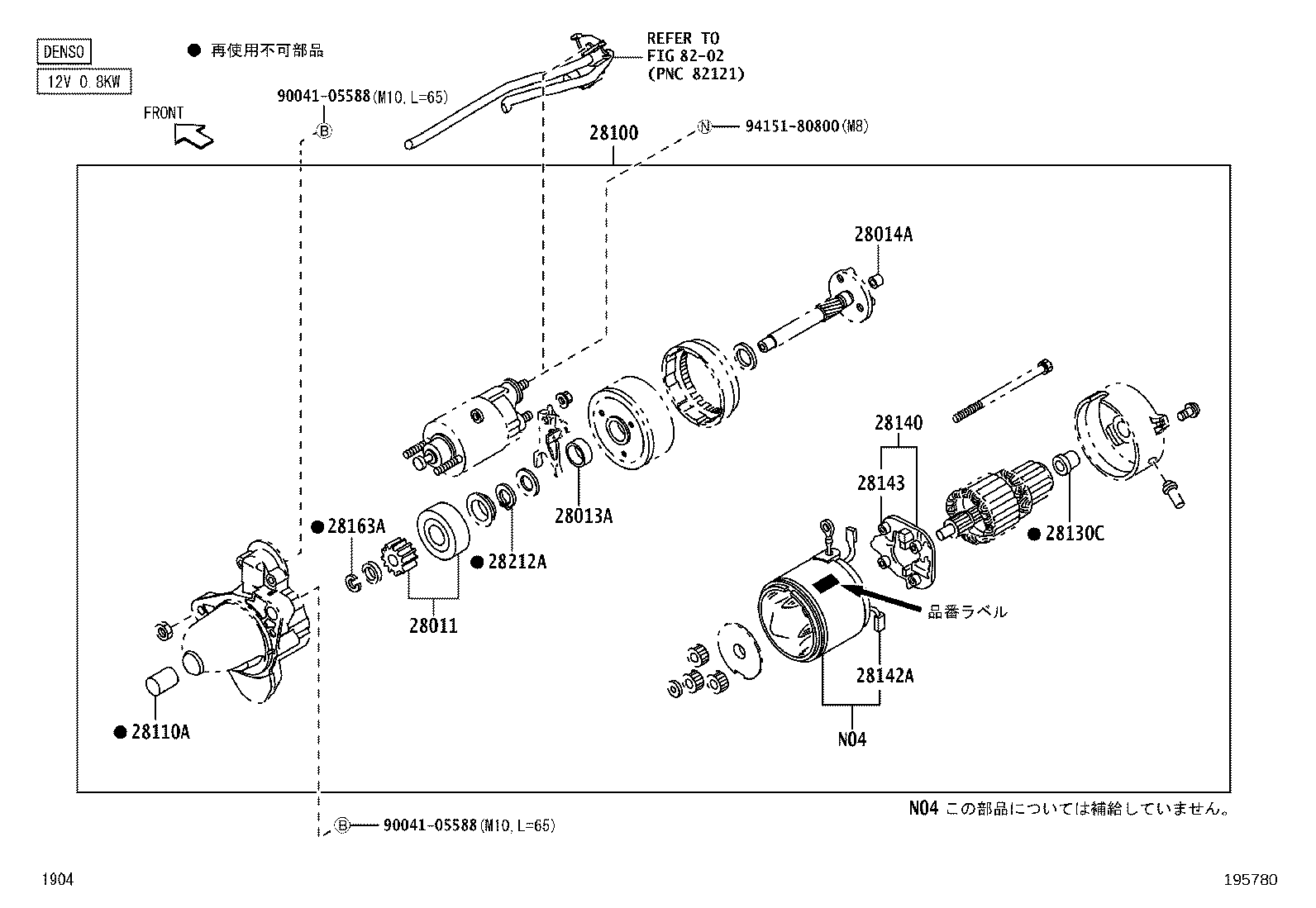

DENSO

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-B2050	KFVE..LA350,360	05/2017 - 12/2999	1
28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
90099-10181	KFVE..LA350,360	05/2017 - 12/2999	1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180	KFVE..LA350,360	05/2017 - 12/2999	1
28100 - STARTER ASSY
28100-B2281	KFVE..LA350,360 12V 0.8KW,DENSO	08/2020 - 12/2999	1
28100-B2272	KFVE..LA350,360 12V 0.9KW,三菱	05/2017 - 07/2018	1
28100-B2280	KFVE..LA350,360 12V 0.8KW,DENSO	05/2017 - 07/2020	1
28110A - BEARING(FOR STARTER HOUSING)
28277-87201	KFVE..LA350,360 DENSO	05/2017 - 12/2999	1
28130C - BEARING, STARTER FLANGE
28252-B2020	KFVE..LA350,360 三菱	05/2017 - 07/2018	1
90099-10183	KFVE..LA350,360 DENSO	05/2017 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-B2020	KFVE..LA350,360 三菱	05/2017 - 07/2018	1
28140-B2130	KFVE..LA350,360 DENSO	05/2017 - 12/2999	1
28142A - STARTER KIT
28142-97501	KFVE..LA350,360	05/2017 - 12/2999	2
28143 - SPRING, STARTER BRUSH
28143-87202	KFVE..LA350,360 DENSO	05/2017 - 12/2999	4
28143-B2020	KFVE..LA350,360 三菱	05/2017 - 07/2018	4
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
28274-87503	KFVE..LA350,360	05/2017 - 12/2999	1
28212A - RING, SNAP, STARTER CLUTCH HOUSING DISC
90096-90030	KFVE..LA350,360	05/2017 - 12/2999	1
Common parts
90041-05588
94151-80800
Linked diagrams
8202

Click highlighted areas on diagram

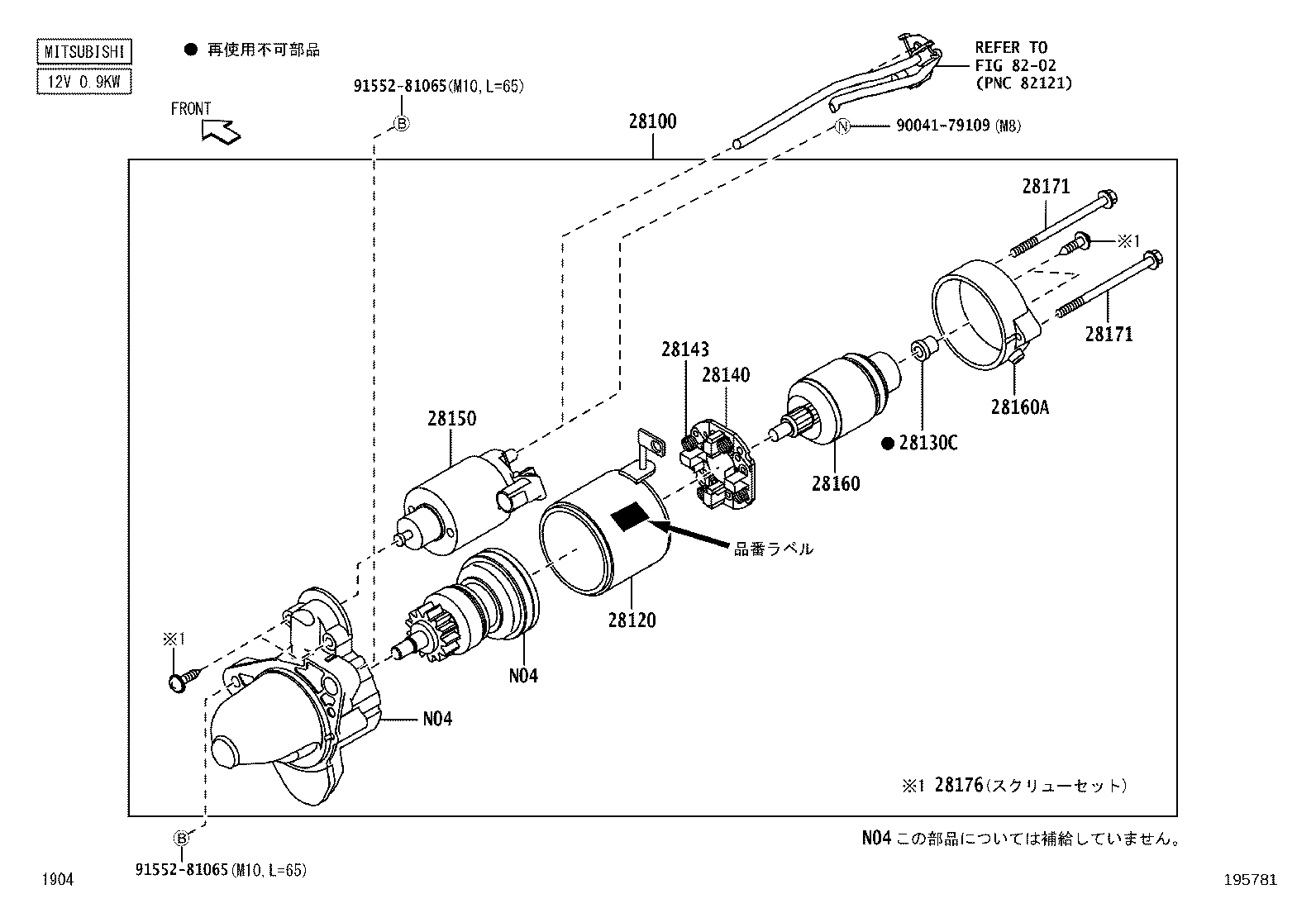

MITSUBISHI

Part #	Description	Period	Qty
28100 - STARTER ASSY
28100-B2281	KFVE..LA350,360 12V 0.8KW,DENSO	08/2020 - 12/2999	1
28100-B2272	KFVE..LA350,360 12V 0.9KW,三菱	05/2017 - 07/2018	1
28100-B2280	KFVE..LA350,360 12V 0.8KW,DENSO	05/2017 - 07/2020	1
28120 - YOKE ASSY, STARTER
28120-B2030	KFVE..LA350,360	05/2017 - 07/2018	1
28130C - BEARING, STARTER FLANGE
28252-B2020	KFVE..LA350,360 三菱	05/2017 - 07/2018	1
90099-10183	KFVE..LA350,360 DENSO	05/2017 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-B2020	KFVE..LA350,360 三菱	05/2017 - 07/2018	1
28140-B2130	KFVE..LA350,360 DENSO	05/2017 - 12/2999	1
28143 - SPRING, STARTER BRUSH
28143-87202	KFVE..LA350,360 DENSO	05/2017 - 12/2999	4
28143-B2020	KFVE..LA350,360 三菱	05/2017 - 07/2018	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-B2050	KFVE..LA350,360	05/2017 - 07/2018	1
28160 - ARMATURE ASSY, STARTER
28160-B2020	KFVE..LA350,360	05/2017 - 07/2018	1
28160A - BEARING, STARTER ARMATURE
9004C-94001	KFVE..LA350,360	05/2017 - 07/2018	1
28171 - BOLT, STARTER
9004C-10008	KFVE..LA350,360	05/2017 - 07/2018	2
28171 - BOLT, STARTER
9004C-10008	KFVE..LA350,360	05/2017 - 07/2018	2
28176 - SCREW, STARTER
28171-B2020	KFVE..LA350,360	05/2017 - 07/2018	1
Common parts
90041-79109
91552-81065
Linked diagrams
8202
