Toyota Pixis epoch LA310A BRAKE TUBE & CLAMP

LA310A-GBPF (2013)

Toyota Pixis Epoch

Production Jul 2013 - Apr 2017

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

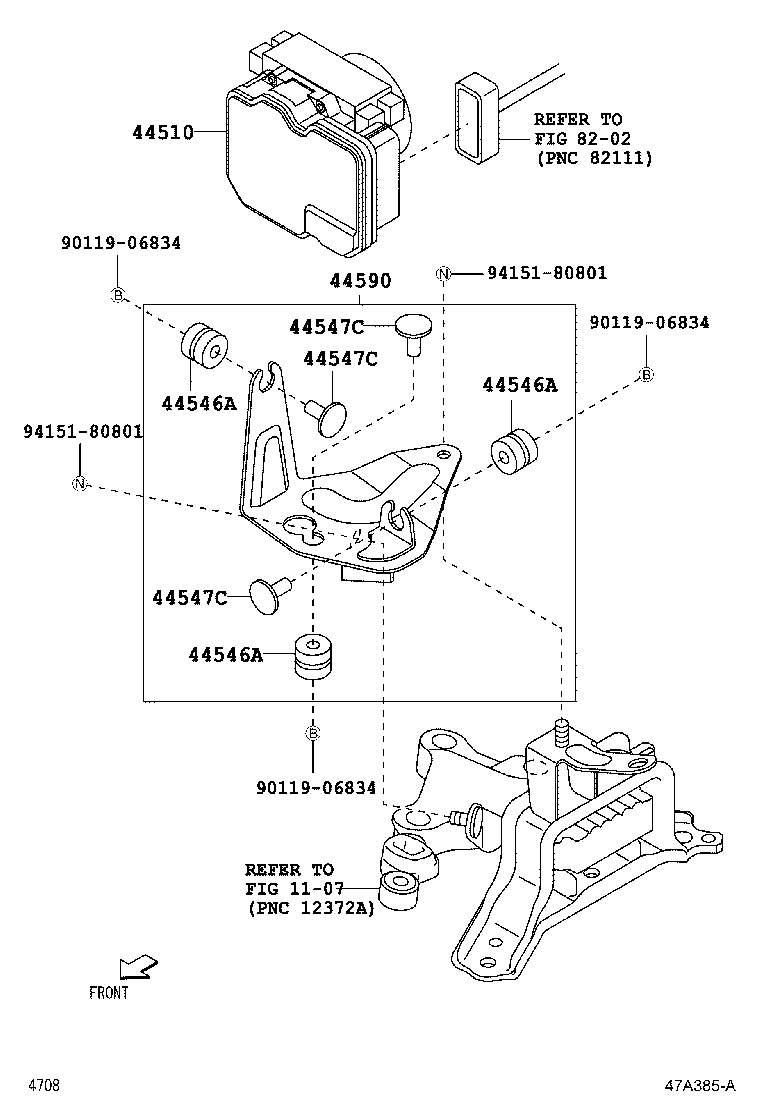

Click highlighted areas on diagram

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-B2630	LA310..GF	04/2012 - 07/2013	1
44050-B2A90	LA310..GF	07/2013 - 04/2015	1
44050-B2F80	LA310..GF	04/2015 - 12/2999	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	LA300,310	07/2013 - 12/2999	3
44546-12110	LA300,310	04/2012 - 07/2013	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	LA300,310	07/2013 - 12/2999	3
44546-12110	LA300,310	04/2012 - 07/2013	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	LA300,310	07/2013 - 12/2999	3
44546-12110	LA300,310	04/2012 - 07/2013	3
44547C - SPACER(FOR BRAKE ACTUATOR BRACKET)
44521-B1010	LA300,310	04/2012 - 07/2013	3
44521-B1010	LA300,310	07/2013 - 12/2999	3
44547C - SPACER(FOR BRAKE ACTUATOR BRACKET)
44521-B1010	LA300,310	04/2012 - 07/2013	3
44521-B1010	LA300,310	07/2013 - 12/2999	3
44547C - SPACER(FOR BRAKE ACTUATOR BRACKET)
44521-B1010	LA300,310	04/2012 - 07/2013	3
44521-B1010	LA300,310	07/2013 - 12/2999	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44591-B2101	LA300,310	04/2015 - 12/2999	1
44591-B2100	LA300,310	07/2013 - 04/2015	1
44591-B2100	LA300,310	04/2012 - 07/2013	1
Common parts
90119-06834
94151-80801
Linked diagrams
1107
8202
