Toyota Pixis epoch LA310A REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48231A - SPRING, COIL, REAR RH
48231-B2A30	LA310	04/2012 - 07/2013	1
48231B - SPRING, COIL, REAR LH
48231-B2A30	LA310	04/2012 - 07/2013	1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-B2020	LA310	04/2012 - 07/2013	1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-B2020	LA310	04/2012 - 07/2013	1
48481 - SEAT, REAR SPRING, UPPER
48481-B2030	LA310	04/2012 - 07/2013	2
48482A - SEAT, REAR SPRING, LOWER
48482-B2040	LA310	04/2012 - 07/2013	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-B2440	LA310 ﾏｰｸ 48530−B2440,品番ﾗﾍﾞﾙ有り	04/2012 - 11/2012	1
48530-B2443	LA310 ﾏｰｸ 48530−B2443,品番ﾗﾍﾞﾙ有り	12/2012 - 07/2013	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-B2443	LA310 ﾏｰｸ 48530−B2443,品番ﾗﾍﾞﾙ有り	12/2012 - 07/2013	1
48530-B2440	LA310 ﾏｰｸ 48530−B2440,品番ﾗﾍﾞﾙ有り	04/2012 - 11/2012	1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-B2210	LA310	04/2012 - 07/2013	1
48718B - SHAFT, REAR SUSPENSION LOWER ARM, NO.1
48718-B2020	LA310	04/2012 - 07/2013	2
48719A - SHAFT, REAR SUSPENSION LOWER ARM, NO.2
48719-B2020	LA310	04/2012 - 07/2013	4
48719A - SHAFT, REAR SUSPENSION LOWER ARM, NO.2
48719-B2020	LA310	04/2012 - 07/2013	4
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48720-B2050	LA310	04/2012 - 07/2013	1
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-B2020	LA310	04/2012 - 07/2013	1
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90043-85102	LA310	04/2012 - 07/2013	2
48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
90043-85102	LA310	04/2012 - 07/2013	2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-B2040	LA310	04/2012 - 07/2013	2
48755 - SUPPORT, REAR SUSPENSION
48755-B2020	LA310	04/2012 - 07/2013	2
Common parts
90041-01622
90041-01698
90041-19A06
90041-70367
90041-77005
90041-78070
90041-78085
90042-01743
90042-01758
90042-09105
90948-03003
91551-80814
94188-01001

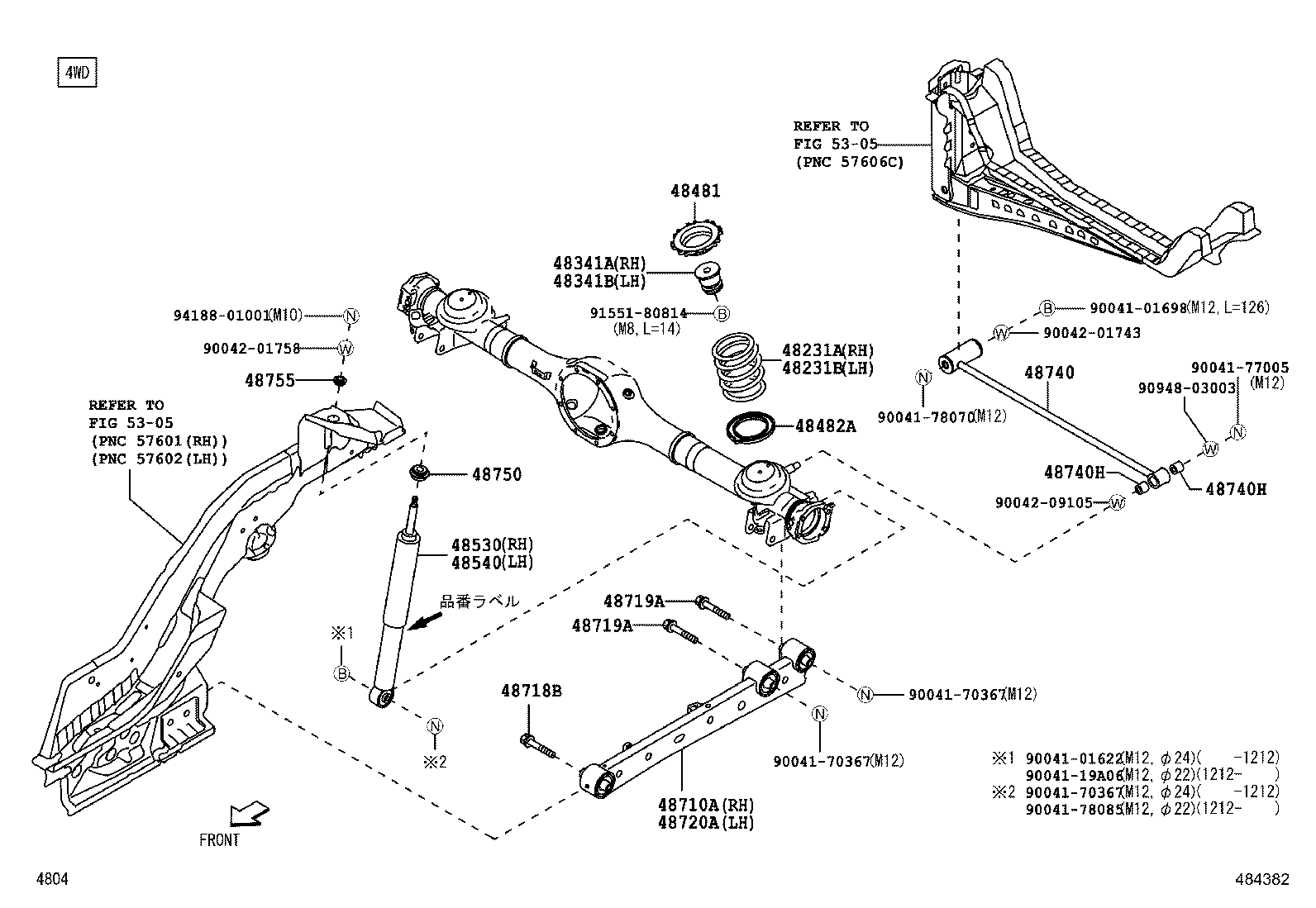

Linked diagrams
5305

LA310A-GBPF (2012)

(1204- )LA310
