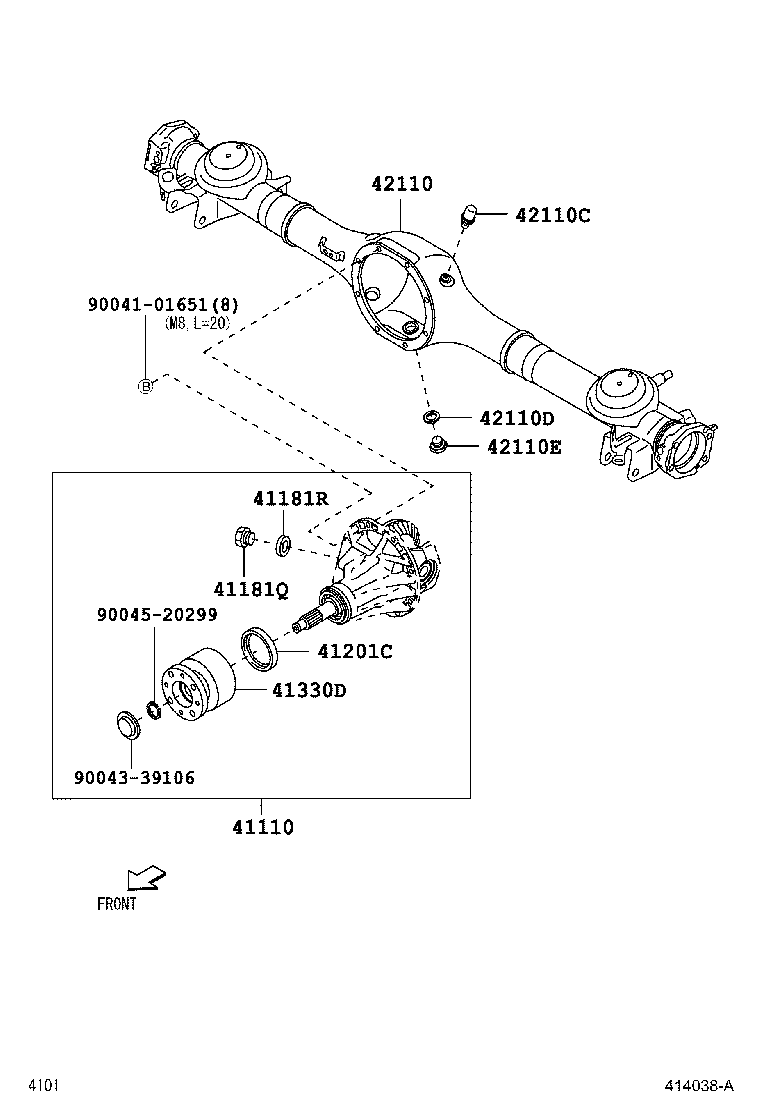

Toyota Pixis epoch LA310A REAR AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-B2190	LA310	07/2013 - 12/2999	1
41110-B2110	LA310	04/2012 - 07/2013	1
41181Q - PLUG(FOR REAR DIFFERENTIAL CARRIER)
90043-41046	LA310	04/2012 - 07/2013	1
90043-41046	LA310	07/2013 - 12/2999	1
41181R - GASKET(FOR REAR DIFFERENTIAL CARRIER PLUG)
90044-30311	LA310	07/2013 - 12/2999	1
90044-30311	LA310	04/2012 - 07/2013	1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90043-11418	LA310	07/2013 - 12/2999	1
90043-11418	LA310	04/2012 - 07/2013	1
41330D - COUPLING ASSY, TRANSMISSION
41330-B2011	LA310	04/2012 - 07/2013	1
41330-B2040	LA310	07/2013 - 12/2999	1
42110 - HOUSING ASSY, REAR AXLE
42110-B2020	LA310	07/2013 - 09/2013	1
42110-B2020	LA310	04/2012 - 07/2013	1
42110-B2022	LA310	10/2013 - 12/2999	1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90049-15026	LA310	07/2013 - 12/2999	1
90049-15026	LA310	04/2012 - 07/2013	1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
90044-30237	LA310	04/2012 - 07/2013	1
90044-30237	LA310	07/2013 - 12/2999	1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90043-41046	LA310	04/2012 - 07/2013	1
90043-41046	LA310	07/2013 - 12/2999	1
Common parts
90041-01651
90043-39106
90045-20299

LA310A-GBMF (2013)
