LA310A-GBMF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )KFVE..LA310

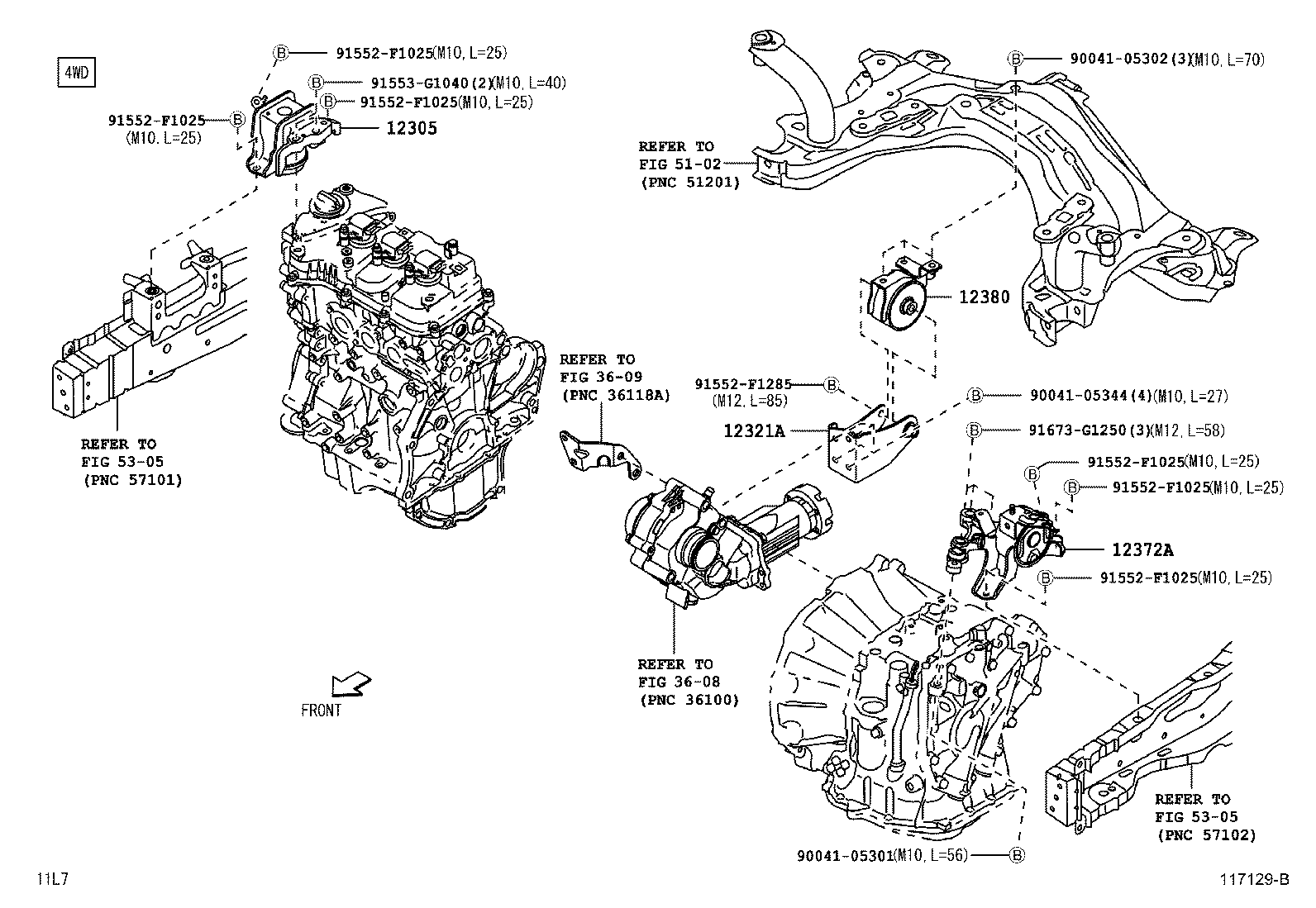

Click highlighted areas on diagram

4WD

diagram 12305 12321A 12372A 12380 3608 3609 5102 5305 5305 9004105301 9004105302 9004105344 91552F1025 91552F1025 91552F1025 91552F1025 91552F1025 91552F1025 91552F1285 91553G1040 91673G1250
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-B2210

KFVE..LA300,310

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-B2090

KFVE..LA310

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-B2050

KFVE..LA310

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-B2071

KFVE..LA310

 1
Common parts
90041-05301
90041-05302
90041-05344
91552-F1025
91552-F1285
91553-G1040
91673-G1250
Linked diagrams
3608
3609
5102
5305
