Toyota Pixis epoch LA310A RADIATOR GRILLE

Part #	Description	Period	Qty

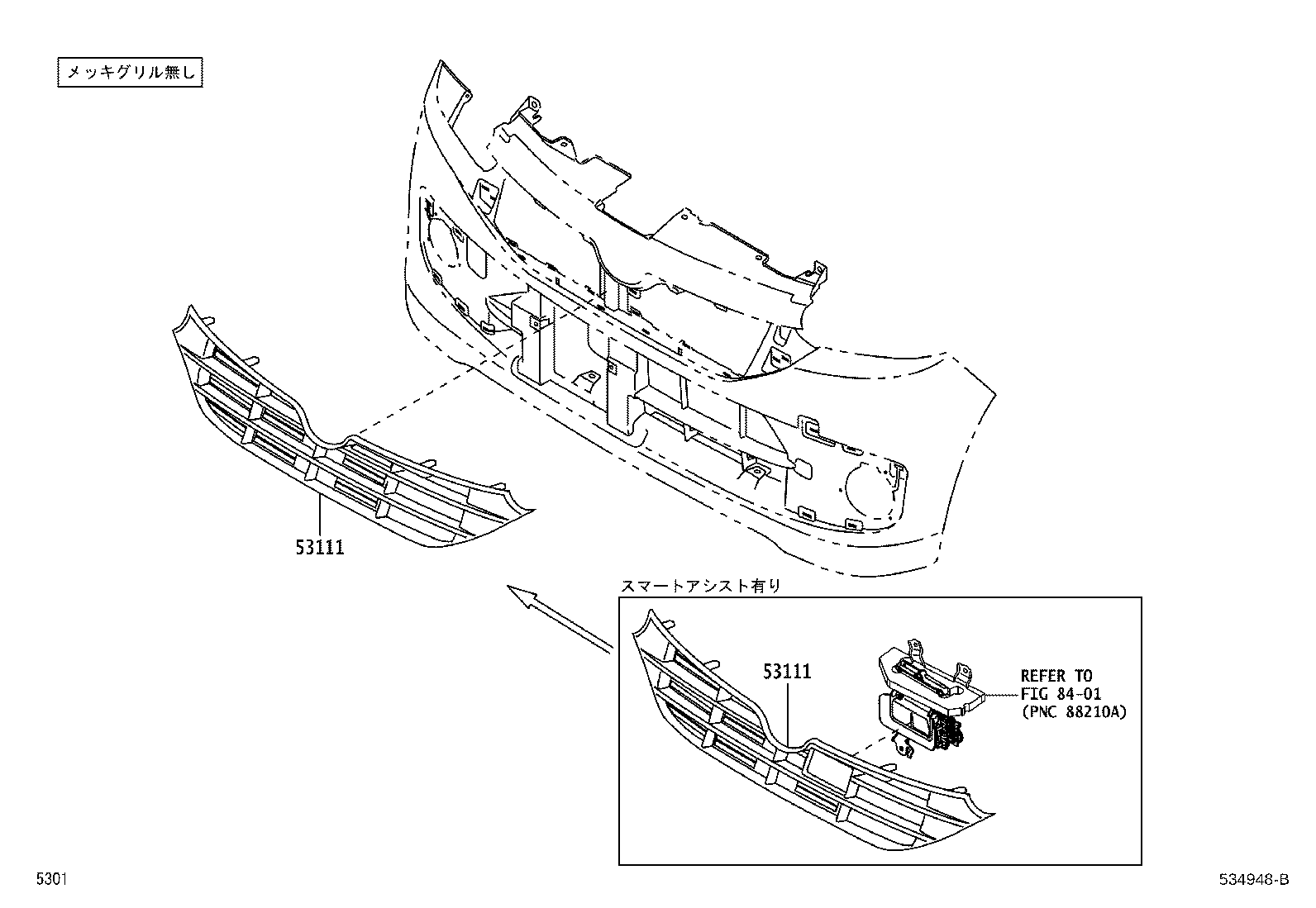

53111 - GRILLE, RADIATOR
53111-B2500	LA300,310..L,LF,X,XF ｽﾏｰﾄｱｼｽﾄﾊﾟｯｸ	07/2013 - 12/2999	1
53111-B2500	LA300,310..G,GF	07/2013 - 12/2999	1
53111-B2340	LA300,310..G,GF ﾒｯｷ	04/2012 - 07/2013	1
53111-B2490	LA300,310..D,L,LF,X,XF	07/2013 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-B2500	LA300,310..L,LF,X,XF ｽﾏｰﾄｱｼｽﾄﾊﾟｯｸ	07/2013 - 12/2999	1
53111-B2500	LA300,310..G,GF	07/2013 - 12/2999	1
53111-B2340	LA300,310..G,GF ﾒｯｷ	04/2012 - 07/2013	1
53111-B2490	LA300,310..D,L,LF,X,XF	07/2013 - 12/2999	1

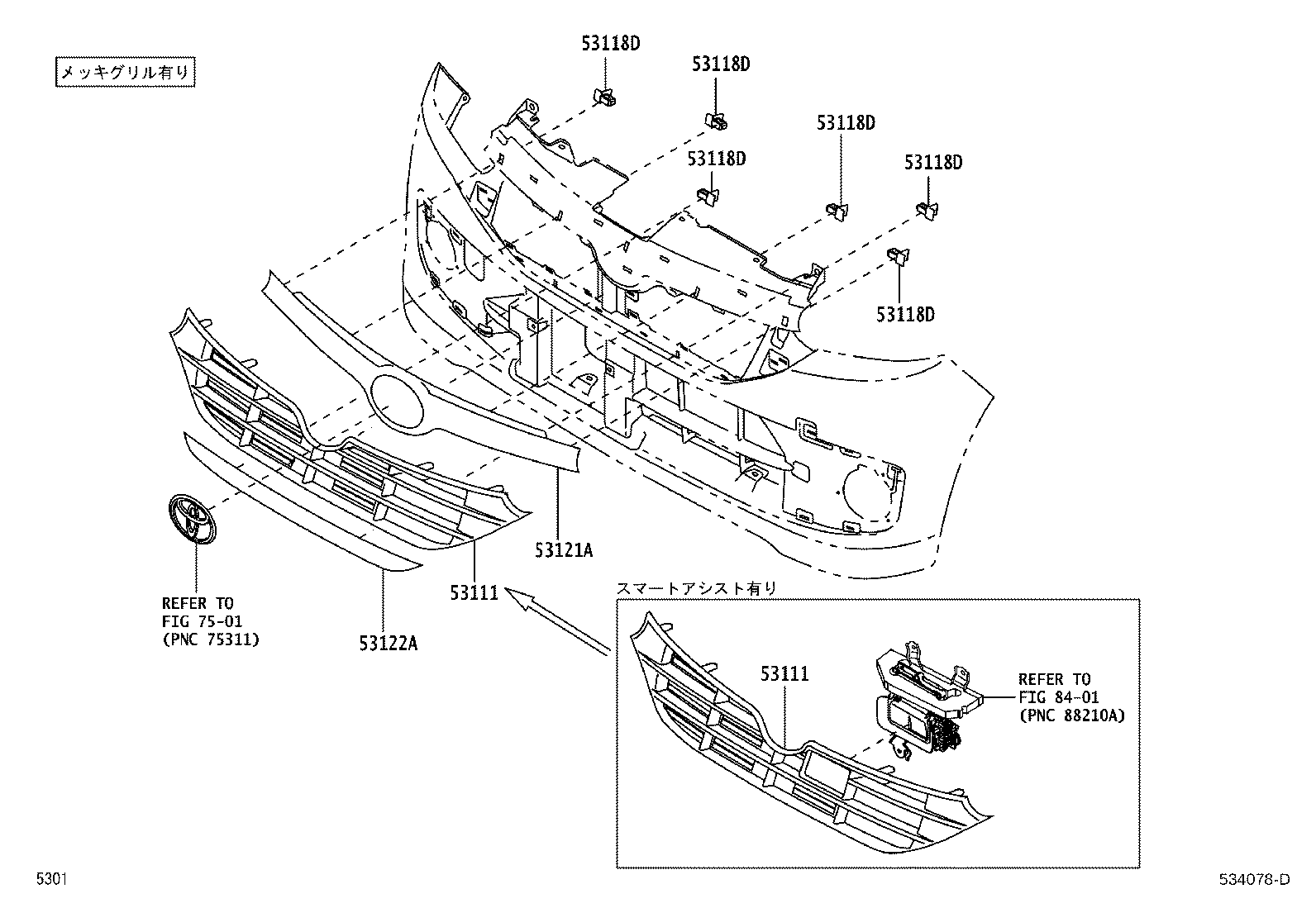

53118D - RETAINER, RADIATOR GRILLE, NO.2
76854-87401	LA300,310..G,GF,X,XF	07/2013 - 04/2017	6
76854-87401	LA300,310..G,GF	04/2012 - 07/2013	4
53118D - RETAINER, RADIATOR GRILLE, NO.2
76854-87401	LA300,310..G,GF,X,XF	07/2013 - 04/2017	6
76854-87401	LA300,310..G,GF	04/2012 - 07/2013	4
53118D - RETAINER, RADIATOR GRILLE, NO.2
76854-87401	LA300,310..G,GF,X,XF	07/2013 - 04/2017	6
76854-87401	LA300,310..G,GF	04/2012 - 07/2013	4
53118D - RETAINER, RADIATOR GRILLE, NO.2
76854-87401	LA300,310..G,GF,X,XF	07/2013 - 04/2017	6
76854-87401	LA300,310..G,GF	04/2012 - 07/2013	4
53118D - RETAINER, RADIATOR GRILLE, NO.2
76854-87401	LA300,310..G,GF,X,XF	07/2013 - 04/2017	6
76854-87401	LA300,310..G,GF	04/2012 - 07/2013	4
53118D - RETAINER, RADIATOR GRILLE, NO.2
76854-87401	LA300,310..G,GF,X,XF	07/2013 - 04/2017	6
76854-87401	LA300,310..G,GF	04/2012 - 07/2013	4
53121A - MOULDING, RADIATOR GRILLE
53121-B2280	LA300,310..G,GF,X,XF ﾒｯｷ	07/2013 - 04/2017	1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-B2180	LA300,310..G,GF,X,XF ﾒｯｷ	07/2013 - 04/2017	1
Linked diagrams
7501
8401

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-B2500	LA300,310..L,LF,X,XF ｽﾏｰﾄｱｼｽﾄﾊﾟｯｸ	07/2013 - 12/2999	1
53111-B2500	LA300,310..G,GF	07/2013 - 12/2999	1
53111-B2340	LA300,310..G,GF ﾒｯｷ	04/2012 - 07/2013	1
53111-B2490	LA300,310..D,L,LF,X,XF	07/2013 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-B2500	LA300,310..L,LF,X,XF ｽﾏｰﾄｱｼｽﾄﾊﾟｯｸ	07/2013 - 12/2999	1
53111-B2500	LA300,310..G,GF	07/2013 - 12/2999	1
53111-B2340	LA300,310..G,GF ﾒｯｷ	04/2012 - 07/2013	1
53111-B2490	LA300,310..D,L,LF,X,XF	07/2013 - 12/2999	1
Linked diagrams
8401

LA310A-GBGF (2013)

(1307- )

(1307- )
