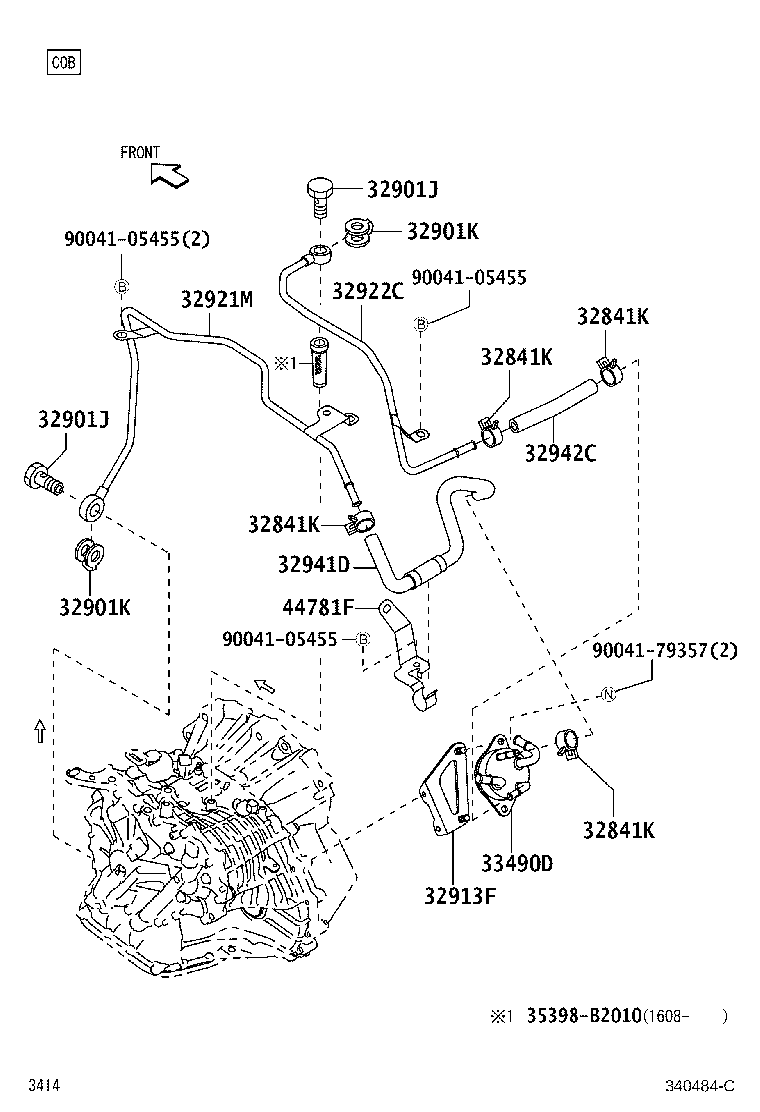

Toyota Pixis epoch LA310A OIL COOLER & TUBE(CVT)

Part #	Description	Period	Qty
32841K - CLIP, NO.1(FOR OIL COOLER HOSE)
90044-67590	LA300,310	07/2013 - 12/2999	4
32841K - CLIP, NO.1(FOR OIL COOLER HOSE)
90044-67590	LA300,310	07/2013 - 12/2999	4
32841K - CLIP, NO.1(FOR OIL COOLER HOSE)
90044-67590	LA300,310	07/2013 - 12/2999	4
32841K - CLIP, NO.1(FOR OIL COOLER HOSE)
90044-67590	LA300,310	07/2013 - 12/2999	4
32901J - BOLT, UNION(FOR OIL COOLER)
90044-01081	LA300,310	04/2012 - 07/2013	2
90044-01081	LA300,310	07/2013 - 12/2999	2
32901J - BOLT, UNION(FOR OIL COOLER)
90044-01081	LA300,310	04/2012 - 07/2013	2
90044-01081	LA300,310	07/2013 - 12/2999	2
32901K - GASKET(FOR OIL COOLER UNION)
90044-30329	LA300,310	04/2012 - 07/2013	2
90044-30329	LA300,310	07/2013 - 12/2999	2
32901K - GASKET(FOR OIL COOLER UNION)
90044-30329	LA300,310	04/2012 - 07/2013	2
90044-30329	LA300,310	07/2013 - 12/2999	2
32913F - BRACKET, TRANSMISSION OIL COOLER
32913-B2050	LA300,310	07/2013 - 04/2017	1
32921M - TUBE, OIL COOLER INLET, NO.1
32904-B2070	LA300,310	07/2013 - 12/2999	1
32904-B2040	LA300,310	04/2012 - 07/2013	1
32922C - TUBE, OIL COOLER OUTLET, NO.1
32905-B2070	LA300,310	04/2012 - 07/2013	1
32905-B2080	LA300,310	07/2013 - 12/2999	1
32941D - HOSE, OIL COOLER INLET
32941-B2120	LA300,310	07/2013 - 12/2999	1
32942C - HOSE, OIL COOLER OUTLET, NO.1
32942-B2130	LA300,310	07/2013 - 12/2999	1
33490D - COOLER ASSY, TRANSMISSION OIL
33490-B2010	LA300,310	07/2013 - 04/2017	1
44781F - BRACKET, HOSE CLAMP
44781-B2020	LA300,310	07/2013 - 12/2999	1
Common parts
35398-B2010
90041-05455
90041-79357

LA310A-GBGF (2013)
